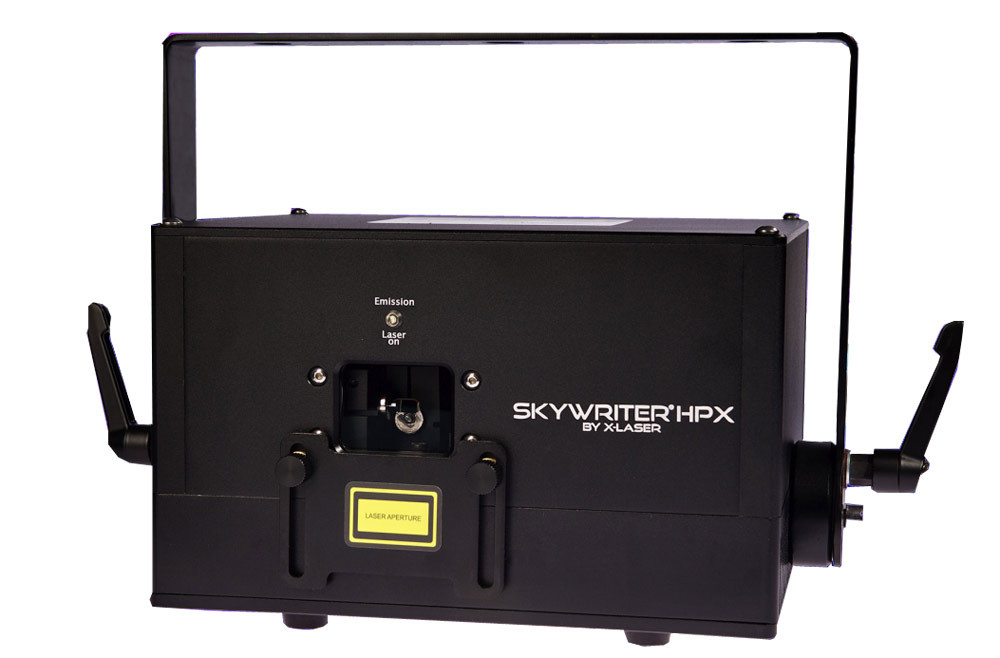

X-Laser Skywriter HPX MF-5 Touring-Grade Aerial Graphics Laser w/ Mercury DMX Control

Combining that much power with its precision 30K graphics scanners, the Skywriter HPX MF-5 can also project enormous, vivid graphics hundreds of feet away. You can produce the exact effect you want thanks to integratedX-Laser Mercury control, so you can completely control the fixture from a pro lighting console (DMX, sACN, Art-Net). Itsadvanced color mixing technology gets you the exact colors needed for your setting. Efficient, robust and compact, the Skywriter HPX MF-5 can elevate your lighting rigs andelevate your business. (The Skywriter HPX M-5 is also available with X-Laser Mercury control only).

NOTE: The Skywriter HPX MF-5 is a 'build to order' system and often required 1 to 2 weeks lead time.

Features:
• 5W balanced RGB laser engine
• Integrated with X-Laser's Mercury laser control system with the master and basic profiles including:
450+ gobos
11 digital prisms
50 color macros
60 motion macros with variable speed and amplitude
• 5-pin DMX
• Large, matte-finish LCD interface
• Art-Net connectivity (upgradable to our etherStop system)
• Integrated with Pangolin FB4 control
• Ideal for medium-to-large venues, touring acts and production companies
• Sealed optical deck for resistance to water, wind and dust
• Series of external fans keep the components and diodes cool and running efficiently

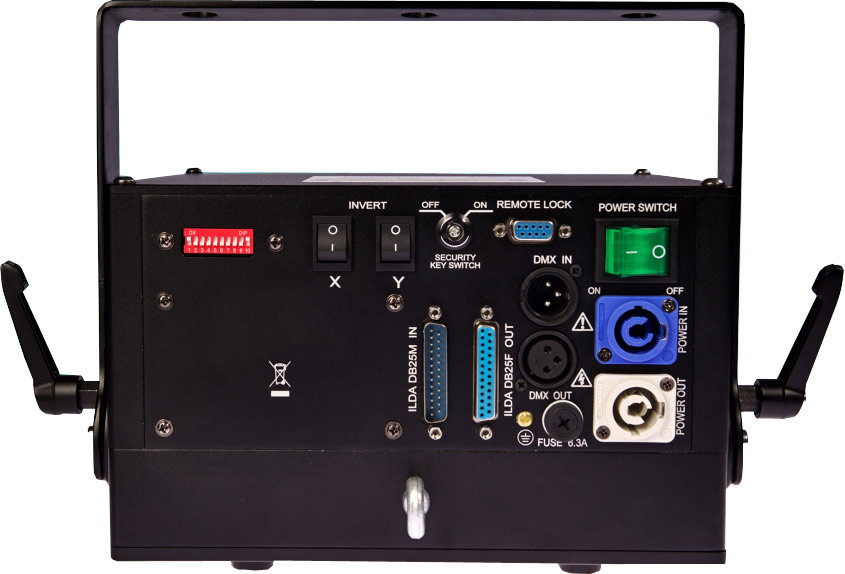

• Easily invert X-Axis or Y-Axis effects with the flick of a switch
• Precise and crisp low-divergence beams create beautiful animated and text effects
• Produces more than 1,000 colors with additive analog RGB color mixing
• Double quality checked in a 26-point inspection prior to shipping
• X-Laser no-hassle 2-year warranty
• Class 4 High-Powered Laser; FDA Variance required. Free EZ Variance Kit available separately
• Plastic molded road case with custom foam sold separately

Direct compatibility with lighting consoles
With X-Laser's Mercury laser projector control system, the Skywriter HPX MF-5 functions just like any other moving-head fixture when connected to a pro console.

Big power, big value
The Skywriter HPX MF-5 offers huge power at an impressive price point, making 5W RGB laser effects more accessible than ever.

Engineered for efficiency
Six robust external cooling fans and 18 heat-sinking fins keep the Skywriter HPX MF-5 cool, so your laser show can go on, and on, and on

Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.

Professional, precision graphics
With ILDA-standard 30K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.

Certified to the world's toughest quality standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.

Specifications:
Control: X-Laser Mercury and Pangolin FB4 control integrated
Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30K PPS at 8-degrees
Settings interface: Mercury andFB4 LCDs
Color modulation: Analog, 1,000+ colors
Laser energy:1W raw (800mW R, 1.7W G, 2.6W B)
Beam source: Direct-injection diode modules
Wavelengths: 650nm red, 532nm green, 445nm blue
Physical: 15"L x 9.25"W x 10.25"H; 16.8lbs (381mm x 235mm x 260mm, 7.62kg)
Housing type: Anodized 6061 aluminum
Power draw: 80W typical, 100W peak
Power: 150W PowerCON compatible in/out, 5x20mm 250V 6.3A fast-acting fuse
Beam divergence: 1-2 mRad
Cooling: External heat sink and fan system
FDA/IEC hazard class: Class 4
FDA/CDRH:21CFR1040.10 and 1040.11(c)
Canadian safety: CSA C.22.2 No. 60950-1
EU safety: EN 60825-1, EN 60950
