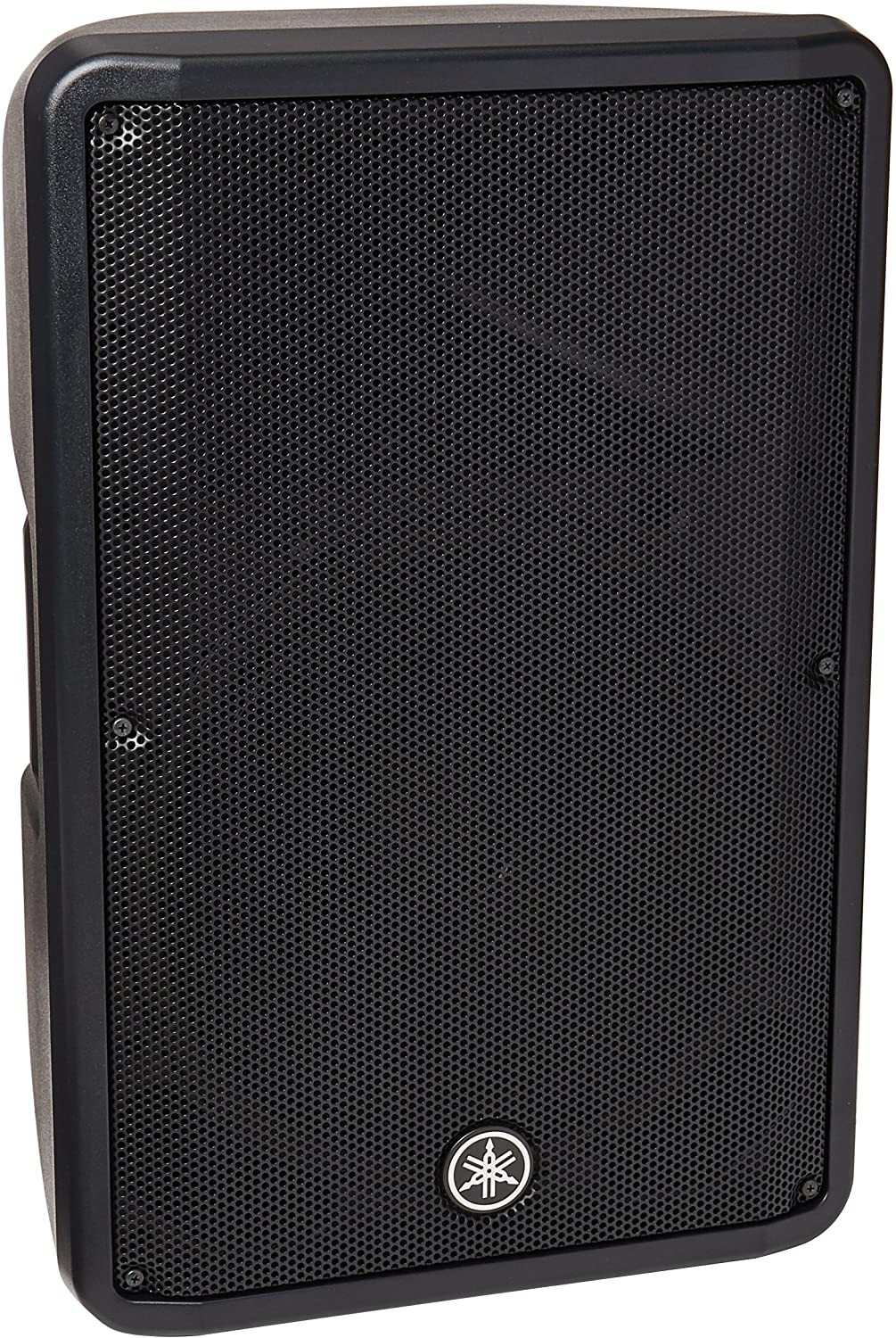

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.
Features:
• Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
• HF Protection and Highly Responsive LF Unit for Reliable Performance at Any Output Level
• Rugged, Highly Portable Enclosure Design
• Simple Connectivity
• Smart Enclosure Design for Floor Monitoring
• Rigging Points for Installation Applications
• Functional Speaker Cover
Specifications:
Speaker type: 2-way Speaker, Bass-reflex Type
Frequency range (-10dB): 46 Hz - 20 kHz
Nominal coverage: 90 x 60
Low Frequency Component: 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
High Frequency Component: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover: 2.0 kHz
Power rating: 250W; Program 500W; Peak 1000W
Nominal impedance: 8O
SPL: Sensitivity (1W; 1m on axis) 96dB SPL; Peak (Calculated) 126 dB SPL
I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material: Plastic
Finish: Black
Handle: Side x 2
Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket: F35 mm Bottom x 1
