The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

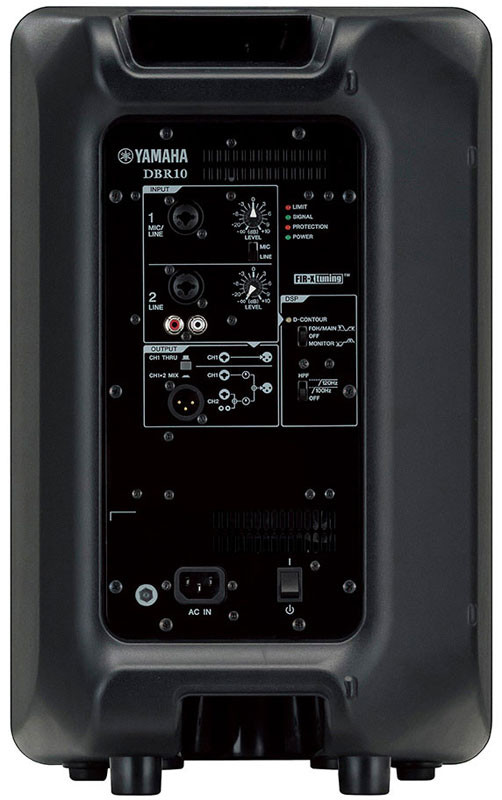

Easy to Use Onboard 2-Channel MixerDBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2 or CH1 THRU to pass the signal from CH1 only.

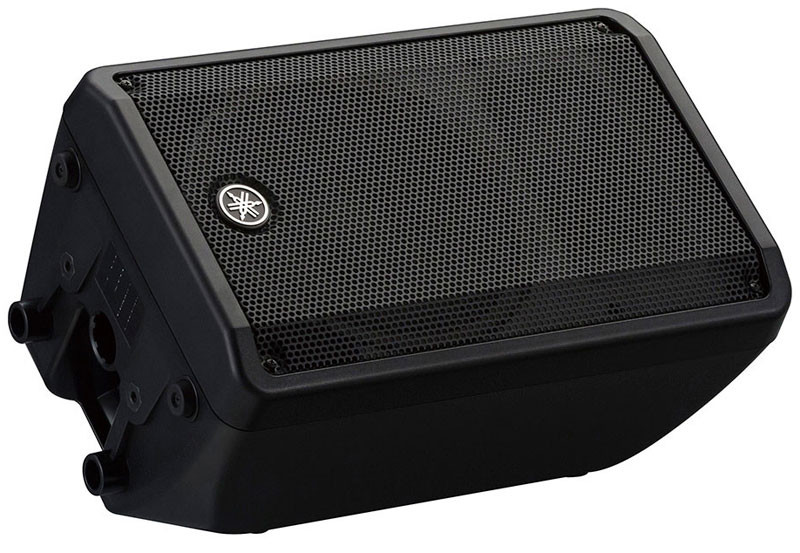

Smart Enclosure for Floor MonitoringDBR Series speakers feature an optimized 50-degree wedge angle for floor monitoring.
Custom Designed TransducerThe high power output woofers deliver well-defined powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable CabinetDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grill bolsters cabinet durability and protects the internal components while a newly designed ergonomic handle provides effortless transportation and system setup.
Features• Power Rating: 700W
• Maximum SPL: 129dB
• Frequency Range: 55Hz-20kHz
• LF: 10" cone
• HF: 1" diaphragm, 1" throat
• Coverage Angle: H90-degrees x V60-degrees
