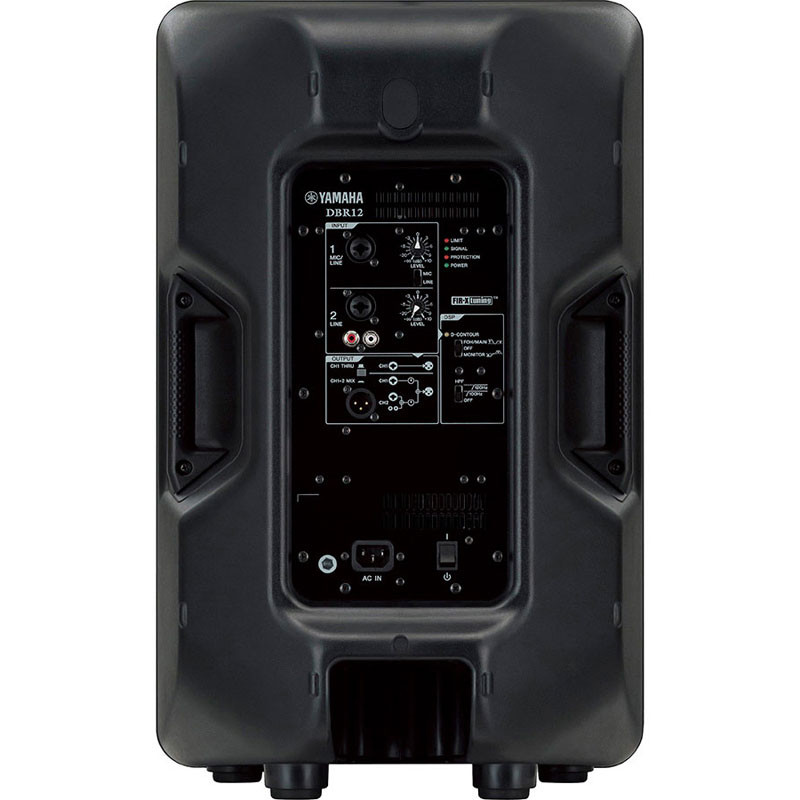

DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2 or CH1 THRU to pass the signal from CH1 only.
Smart Enclosure for Floor Monitoring

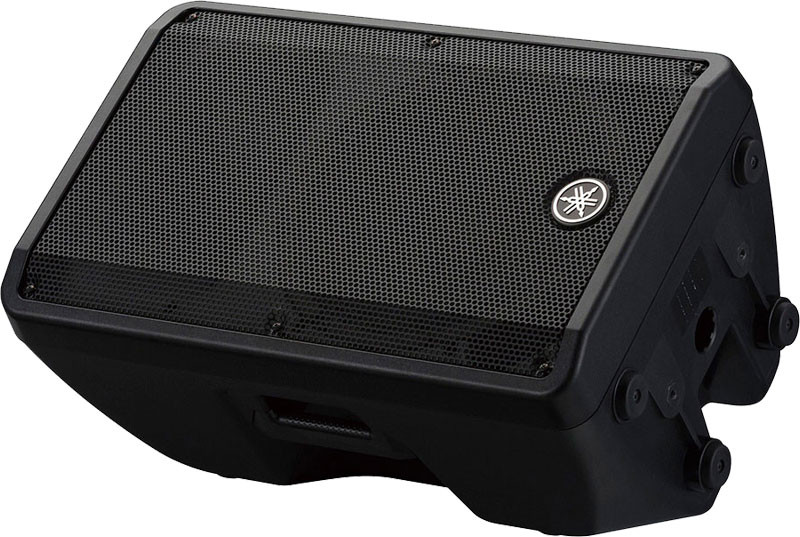

DBR Series speakers feature an optimized 50-degree wedge angle for floor monitoring.
Custom Designed Transducer
The high power output woofers deliver well-defined powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grill bolsters cabinet durability and protects the internal components while a newly designed ergonomic handle provides effortless transportation and system setup.
• Power Rating: 1000W
• Maximum SPL: 131dB
• Frequency Range: 52Hz-20kHz
• LF: 12" cone
• HF: 1.4" diaphragm, 1" throat
• Coverage Angle: H90-degrees x V60-degrees
