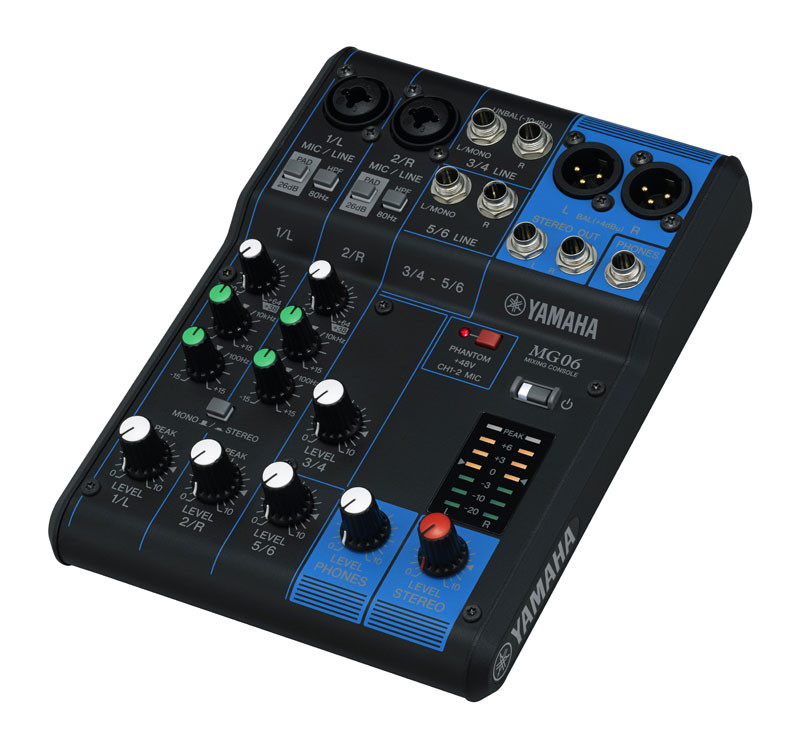

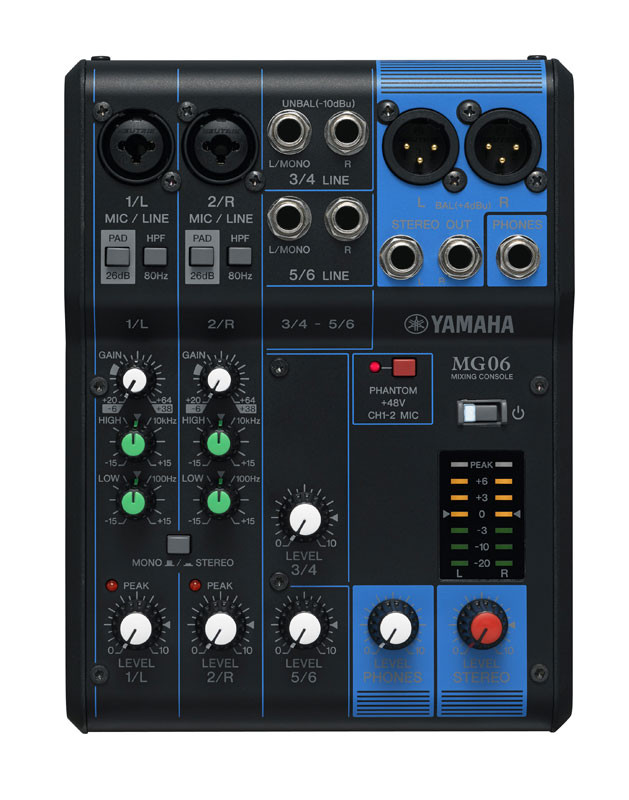

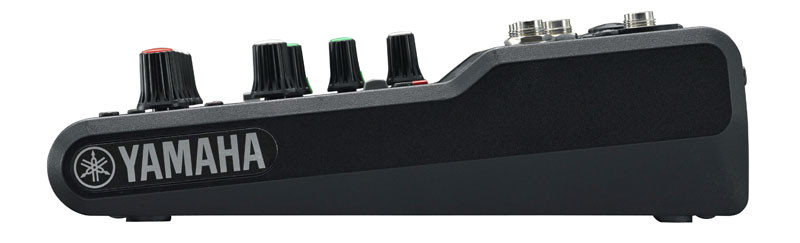

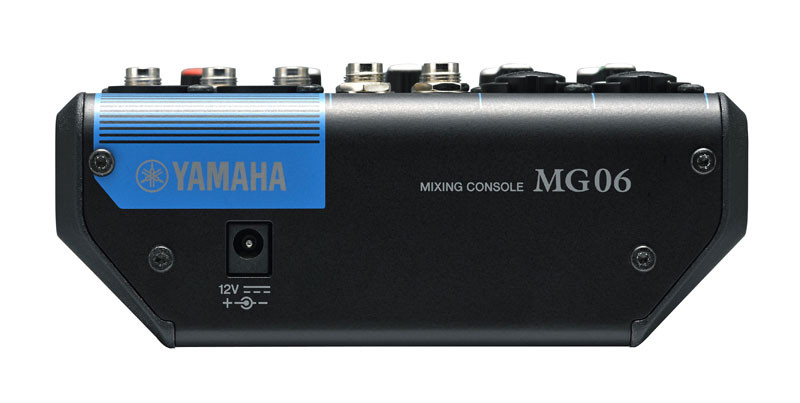

Yamaha MG06 6-Input Stereo Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

yamaha mg06
yamaha mg06 Yamaha MG06 6-Input Stereo Mixer Yamaha MG06 6-Input Stereo Mixer Yamaha MG06 6-Input Stereo Mixer
Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

• 6-Channel Mixing Console
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• "D-PRE" mic preamps with an inverted Darlington circuit
• XLR balanced outputs
• PAD switch on mono inputs
• +48V phantom power
• Metal chassis
• Dimensions(WHD): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
• Net Weight: 0.9 kg (1.98 lbs.)

Yamaha MG06 Specs
• Phantom Power: +48V
• Input Channels
Mono(MIC/LINE): 2
Stereo(LINE): 2
• Output Channels
• Bus: Stereo: 1
• Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
EQ HIGH: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter (PEAK, +6, +3, 0, -3, -10, -20 dB)

• Total harmonic distortion: 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
• Frequency response: +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk: -88 dB
• Power requirements: PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
• Power consumption: 12 W
• Dimensions: W 149 mm (5.9"), H 62 mm (2.4"),D 202 mm (7.9")
• Net weight0.9 kg (1.98 lbs.)
• Accessories: Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications
• Optional Accessory: Mic Stand Adaptor BMS-10A
• Operating Temperature: 0 to +40C

Additional Information

Product ConditionNew - On Clearance
