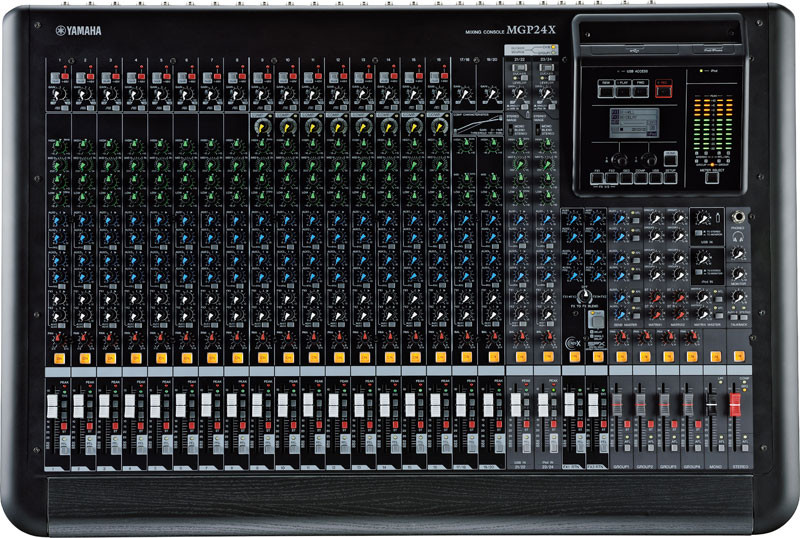

Not just for live bands and DJ's, the MGP24X mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.
VIDEO
• 16 Mic Inputs with 48V Phantom Power and HPF per Channel
• 24 Line Inputs (16 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out
• 1 Mono out
Mixing Capability • Mixing channels: 24 Line Inputs (16 mono and 4 stereo)
• GROUP: 4 GROUP Buses + ST Bus
• AUX: 6 AUX Sends + 2 FX Sends
• MATRIX: 1 Matrix out
• On-board processors
- FX1:REV-X(8 PROGRAM, PARAMETER control)
- FX2:SPX(16 PROGRAM, PARAMETER control)
I/O • Mic inputs: MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
• Phantom power: 48V phantom power per channel
• Line inputs: LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
• Digital I/OUSB Device, iPod / iPhone
Mackie MGP24X General Specs • Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
• Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
• Hum & noise level
- Equivalent input noise-128 dBu Equivalent Input Noise
- Residual output noise: -94 dBu Residual Output Noise
• Crosstalk: -74dB @ 1kHz
• Power requirements: 100-240V 50Hz/60Hz
• Power consumption: 86W max
• Dimensions: W819mm (32.2"), H169mm (6.7"), D565mm (22.2")
• Net weight: 15.5kg (34.2lb)
