Originally distributed by Elation Lighting (ADJ's sister company), the ADJ Compu Show is a powerful DMX control software to help lighting designers program sophisticated lightshow at their fingertips directly from their computer. Compu Show comes with many great features making lighting design quicker and easier than before. This model includes PC DMX Control Software with 2 universes of DMX control plus 2 universes of Art-Net control.

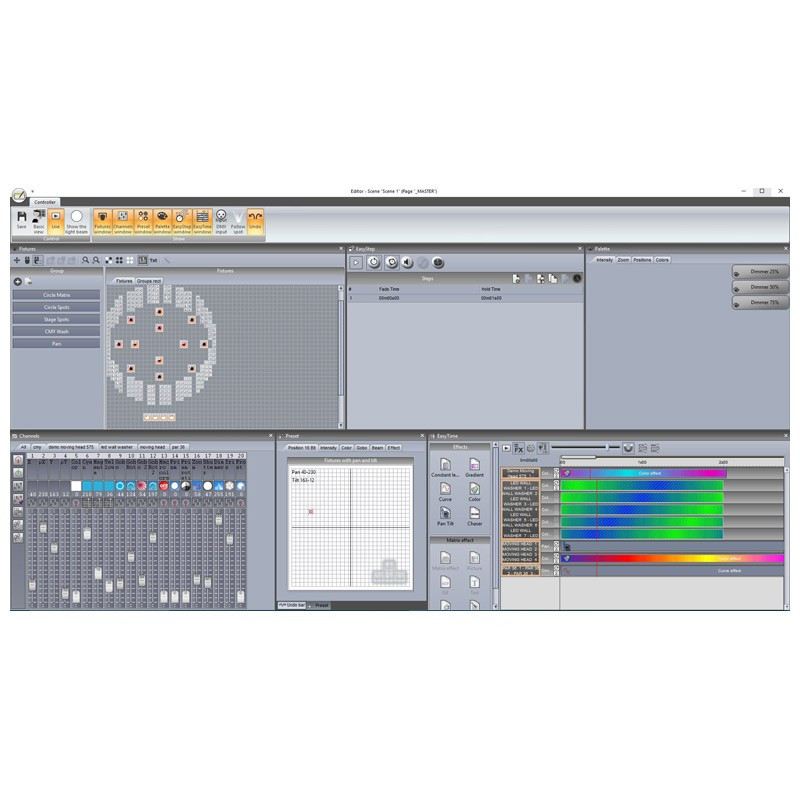

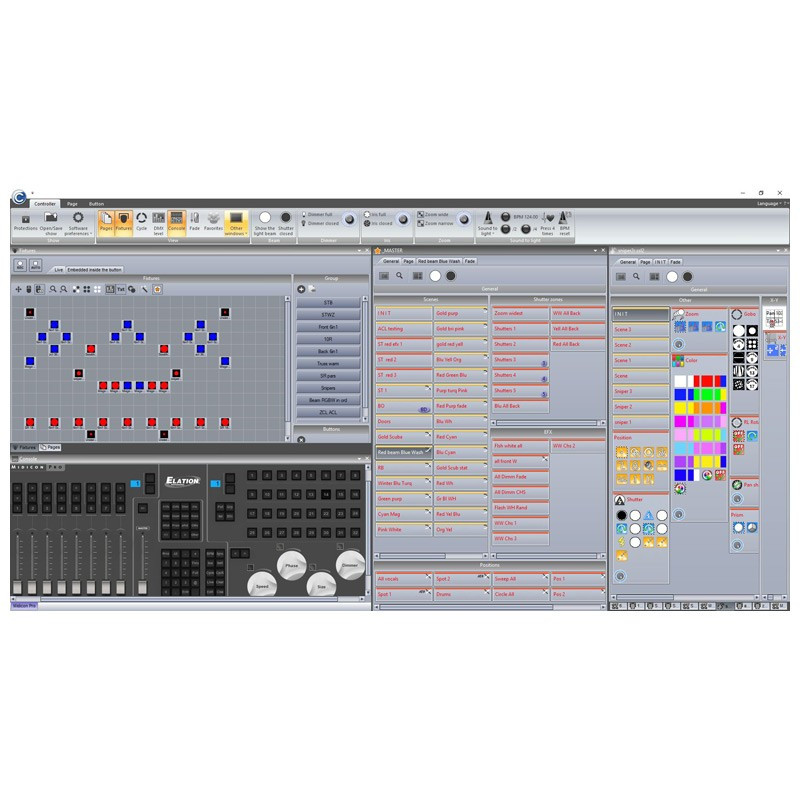

For instance, the EasyTime editor is based on a timeline. Thanks to this tool, it becomes very easy to build your show. Various effects, either static or dynamic (matrix effects, shapes...) are available and can be dragged to the timeline. Whether you are controlling moving heads or LED strips, this is the perfect tool. Palettes are also now available for positions, colors, beams or any other channel type that you wish to have palettes for. If a scene has been created using palettes, it can quickly be updated by editing the relevant palettes. Fixtures can be grouped, allowing for several fixtures to be controlled simultaneously on the fly. New CLEAR ALL and AUTO RELEASE functions allow for live edits to be quickly reset. This toolbar offers master control of your fixtures light beam. The toolbar gives you control of the dimmer, zoom, shutter, and the iris. The new cycle, or cue list, editor has a timeline built in. You can drag and drop buttons on the timeline to easily program cycles.
Compu Show also comes standard with powerful 3D Visualization software, 3D Easy View, which allows you to easily create a scenario of your imagination using Studio 3D object formatting. Basic Objects and truss structures are included to help in getting started right away, and lighting fixtures are instantly inputted as soon as you create a page in the Compu Show software.

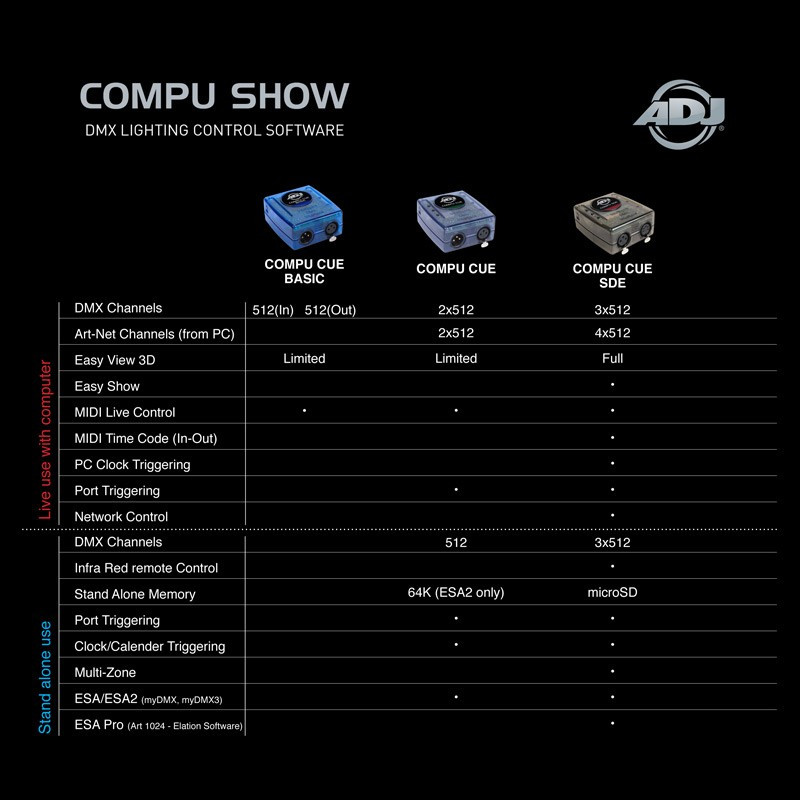

The Compu Cue interface allows for limited 3D visualization. If more advanced features are needed (ie. 3D video with positioning, 2D set up views, report management printing which allow you to print out wire frame CAD drawings which include position and DMX channel charts, then you may want to step up to the
Compu SDE interface instead.
VIDEO

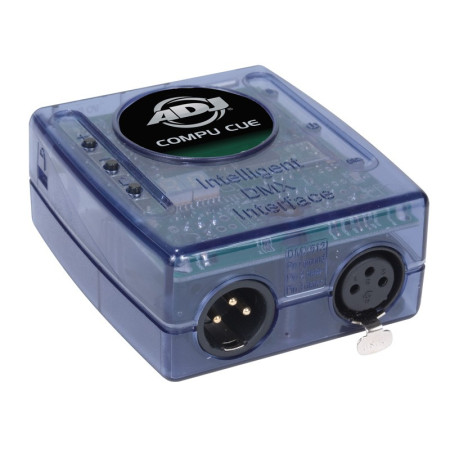

Compu Cue, Live Use with Computer: • USB connection to PC
• Smartphone & tablet control (Via Easy Remote)
• 2 DMX Universes Out (512 Channels each universe)
• 2 Artnet Universes Out (512 Channels each universe)
• Limited 3D Visualization
• MIDI live control (Midicon 2 or Midicon Pro)
• Port triggering
• 512 Stand alone channels (64k total memory)
System Requirements: • Windows XP / VISTA / 7 / 8 / 10, (32-bit or 64-bit Compatible)
• Laptop or Desktop Computer with 2.0 USB Port
• 1280 x 800 Screen Resolution
• 1 GB of RAM for Storage
• 1 GHz (Single or Dual Processor System)
• 256 MB RAM Video Card for 3D Visualizer
• Touch Screen Ready
