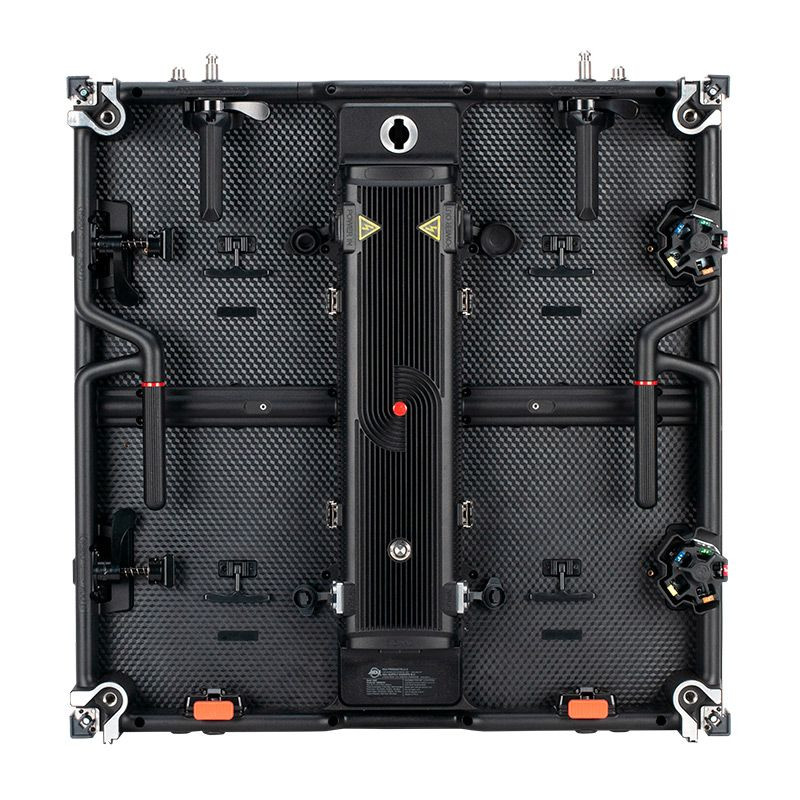

The VS3IP has four individual mini modules and is rear serviceable. The VS3IPFC8 flight case holds 8 VS3IP panels. The VS3IPRB1 single panel, multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is ETL approved.
The VS3IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
VIDEO
VIDEO
SPECIFICATIONS:
• Pixel Pitch: 3.84mm (0.15")
• LED Configuration: 3-in-1 SMD1921 LED
• Pixel Density: 150x150 per panel; 67816 per square meter
• Size: 22.7" x 22.7" x 3.00" / 576mm x 576mm x 75mm
• Module Quantity: 4
• Weight: 19.84 lbs. / 9kg.
FEATURES:

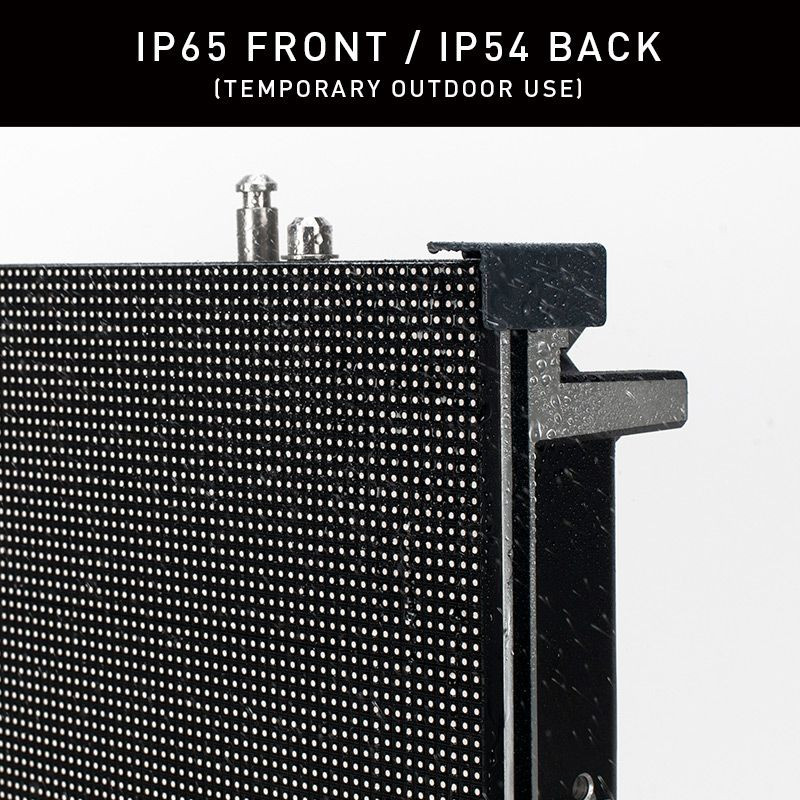

• IP65 Front / IP54 Back (Temporary outdoor use)

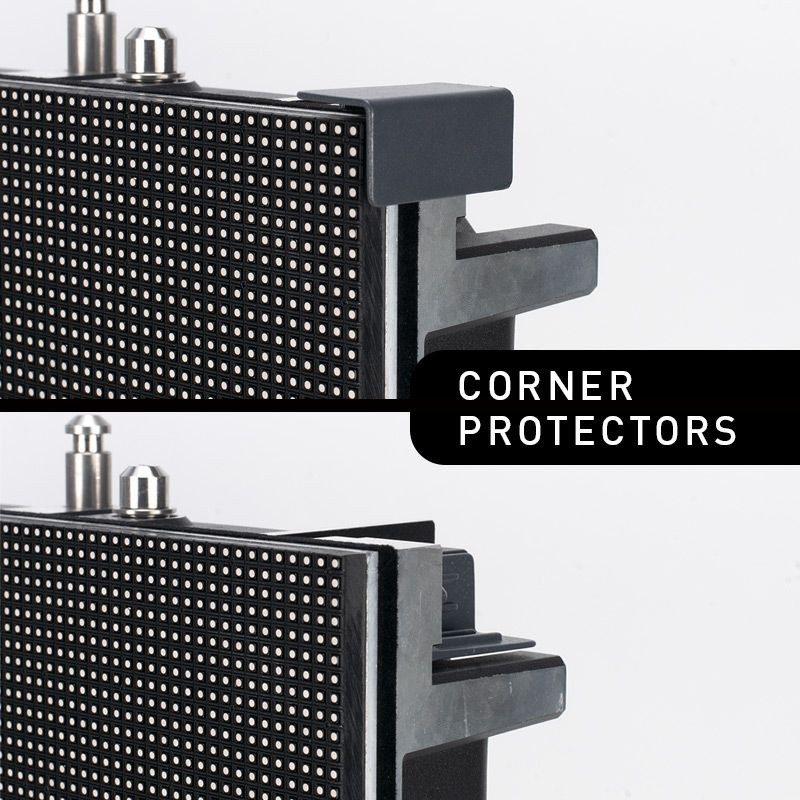

• Corner Protectors to protect the corners of the VS3IP
during transport, set-up and teardown

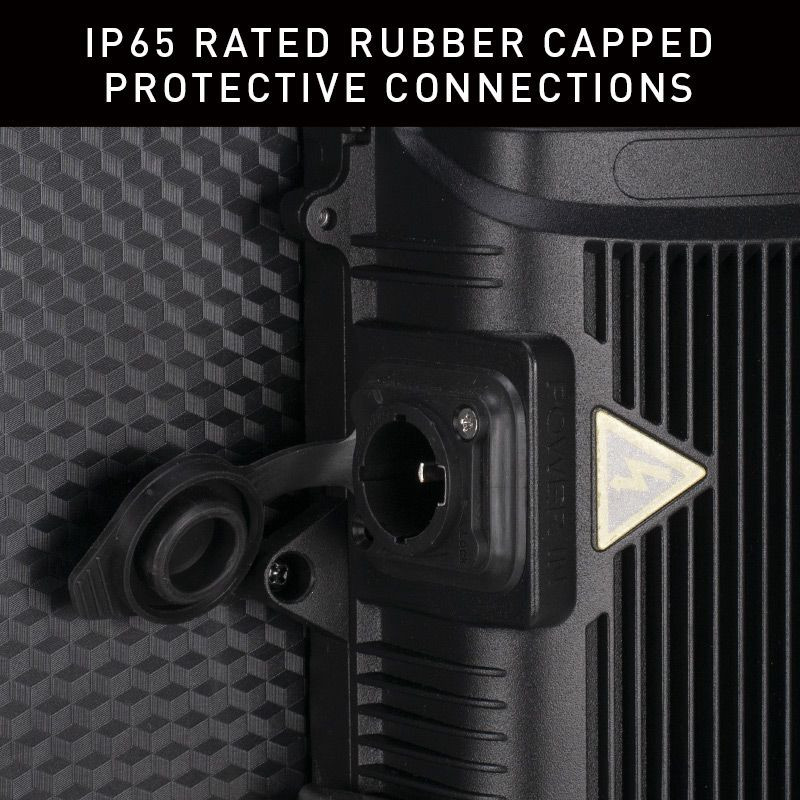

• IP65 rated rubber capped protective connections
• 4 easy to replace video modules on each panel
• Rear carry handles

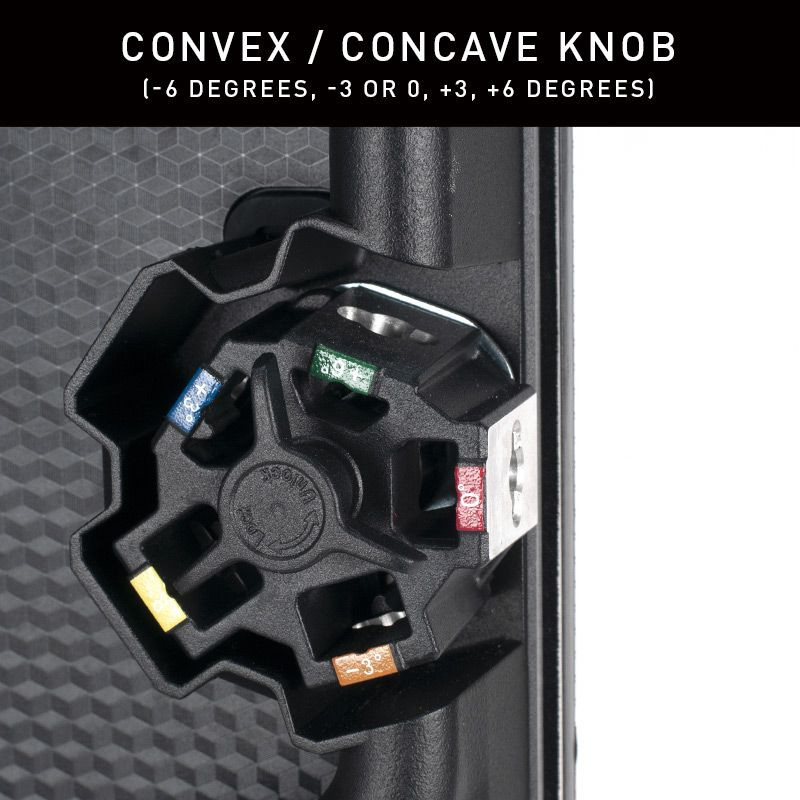

• Curve panels in convex or concave -6, -3 degrees or 0,
+3, +6 degrees
• Quick lock system to connect panels together
• Quick release power supply / receiving card module
• Novastar A5S receiving card
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 4500 NITS
• View Angle: Horizontal 160/Vertical 140 @ 9.75 ft. (3m)
• Gray Scale: =14-bit
• Display Color: 256
• Brightness Adjustment: 0100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100240V 50-60Hz
• Max. Power Consumption: 210W/per panel
• Ave. Power Consumption: 84W/per panel
• IP65 Rated Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/15
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP65 Front / IP54 Back
• Out of Control Rate: <0.02%
OPTIONAL ACCESSORIES:
• VS3IPFC8 (VS3134): Flight Case Fits 8 VS3IP Panels
• VS3IPRB1 (VS3111): Rigging Bar Hang up to 20 VS3IP Video Panels vertically or ground stack up to 8
• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
• VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software
CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Power Locking Link Cables
• Power Locking Main Power Cables
Certifications:
• cETLus Approved (Control #5015975)
• CE Approved
• Fcc Approved
