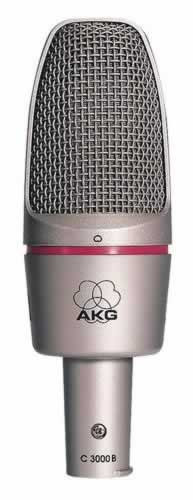

For the new C 3000 B, AKG designed a special 1-inch large-diaphragm transducer that closely approximates the vibration performance of top-class studio microphones.
Due to its surface area and special capsule tuning, the C 3000 B large-diaphragm transducer produces an exceptionally pleasing, smooth sound. Unlike in the C 3000, the switchable 10-dB preattenuation pad immediately follows the transducer in the signal path, thus increasing the C 3000 B's SPL capability by a true 10 dB. Loud sound sources are therefore no problem. An acoustically optimized cardioid polar pattern makes the C 3000 B an excellent choice for both recording and live sound applications where high gain before feedback is paramount.
TECHNICAL SPECIFICATIONS:• Polar pattern: cardioid
• Frequency range: 20 to 20,000 Hz
• Sensitivity: 25 mV/Pa (-32 dBV)
Max. SPL 140/150 dB (k=0,5%)
• Equivalent noise level: (CCIR 468-3) 25 dB
• Equivalent noise level: 14 dB-A
• Signal/noise ratio: (A-weighted) 80 dB
• Preattenuation pad: 10 dB, switchable
• Bass: filter 6 dB/octave below 500 Hz
• Impedance: 200 ohms
• Recommended load impedance: >1000 ohms
• Supply voltage: 9 to 52 V phantom power to DIN 45596
• Current consumption: <2 mA
• Connector: 3-pin XLR
• Finish: silver gray
• Dimensions: 53 dia. x 162 mm / 2.1 dia. x 6.4 in.
• Net weight: 320 g / 11.3 oz.
• Shipping weight: 950 g / 2.1 lbs.
