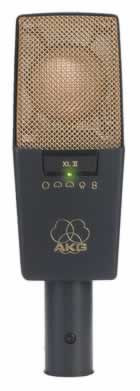

AKG C414BXLII Stage & Studio Condenser Mic

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

akg c414bxlii
Images may show accessories or configurations not packaged with this item.
A classic microphone with a distinctive timbre especially designed for recording of solo vocals and solo instruments.

A classic microphone with a distinctive timbre especially designed for recording of solo vocals and solo instruments.

With the introduction of the NeXt Generation C 414 B-XL models, AKG sets new benchmarks for useful features, improved technical specifications, ease of use and available accessories. All of these improvements are answers to requests from ever-demanding recording studios, broadcast stations and concert engineers, but with the basic sonic character of the legendary C 414 unaltered.

Additional features:
• High sound pressure level capability and wide dynamic range
• Completely immune to electrostatic and electromagnetic interference from digital gear, computer monitors, etc. thanks to solid metal housing and transformerless output stage
• Three switchable bass cut filters and three pre-attenuation pads with LEDs for quick visual indication
• All switchable components operate in low impedance circuits for ultra-high reliability even in extremely humid conditions
• Optional R 414 remote control unit (under development) offers full control of all switchable parameters via standard microphone cable and • 3-pin XLR-type connectors
• Also available in stereo pair C 414 B-XL II/ST.

• Type:
1-inch large-diaphragm pressure gradient microphone
• Polar pattern: Omnidirectional, wide cardioid, cardioid, hypercardioid, figure eight
• Frequency range:
20 to 20,000 Hz (see frequency response traces)
• Sensitivity:
23 mV/Pa (-33 dBV) 0.5 dB
• Max. SPL:
200/400/800/1600 Pa = 140/146/152/158 dB SPL (0/-6/-12/-18 dB) (for 0.5% THD)
• Equivalent noise level (CCIR 468-2)
20 dB (0 dB preattenuation)
• Equivalent noise level
6 dB-A (0 dB preattenuation) (DIN 45 412, A-weighted)
• Signal/noise ratio (A-weighted): 88 dB
• Preattenuation pad: -6 dB, -12 dB, -18 dB, switchable
• Bass cut filter slope: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
• Impedance: <=200 ohms
• Recommended load impedance:
>= 2,200 ohms
• Supply voltage: 48 V phantom power to DIN/IEC
• Current consumption: approximately 4.5 mA
• Dynamic range: 134 dB minimum

• Temperature range: -10 C to +60 C (14 F to 140 F)
• Relative humidity: 95% (+20 C/68 F), 85% (+60 C/140 F)
• Connector: 3-pin XLR to IEC
• Dimensions: 50 x 38 x 160 mm (2.0 x 1.5 x 6.3 in.)
• Net weight: 300 g (10.6 oz.)
