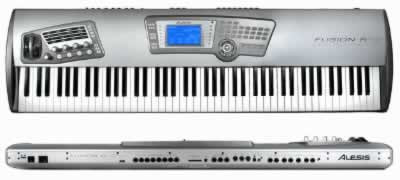

Alesis FUSION8HD 88 Note Keyboard Workstation

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

alesis fusion8hd
The Fusion Workstations offer multiple forms of synthesis (virtual analog, sample playback, FM, and physical modeling) along with 8 tracks of 24-bit audio recording.

• Fusion Engine Synthesis - Sample Playback, Virtual Analog, FM, Physical Modeling
• Polyphony: Dynamic processor allocation. Up to 180 voices of sample
• Multitimbral Capacity: Mix: 8 internal/16 external, Song: 16 internal/16 external
• Waveforms- tones 120 MB (when converted to 16-bit linear format)
• Sounds:
Preset Instruments: 800 Programs
Preset Drumkits : 64 Drumkits
GM: 128 Programs, plus 8 Drum Kits
User: 40GB of whatever you want
• Mixes: 200 Mixes
• Filters: 13 types
• Effects- types and amt
• 20 Reverbs, 10 Chorus, 50 Insert Effects, 4 Band EQ (low shelf, low, mid, high mid, Hi shelve

• Multi-samples (waveform capacity):
128 samples per Multisample
• Sampling sources:
Analog Input L/R, Stereo Output (resampling)
• A/D Conversion: 24 -bit, 64 X oversampling
• D/A Conversion: 24 -bit, 128 X oversampling
• Sampling Frequencies: 44.1 kHz
• Memory: Memory 64MB installed, optional expansion to 192MB
• Sampling Time: 11 Min, 53 Sec (with onboard memory), 37 Min, 15 Sec (with full expansion memory)
• Sample Formats: Alesis format, wav

• Note Capacity: Unlimited / based on HD limitations
• Note Resolution: 480 ppq
• Tracks: 32 Tracks
• Songs: 40GB of whatever you want
• Arpeggio
Preset: Preset 1000
User:User Unlimited
• Sequence Format: SMF
• Controllers:
Pitch Bend Wheel, Modulation Wheel, Aftertouch, Assignable Control Knobs (4), Assignable Trigger Buttons (4), Assignable Switches (2)
• Display: 240 x 128 backlit LCD
• External Storage: Compact Flash Type I and Type II (Flash and Microdrives), SATA HD and (by Fall 2005) CD-RW
• Connectors:
Stereo Input L-Mono/R (Standard 1/4 Jack), Stereo Headphone Output (Standard 1/4 Jack),Stereo Main Output L/R (Standard 1/4 Jack), Stereo Aux Output L/R (Standard 1/4 Jack), S/PDIF Output (Coax/Optical), ADAT Output (Optical), MIDI In/Out/Thru, Sustain Pedal, Footswitch, Expression Pedal, USB (to Host), HD Recording Inputs 1-8 (Standard 1/4 Jack), External Drive (SATA), AC Inlet
• Power Consumption: 50 W
• Dimensions:
Fusion 8HD: 51.5x14x5 in, 130.8x35.6x12.7cm
Fusion 6HD: 35.5x14x4 in, 90.2x35.6x10.2 cm
• Weight:
Fusion 8HD: 58.4 lb, 25.6 kg
Fusion 6HD: 30.4 lb, 13.8 kg
