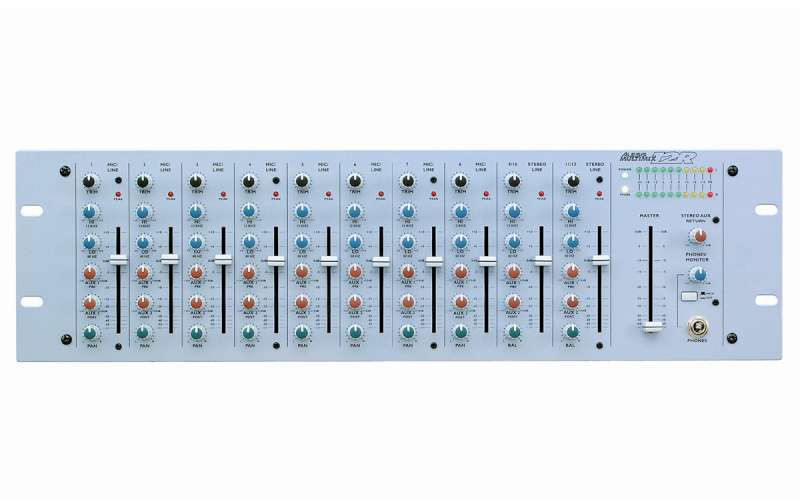

Alesis MULTIMIX 12R 12-Channel Rack PA Mixer

FEATURES:
• Ultra-affordable 12-channel mixer in a 3U rack
• 8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
• 2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
• Separate 1/4" balanced main and monitor outs, front-panel headphone out
• Pan control, peak indicator, and 60mm fader on each channel
• 2-band high/ low shelving EQ per channel
• 10-segment LED stereo meters

SPECIFICATIONS:
CONTROL
• Front-panel (top down): 8 mic/line channels and 2 stereo channels with trim, 2-band EQ (high shelving at 12kHz, low shelving at 80Hz), aux send 1 (pre-fader), aux send 2 (post-fader), pan/balance, and 60mm fader.
• Front-panel other: 60mm stereo master fader. Stereo aux return level. Headphone jack with level and master/tape switch. Stereo 10-segment LED meters. Power and phantom power LEDs.

CONNECTIONS
All 1/4" TRS except as noted:

• Mic in x 8 (XLR), line in x 12, channel insert x 8, aux send x 2, stereo aux return, stereo main out, stereo monitor out, headphone out. Stereo tape in and master out (RCA).

POWER
• 120V AC internal transformer

DIMENSIONS
• (H x W x D): 5.25" x 19" x 6.25" (134mm x 483mm x 158mm), 3U rackmount

WEIGHT
• 8lbs (3.6kg)
