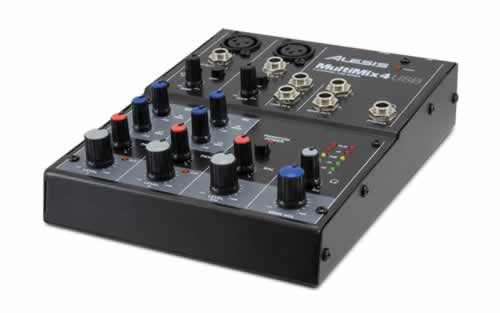

The MultiMix 4 USB is a four-channel desktop mixer with a USB digital audio interface built in. This compact mixer is perfect for using in basic computer-recording setups, video editing and production studios, and portable podcasting setups because it outputs not only line-level analog audio, but also stereo 16-bit, 44.1 kHz digital audio over USB for low-noise, easy computer connection.
The MultiMix 4 USB mixer has four input channels, all of which can accept a 1/4" line input. You can can plug XLR microphones into channels one and two, including condensers thanks to the mixer's switchable 48V-phantom power supply. You can also plug a guitar or bass directly into channel one's switchable high-impedance input. Channels one and two offer switchable high-pass filtering at 75Hz to eliminate low-frequency rumble, handling and wind noise. Each channel has an independent pan control and channels one and two provide high and low-shelving EQs. Channels one and two have independent gain trims, while channels three and four are configured as a stereo pair at the level and pan controls.The MultiMix 4 USB has a two channel, five stage, multicolor LED meter for visual monitoring the main output level. A stereo, 1/4" headphone output has its own level control.FEATURES:*Four-channel mixer with digital output*Low-noise digital 16-bit, 44.1 kHz signal on USB for easy computer interface*Four line-level inputs*Two channels of XLR inputs with gains and switchable 48V phantom power*High-impedance guitar input*Two channels of switchable high-pass filtering*Two-channel EQ on mic inputs*Multicolor LED metering*Main and headphone outputs with independent level controlsSPECIFICATIONS:• INPUTS: Line (CH 1, 2): 10 K? input impedance 5.5 mV 4.9 V RMS sensitivity for max output Mic (CH 1, 2): 600 ? input impedance balanced 700 mV RMS sensitivity for max output Line (CH 3, 4): 700 mV RMS sensitivity for max output HPF (CH 1, 2): 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB) • OUTPUTS: Line: 7 V RMS max Headphone: 0.5 W into 47 ? • SIGNAL-TO-NOISE RATIO: Line: > 92 dB (max output; JIS A-weighted) Mic: > 62 dB • DISTORTION: < 0.02% • FREQUENCY RESPONSE: Line: 20 Hz - 20 kHz ( 0.5 dB), Mic: 20 Hz - 15 kHz ( 0.5 dB) • CHANNEL EQUALIZER: Bass: 14 dB @ 80 Hz, Treble: 14 dB @ 12 kHz • CHANNEL FADER KILL: > 90 dB @ 1 kHz • CROSSTALK: > 85 dB @ 1 kHz • INTERFACE: USB1.1 or higher • POWER ADAPTER: 10 V AC, 500 mA • Weight: 1.5lb• Dimensions: 7 3/4 L x 6 W x 2"H
|New - On Clearance|
