Avante Audio Imperio 240W Power Amplifier w/ Woofers

Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.

Amplifier
• 240W Class RMS D Amplifier Module
• Switching Power Design
• LED Power / Signal / Clip Indicator
• 24-bit DSP Selectable Configurations

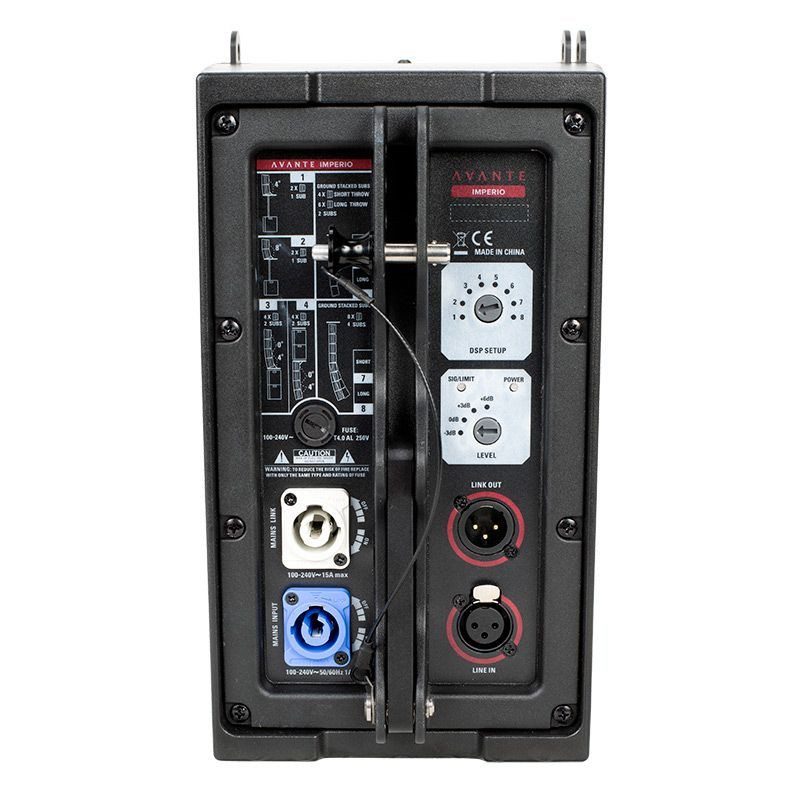

• Input: 1x 3pin XLR and Locking Power Connector
• Output: 1x 3pin XLR and Locking Power Connector
• Volume: Selectable Input Sensitivity Dial
• Power Input: 100-240V 50/60Hz

Speaker

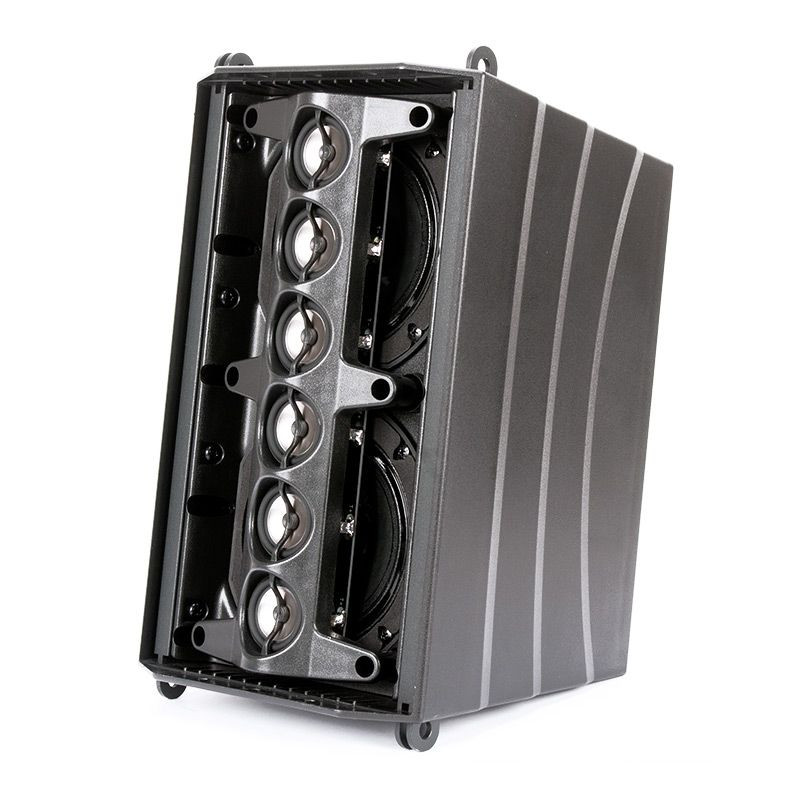

• 2x 4.75" Neodymium Woofer with 1-inch voice coil
• 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
• Type: 2-Way Active Closed Design
• Frequency Response: 150Hz 20KHz
• Impedance: 4 Ohm
• Max Output SPL: 117dB (single box measured on Axis @1m)
• Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
• Cabinet: ABS Plastic
• Grill: 1.0mm steel
• Splay Angles: 0, 4, 8, & 12-degrees
• Integrated Rigging: Yes
• Dispersion Angle: 90-degree x 15-degree
• Dimensions (HxWxD): 12.8"x7.3"x8.8" / 324x184.8x224mm
• Weight: 14 lbs. / 6.3 kg.

Included
• Imperio Flybar LG
• Imperio Flybar Small
• Imperio Pole
• Linkpin 2
