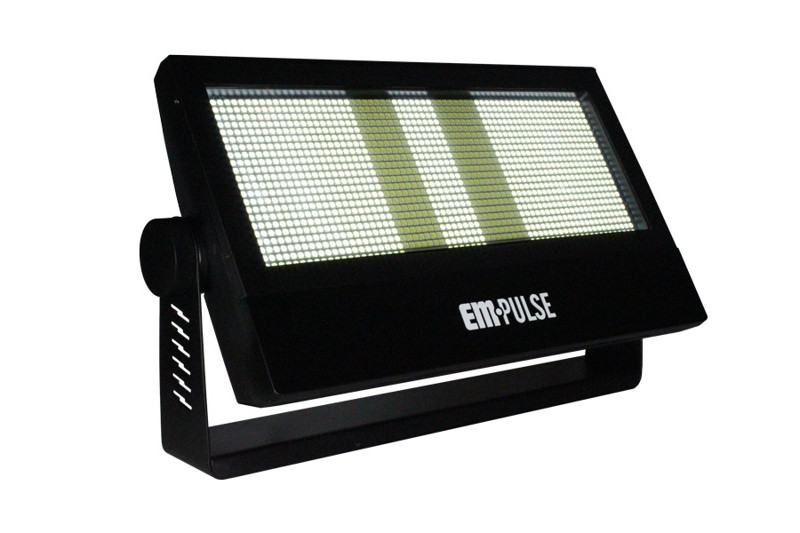

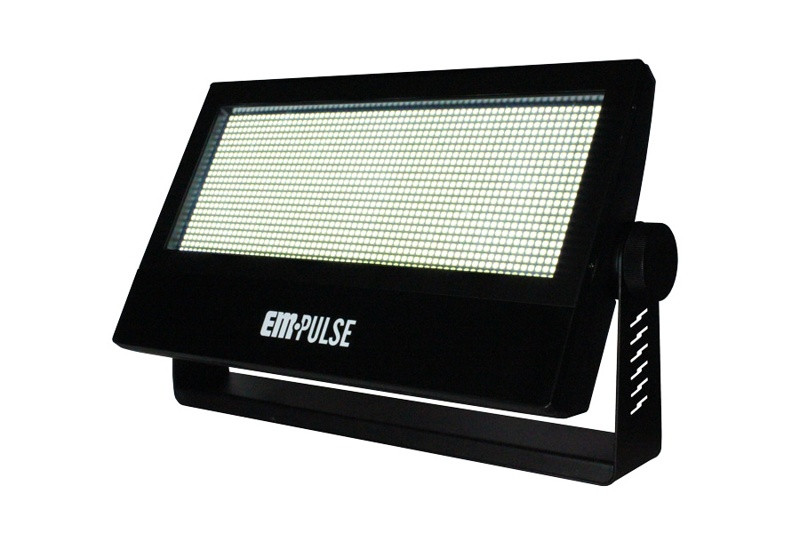

EM-Pulse' sets itself apart from the competition thanks to its EXTREMELY convincing Xenon blinder emulation. One look, and - once you can see straight again - you'll be sold. There is no equal! Add to that EM-Pulse''s up to 9 separate controllable "pixel" segments, multiple built-in macros and multiple channel modes, and you have a fixture which combines incredible versatility and visual impact with sheer, raw power.
Plus, EM-Pulse''s casing is made from cast-aluminium, with a beefy yet lightweight built-in heatsink. This makes EM-Pulse' ready for combat all night, every night, without needing any fans!
A custom 4-button LCD control panel with full pro feature set, POWERCON'-compatible power connections, quarter-turn "Omega" clamp brackets, worldwide power supply and 3 and 5-pin DMX connections make EM-Pulse' ready to report for duty on any tour, anywhere in the world!
Insist on only the best when building your tacticle aresenal. Insist on EM-Pulse'
DISCLAIMER:
The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik and powerCON are registered trademarks of Neutrik AG.
Features • Super bright output via 1,452 cool white 5050 SMD LEDs
• Intense built-in strobe programs + random strobe

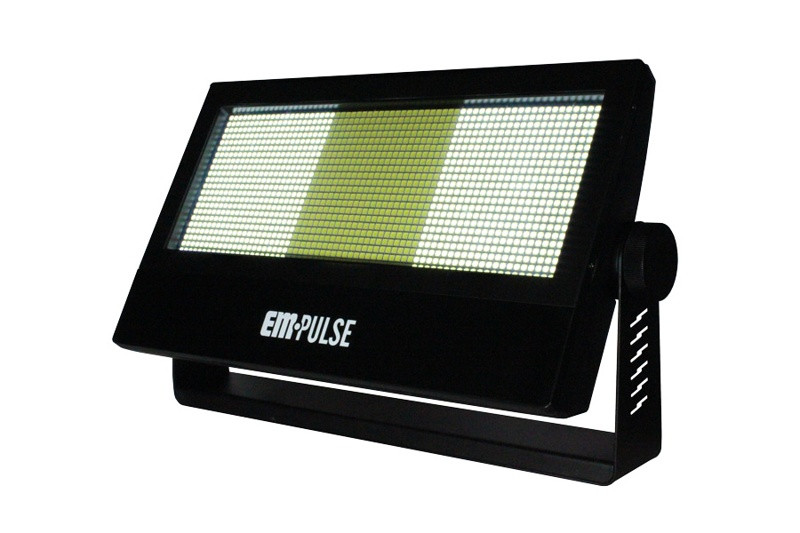

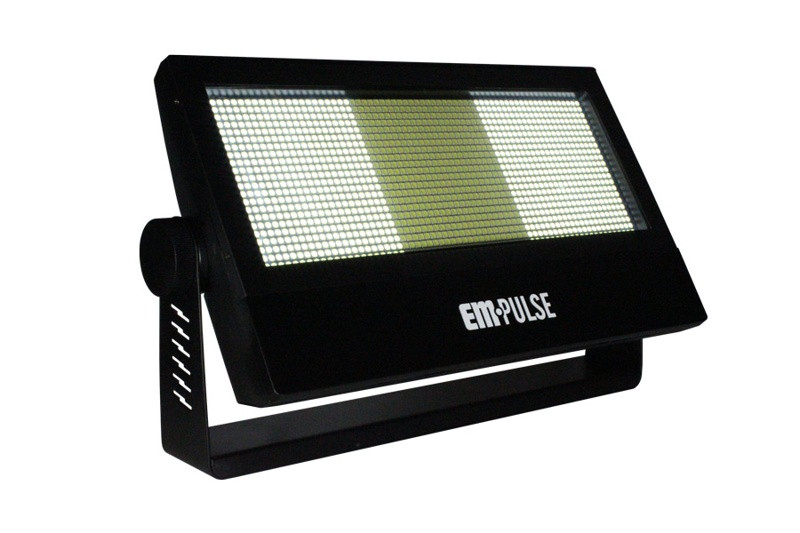

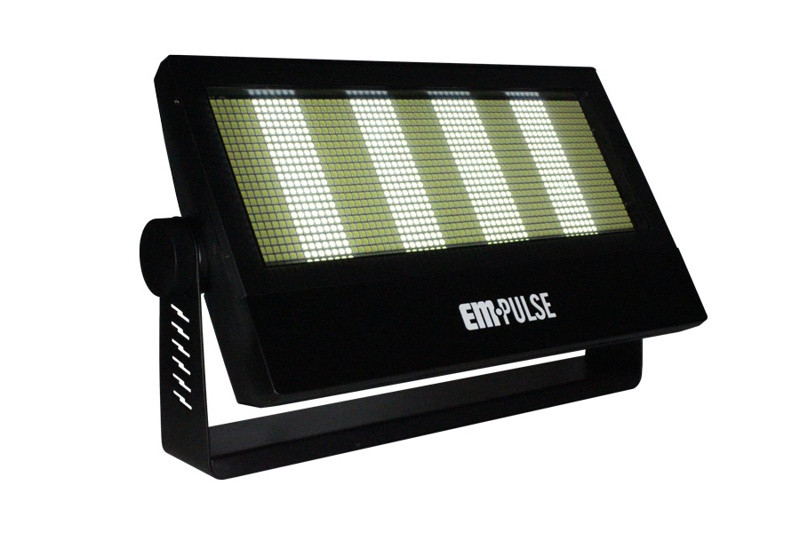

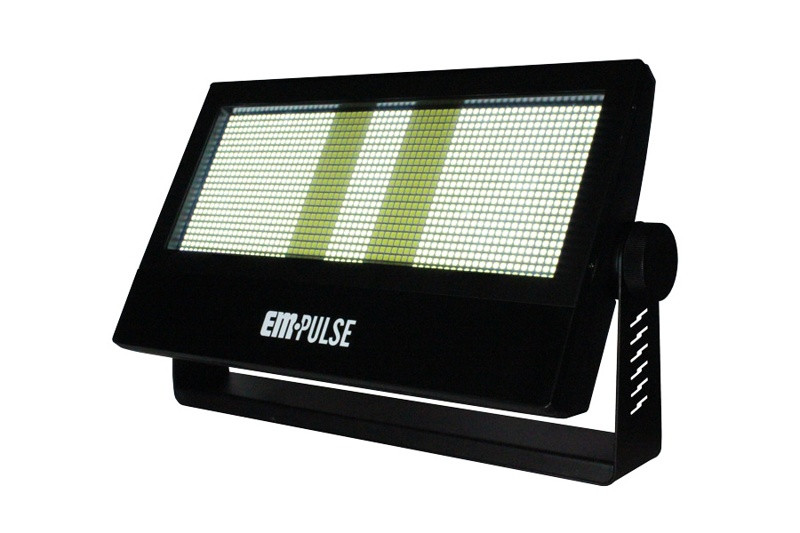

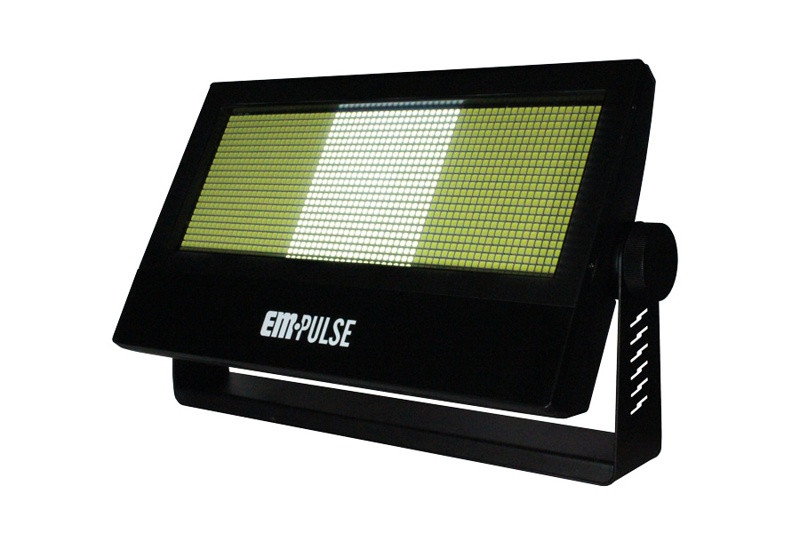

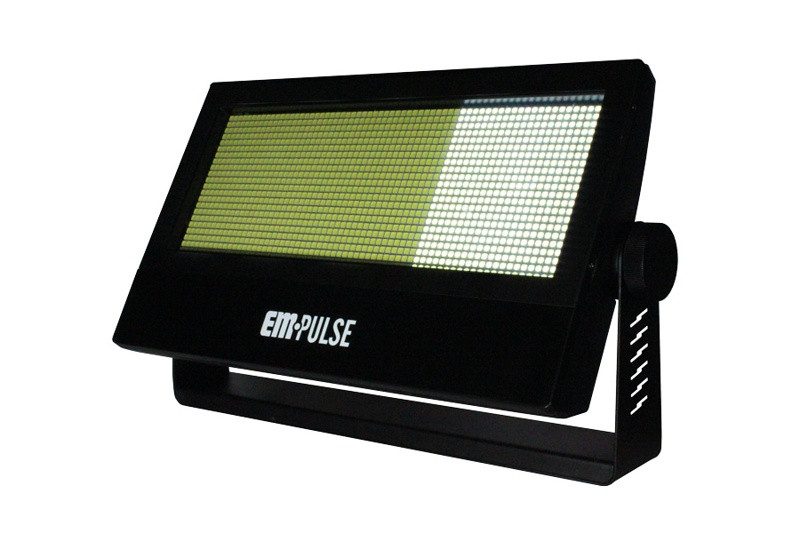

• 3/9-segment pixel modes can safely be used as wash (max 40% brightness)
• Built-in over heat protection temperature sensor to extend the lamp life
• Variable electronic strobe & 16-bit dimmer
• User adjustable flash rate of 0-30 flashes per second
• Flash duration can be set from 0-650ms in DMX mode
• 7000Hz LED scan rate
• 4-button easy to use LCD control panel menu
• Aluminum mounting bracket with locking knobs + base plate
• 3-pin & 5-pin DMX Input/Output
• PowerCon' compatible AC power In/Out connectors
Specifications Light Source
• 1,452 cool white 5050 SMD LEDs, 50,000 hrs.
Control
• Protocol: USITT DMX-512
• DMX Channels: 1/3/4/6/7/9/16
• Operating Modes: Standalone, Master/Slave, Auto, Sound Active
• Input: 3/5-pin XLR Male
• Output: 3/5-pin XLR Female
• LCD 4-button control panel
Optical
• Beam Angle: 120
Power
• Operating Voltage 110-240VAC, 50-60Hz
• Power Consumption 240W, 2.1a, pf:.98
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Dimensions
• Width: 17.8 in (45 cm), Base: 15.7 in (39.8 cm)
• Depth: 3 in (7.4 cm), Base: 6.3 in (15.8 cm)
• Height: 11.25 in (28.6 cm)
• Weight: 16.5 lbs (7.5 kg)
Warranty
• 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
