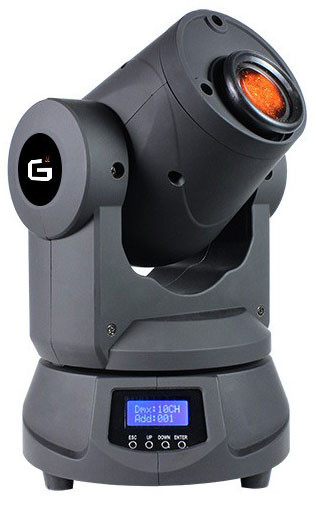

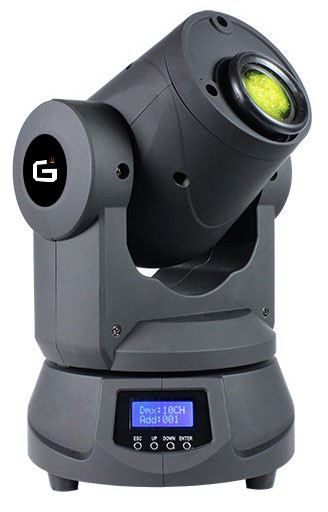

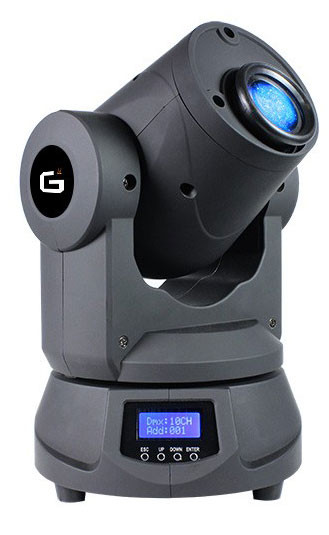

Blizzard Lighting Lil' G Compact Intelligent Moving Head

Under the hood, Lil G' has an impressively bright 40-watt LED light source with 9 optics that can produce beautiful beams with 9 gobo patterns + open, 7 color + white color wheel, bi-directional color/gobo rotation, rainbow flow effects, & gobo shake. Then, its fast and precise 540 pan and 220 tilt make it a super aerial performer in a tiny, lightweight package! !

Controlling Lil' G' is a breeze using just 11-channels of DMX, or by using its 4-button LCD control panel, which both offer complete control of every available feature including pan/tilt with fine 16-bit adjustments & speed control, ultra-smooth 16-bit dimming, strobe (1Hz-10Hz), bi-directional color wheel, bi-directional gobo wheel, auto mode, sound active mode, and fixture reset.

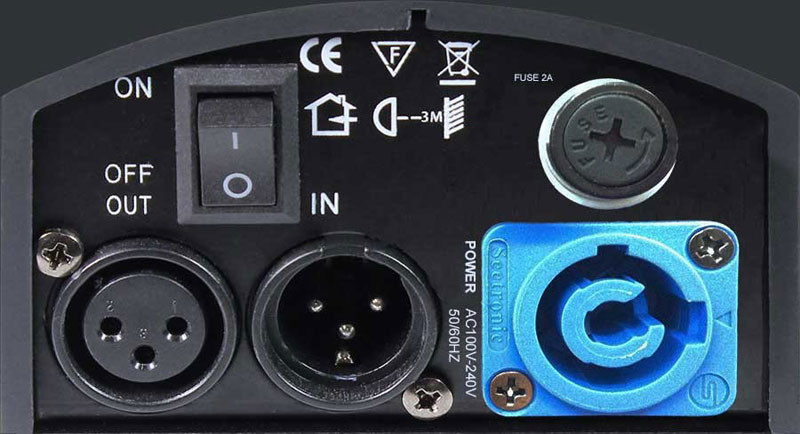

The power input connection found on the back side of Lil G' is industry standard PowerCON compatible, and DMX 3-pin In/Out jacks + a single clamp mounting bracket round out the many professional features you'll find in this intensively engineered, incredible mini moving head effect fixture!

Features
• Ultra-bright 40-watt white LED source
• Pan: 540/ Tilt: 220 (8-16 Bit Resolution)
• 9 beam angle
• 7 color + white color wheel with rainbow effect
• 9 fixed gobos + open w/bi-directional rotation & shake
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Ultra-smooth 16-bit dimming system
• Defeatable pan/tilt correction with trim adjustment
• Intelligent fan cooling system with temperature auto detect
• Easy-to-use 4-button LCD control panel menu
• 1-10Hz/second strobe effects
• 3-pin male input and 3-pin female output
• Compact, high quality housing

Light Source
Ultra-bright 40-watt white LED source

Power
• AC 110-240VAC, 50/60 Hz
• Power Consumption: 59W, .79A, pf: .63

Control
• Protocol: USITT DMX-512
• DMX Channels: 11
• Operating Modes: Standalone, Master/Slave, Sound Active
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• LCD 4-button control panel

Optical
• Beam Angle: 9
• Luminous Intensity (Lux): 30,810 @ 1m | 1,486 @ 5m

Movement Range
• Pan: 540 degree
• Tilt: 220 degree

Operating Temperature
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Dimensions
• Width: 7.9 inches (20.1 cm)
• Depth: 7.7 inches (19.6 cm)
• Height: 12.5 inches (31.7 cm)
• Weight: 7.7 lbs (3.5 kg)

Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
