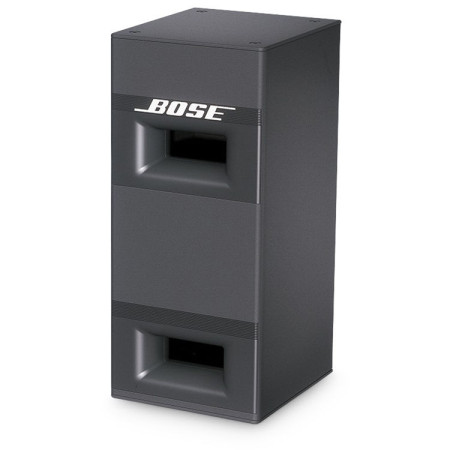

Bose Panaray 502B Accoustimass Bass Loudspeaker Enclosure, Black

Dropships Ships Directly From The Supplier
This item is not in stock. Bose Professional can ship this item directly to you after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
No Free Shipping Shipping Charges Apply
While most of our items ship for free, this item does not qualify due to size or weight
bose 502b      black
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Low-frequency loudspeaker designed for indoor permanent installations. The 502 B loudspeaker features patented Acoustimass speaker technology to deliver non-localizable bass to 45 Hz.

Key Features
• Single 12" (305 mm) woofer with Bose patented Acoustimass speaker technology, which reduces audible distortion and delivers non-localized bass
• 450 W long-term and 1800 W peak power rating
• Integrated suspension inserts allow easy permanent installations with optional rigging accessories
• Engineered to match acoustically with the Panaray 502 A speaker systems

Technical Summary
• Frequency Response (+/-3 dB): 50 Hz - 140 Hz
• Frequency Range (-10 dB): 45 Hz - 160 Hz
• Nominal Dispersion: Omni-directional below 200 Hz
• Long-Term Power Handling: 450 W (1800 W peak)
• Sensitivity (SPL / 1 W @ 1 m): 90 dB SPL
• Maximum SPL @ 1 m: 116 dB SPL (122 dB SPL peak)
• Nominal Impedance: 8 ohm

Physical
• Enclosure: Vinyl-wrapped, high-density wood composite
• Environmental: Indoor use only
• Connectors: Two (2) parallel-wired barrier strips
• Suspension / Mounting: Eight (8) 8 mm threaded inserts (4 top, 4 bottom), 20 mm depth
• Dimensions: 31.0" H x 14.0" W x 15.5" D (787 mm x 356 mm x 394 mm)
• Net Weight: 85 lb (38.6 kg)
• Color: Grey, White, Paintable

Package Contents
• 1 loudspeaker

Applications
• Houses of worship
• Auditoriums
• Restaurants and bars
• Hotels
• Atriums and malls
• Foreground music

Additional Information

UPC N/A
SKU 502B BLACK
Manufacturer Bose Professional
Product Condition New
Returnable Yes
