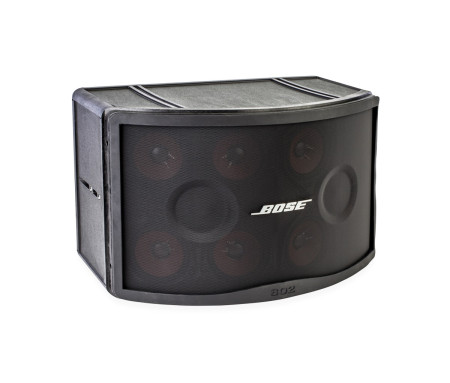

Bose Panaray 802 Series IV Loudspeaker

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
bose 802iv
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

The Panaray 802 installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array design, with wide 120 x 100 coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

• Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.
• 8x Bose 4.5-inch full-range drivers for legendary reliability
• 120 x 100 Articulated Array design covers a very wide area, which can reduce the number of loudspeakers required
• 52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels
• 123 dB Peak SPL for sound-reinforcement and foreground music
• Rugged, lightweight enclosure with threaded inserts for easy installations
• Weather-Rated Design for indoor or outdoor installations
• Requires Active Equalization

• Auditoriums
• Gymnasiums
• Restaurants and bars
• Fitness clubs
• Theme parks
• Outdoor event venues

Technical Summary
Frequency Range (-10 dB) 52 Hz - 15 kHz
Nominal Coverage Pattern (H x V) 120 H x 100 V
Long-Term Power Handling Bose extended-lifecycle test4: 240 W
AES transducer test5: 300 W
Power Handling, Peak Bose extended-lifecycle test4: 960 W
AES transducer test5: 1200 W
Sensitivity (SPL / 1 W @ 1 m) 92 dB SPL
Calculated Maximum SPL @ 1 m Bose extended-lifecycle test4: 116 dB SPL
AES transducer test5: 117 dB
Calculated Maximum SPL @ 1 m, peak Bose extended-lifecycle test4: 122 dB
AES transducer test5: 123 dB
Nominal Impedance 8 ohm
