Entry-level, full-range, surface-mount loudspeakers designed for background music and speech reproduction in a wide range of installed applications. Broad 170 x 160 coverage pattern and frequency range down to 80 Hz. The DS 16SE is for indoor and outdoor applications.

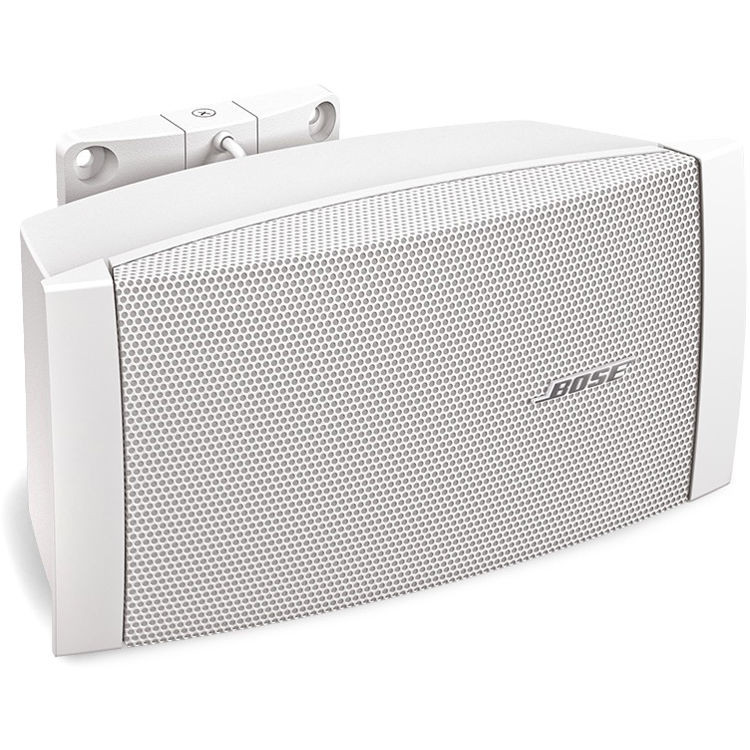

Full-range loudspeaker with a single 2.25" (57 mm) full-range driver in a ported enclosure designed for surface mounting in background music and paging applications.
Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw.
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap.
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality.
Can be combined with either surface or flush-mount FreeSpace 3 Acoustimass module for extended bass response.
Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes.
Applications
• Retail stores
• Restaurants and bars
• Concourse
• Transportation facilities
• Resorts and hospitality venues
• Houses of worship
Frequency Response (+/-3 dB): 95 Hz - 17 kHz
Frequency Range (-10 dB): 80 Hz - 19 kHz
Nominal Dispersion: 170 H x 160 V
Long-Term Power Handling: 16 W (64 W peak)
Sensitivity (SPL / 1 W @ 1 m): 84 dB SPL
Maximum SPL @ 1 m: 96 dB SPL (102 dB SPL peak)
Nominal Impedance: 8 ohm (transformer bypassed)
