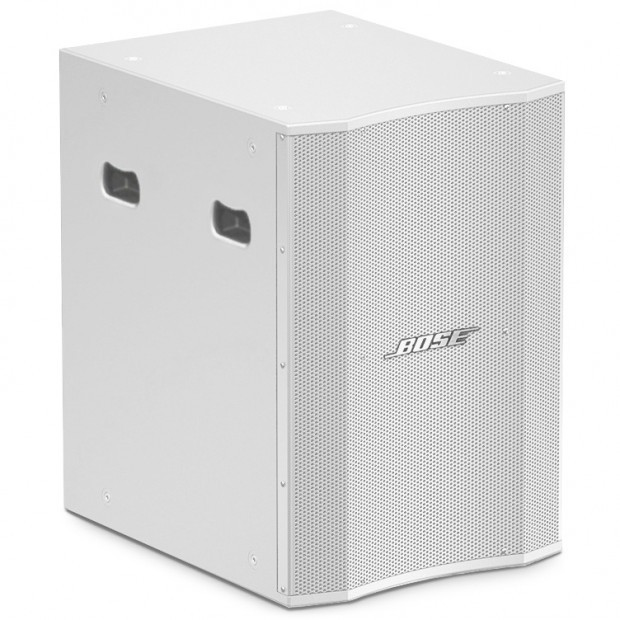

Bose MB24 III Modular Bass Loudspeaker, White

Low-frequency reinforcement for Bose LT arrays and other subwoofer applications that require 40 - 280 Hz bass response

Front-loaded tapered transmission line design provides peak-free extended low-frequency response, and reduces port turbulence distortion

2 x 12" (305 mm) high-excursion woofer with 4" (102 mm) voice-coil and 800 W long-term power rating provides high SPL with fast transient response

Compact enclosure optimized for bass-array applications when cardioid or other directional-bass configurations are required for reverberant spaces

Applications
• Stadiums
• Arenas
• Houses of worship
• Auditoriums
• Performing arts venues

Frequency Response (+/-3 dB): 40 Hz - 280 Hz
Frequency Range (-10 dB): 36 Hz - 290 Hz
Nominal Dispersion: Omni-directional below 200 Hz
Sensitivity (SPL / 1 W @ 1 m): 94 dB SPL
Maximum SPL @ 1 m: 123 dB SPL (129 dB SPL peak)
Long-Term Power Handling: 800 W (3200 W peak)
Nominal Impedance: 4 ohm
