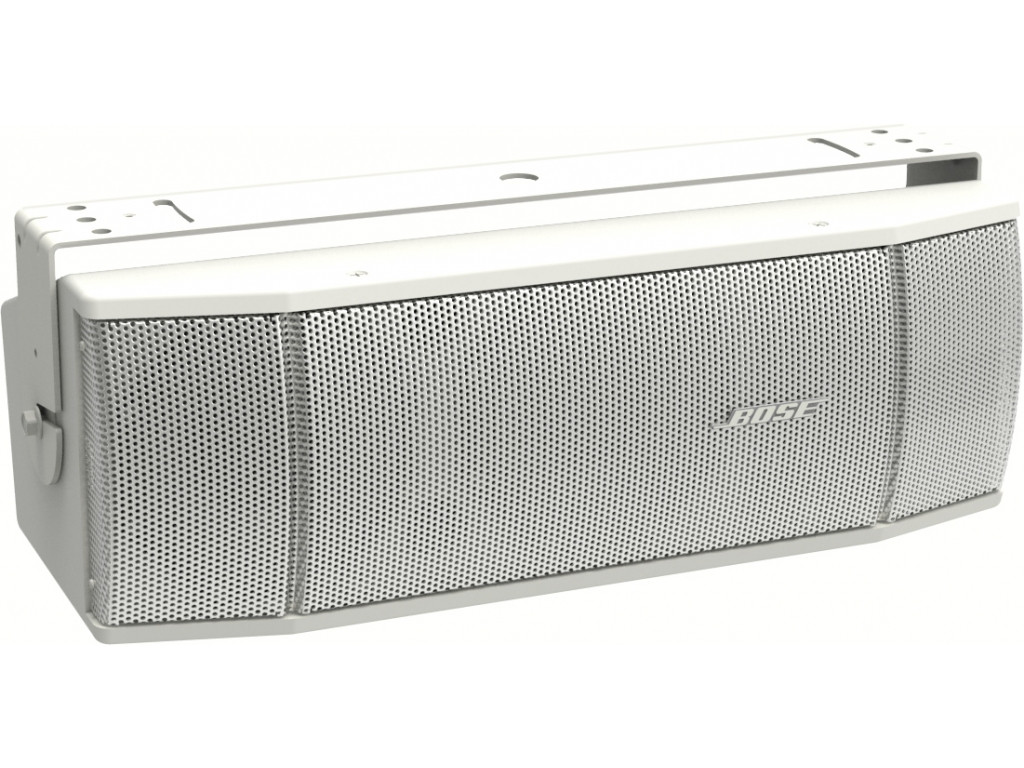

The RoomMatch Utility RMU206 small-format under-balcony fill loudspeaker features a unique angled baffle enclosure design to minimize the projected height for typical under-balcony and low-ceiling zone-fill applications. The design also features a single Bose EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. Two 6.5-inch woofers provide vocal-range output and a rotatable high-frequency waveguide increases mounting flexibility.
Award-winning RoomMatch sound now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, and zone-fill applications
Bose EMB2 compression driver for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character to that of RoomMatch full-range and other RoomMatch Utility models
Minimal height for under-balcony or low-ceiling mounting unique enclosure baffle design provides minimum projected height for under-balcony or low-ceiling mounted applications
120 x 60 constant-directivity high-frequency horn gives wide, even coverage and may be rotated in enclosure. Can reduce the number of speakers required for under-balcony applications
2 x Bose LF6 6.5-inch woofers with extended-excursion voice coils extend response to 80 Hz for lowest vocal range
Quasi-3-way passive crossover with separate filters for each transducer provides more consistent frequency and polar response compared to conventional crossover designs
80 Hz 16 kHz frequency response and 122 dB maximum peak SPL deliver the performance required for most demanding under-balcony and zone-fill applications
Flexible mounting with included U-bracket rear enclosure panel also includes 4 x M8 threaded inserts in 5.0" x 2.75" (127mm x 70mm) pattern to accept third-party accessory mounting brackets
Applications
• Under-balcony and zone fill
• High-quality foreground music
• Stage-front fill
Frequency Response (+/-3 dB): 90 Hz - 16 kHz
Frequency Range (-10 dB): 80 Hz - 16 kHz
Nominal Coverage Pattern (H x V): 120 x 60 (rotatable high-frequency horn)
Power Handling, long-term continuous: Bose extended-lifecycle test4: 200 W; AES transducer test5: 250-300 W
Power Handling, Peak: Bose extended-lifecycle test4: 800 W; AES transducer test5: 1000 W
Sensitivity (SPL / 1 W @ 1 m): Bose extended-lifecycle test4: 92 dB; AES transducer test5: 92 dB
Calculated Maximum SPL @ 1 m: Bose extended-lifecycle test4: 115 dB; AES transducer test5: 116 dB
Calculated Maximum SPL @ 1 m, peak: Bose extended-lifecycle test4: 121 dB; AES transducer test5: 122 dB
Nominal Impedance: 8 ohm
