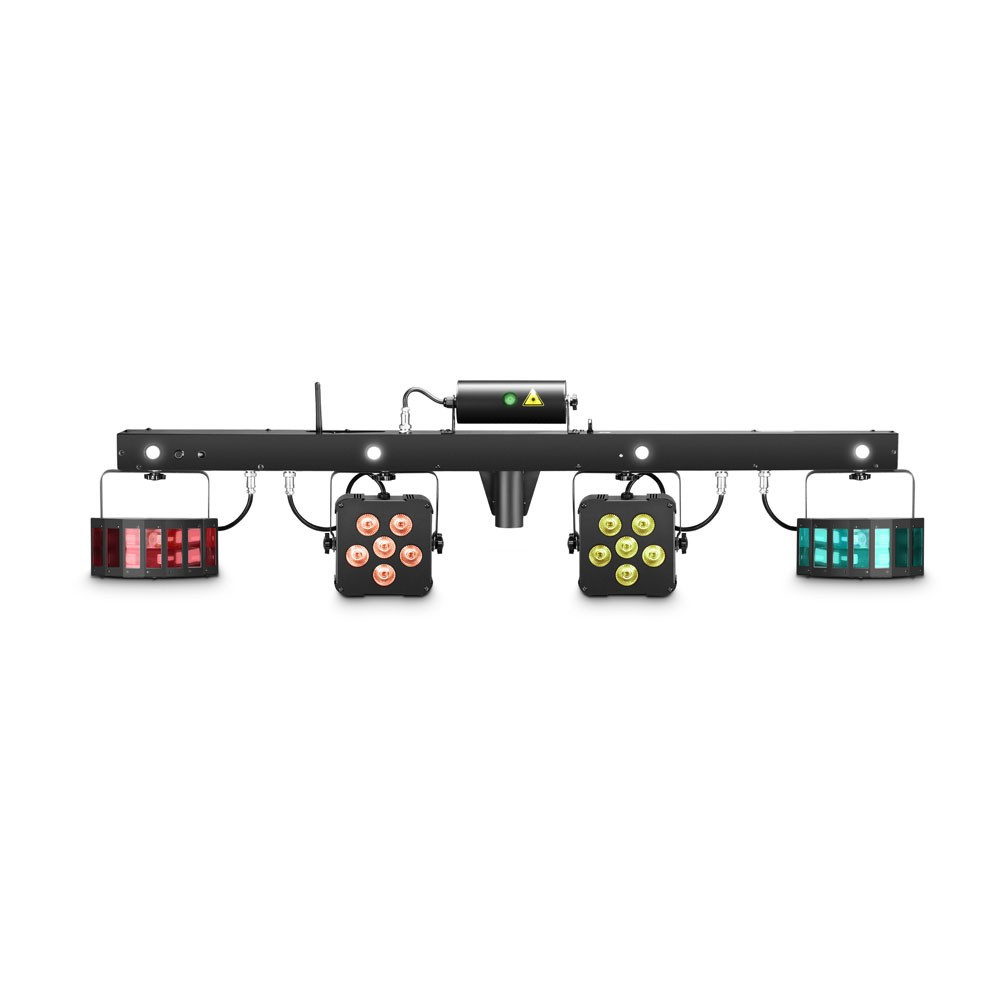

With the integrated pole mount, set-up is straightforward and quick for instant use. The Multi FX Bar provides a variety of control options via the 4-button display, DMX and the wireless footswitch or handheld infrared remote that are both included. For automatic operation and sound activation, it sports a total of 46 fantastic built-in programs that produce mesmerizing light shows including all 5 effects.

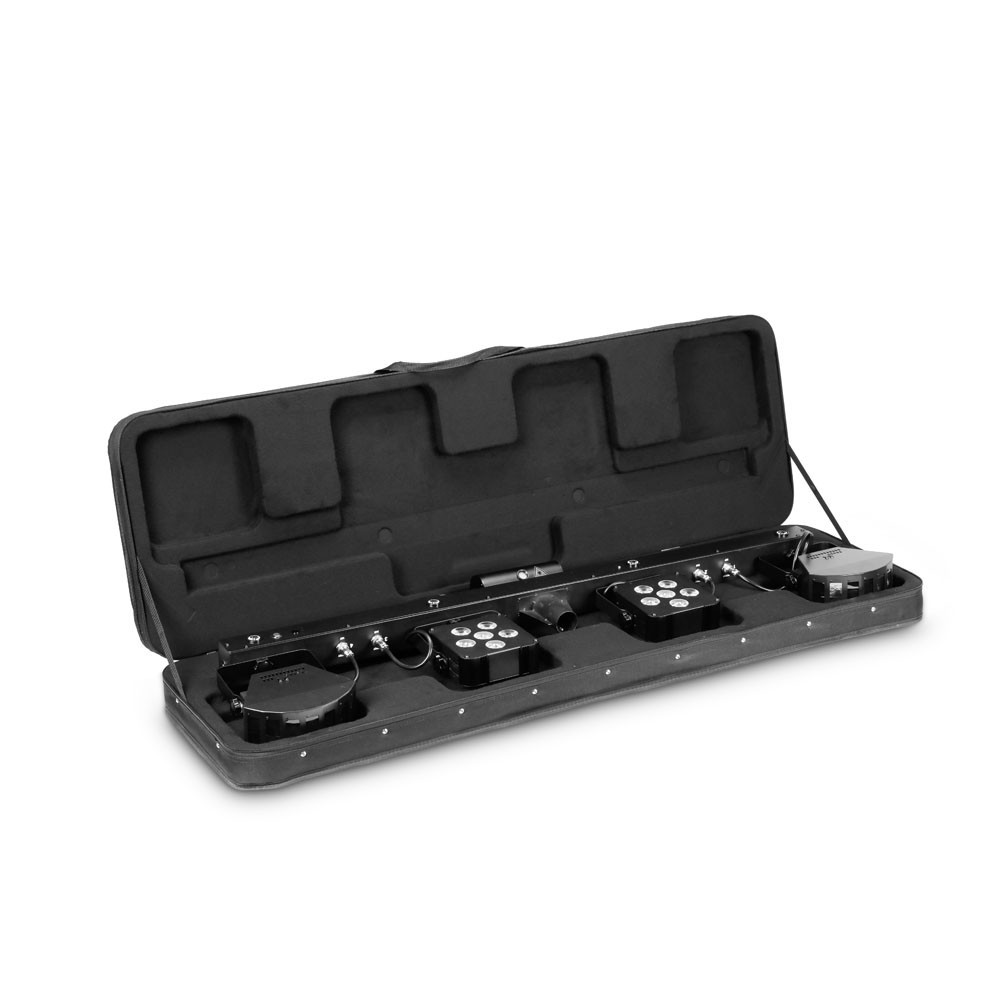

The Cameo Multi FX Bar comes with a rugged carry bag for convenient transport and allows easy daisy-chaining to create larger lighting systems.

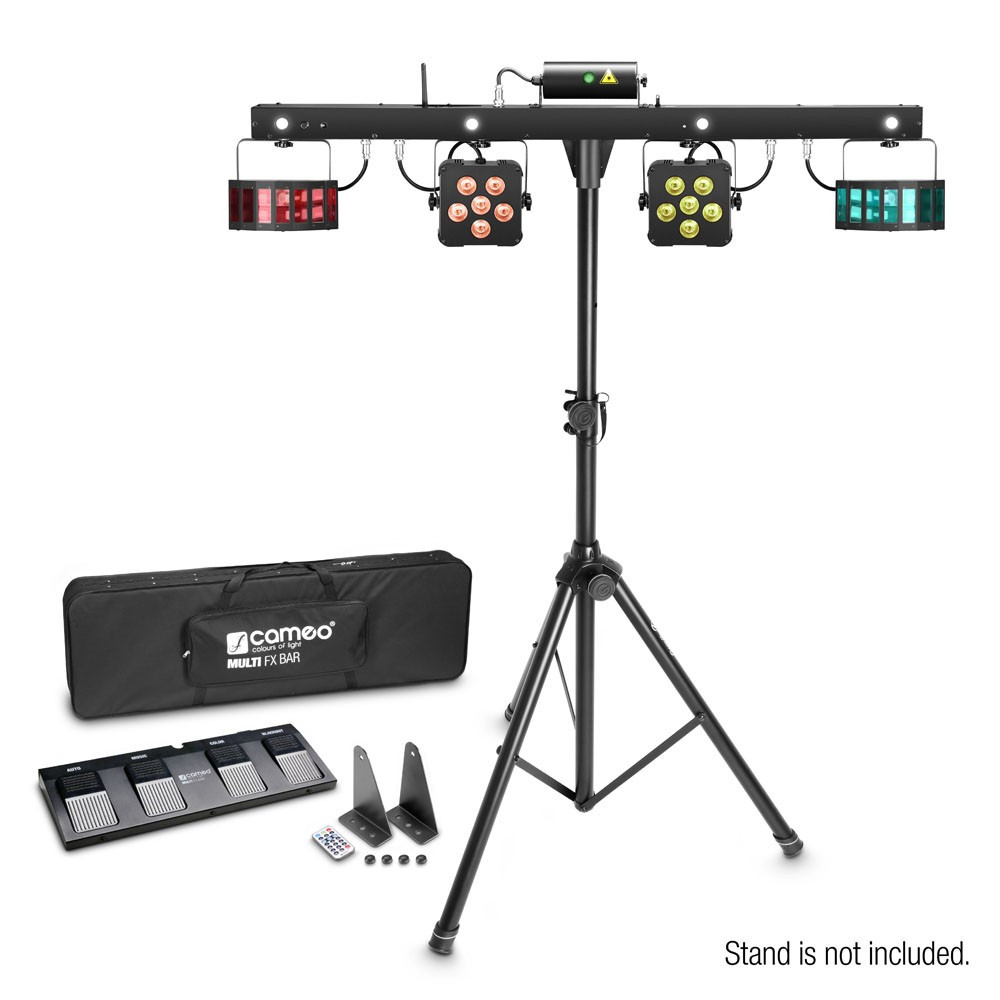

Features• All-in-one lighting system with 5 intense effects including 2 brilliant LED PAR cans, 2 rotating LED derbies, 4 strobe LEDs, a grating laser and UV light
• Pre-mounted to a bar with pole insert for instant set-up and use

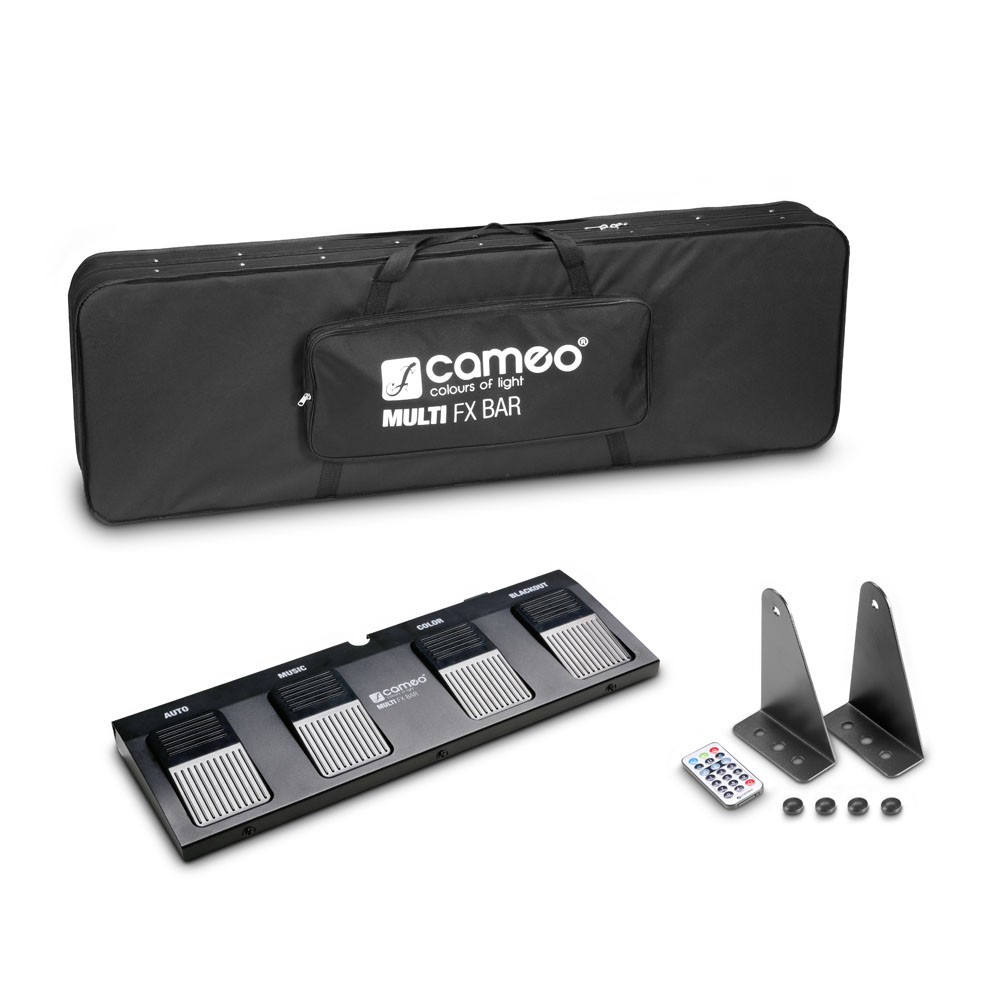

• Includes a convenient carry bag, wireless footswitch, infrared remote control and truss mounting brackets
• 46 built-in programs for mesmerizing light shows that include all 5 effects
• Multiple control options including a 4-button display, DMX, infrared remote, wireless footswitch, sound activation and automatic operation
• All effects usable individually and in combinations
• PAR lights with 12 high-performance 12W RGB+UV LEDs
• Derby effect with 6 powerful 3W RGB LEDs
• Grating laser with 200mW output (red = 150mW, green = 50mW)
• Strobe effect with 4 white 3W LEDs
SpecsProduct type LED Lighting Effects
Type LED / Strobe / Laser Effects
Spot Colour Spectrum RGB+UV 12 W
Number Of Spot LEDs 12
Colour Spectrum Derby Effect RGB
Number of LEDs Derby Effect 6
LED Type Derby Effect 3 W
Colour Spectrum Laser Effect green LED (532 nm) , red LED (650 nm)
Number of Diodes Laser Effect 1 x green , 1 x red
Type of Diodes Laser Effect red 150 mW, green 50 mW (DPSS laser)
Laser Class 3R
Laser Shutdown (safety function) connection for external emergency stop switch , Lock switch
Colour Spectrum Strobe white
Number of LEDs Strobe 4
LED Type Strobe 3 W

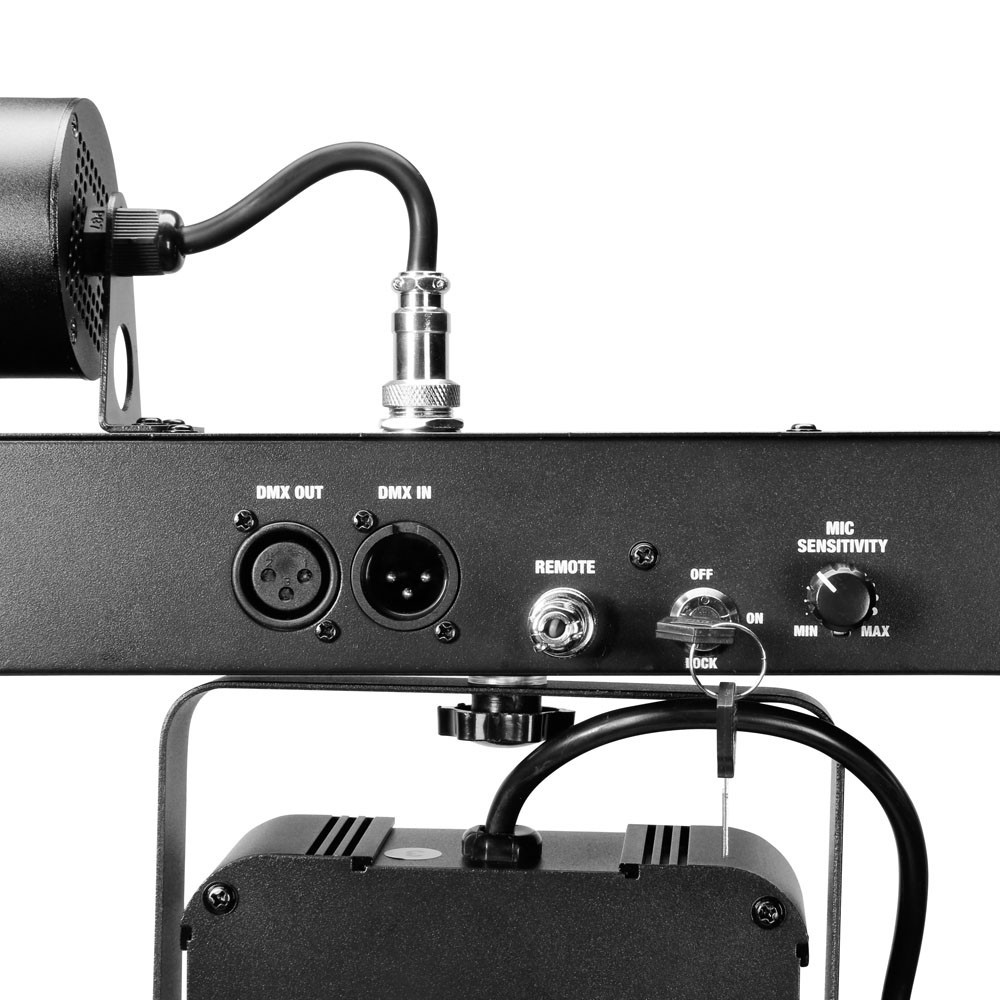

DMX input XLR 3-pin male
DMX output XLR 3-pin female
DMX mode 2-channel , 29-channel , 5-channel
DMX Functions Auto programs , Derby , Laser , sound sensitivity , strobe
Standalone modes Auto programs , colour , slave mode , sound programs
Controls Down , Enter , Mode , Up
Indicators 4-digit LED display
Operating voltage IEC power input and output
Power consumption 120 W
Fuse T3.15A
Maximum Ambient Temperature 104 F C
Housing material Metal
Cabinet colour Black
Cooling fan
Dimensions (W x H x D) 1100 x 60 x 60 mm
Weight 6,6 kg
Features IR Remote Control , key switch with 2 keys , Mounting brackets , truss mounting angles and interlock connector for optional emergency stop switch , wireless footswitch with 12V 23AE battery
