With the integrated pole mount, set-up is quick and straightforward instant use. The Multi FX Bar EZ provides a variety of control options via seven DMX modes, the 4-button menu display and wireless footswitch or handheld infrared remote which are both included with the lighting system. The 7-channel DMX mode allows you to quickly create your own chases. A selection of fantastic built-in programs for automatic operation and sound activation produces mesmerizing light shows combining all three effects or using the spot lights only.

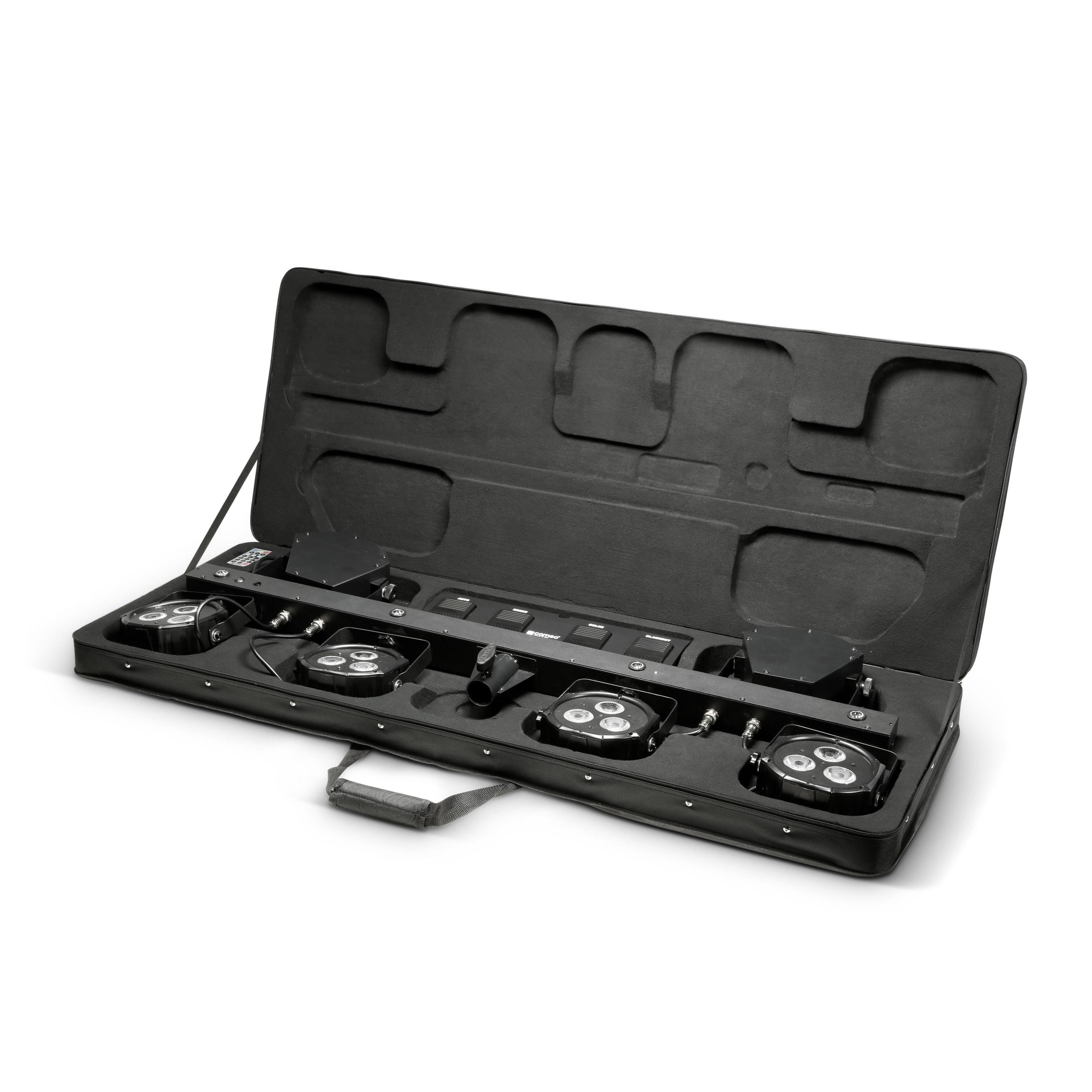

The Cameo Multi FX Bar EZ comes with a rugged transport bag for convenient transport and allows easy daisy-chaining to create larger lighting systems. It also features a mounting provision for an additional fixture.
Features• All-in-one lighting system with 3 intense effects including 4 brilliant LED spot lights, 2 rotating LED derbies and 4 strobe LEDs
• Pre-mounted to a bar with pole insert for instant set-up and use

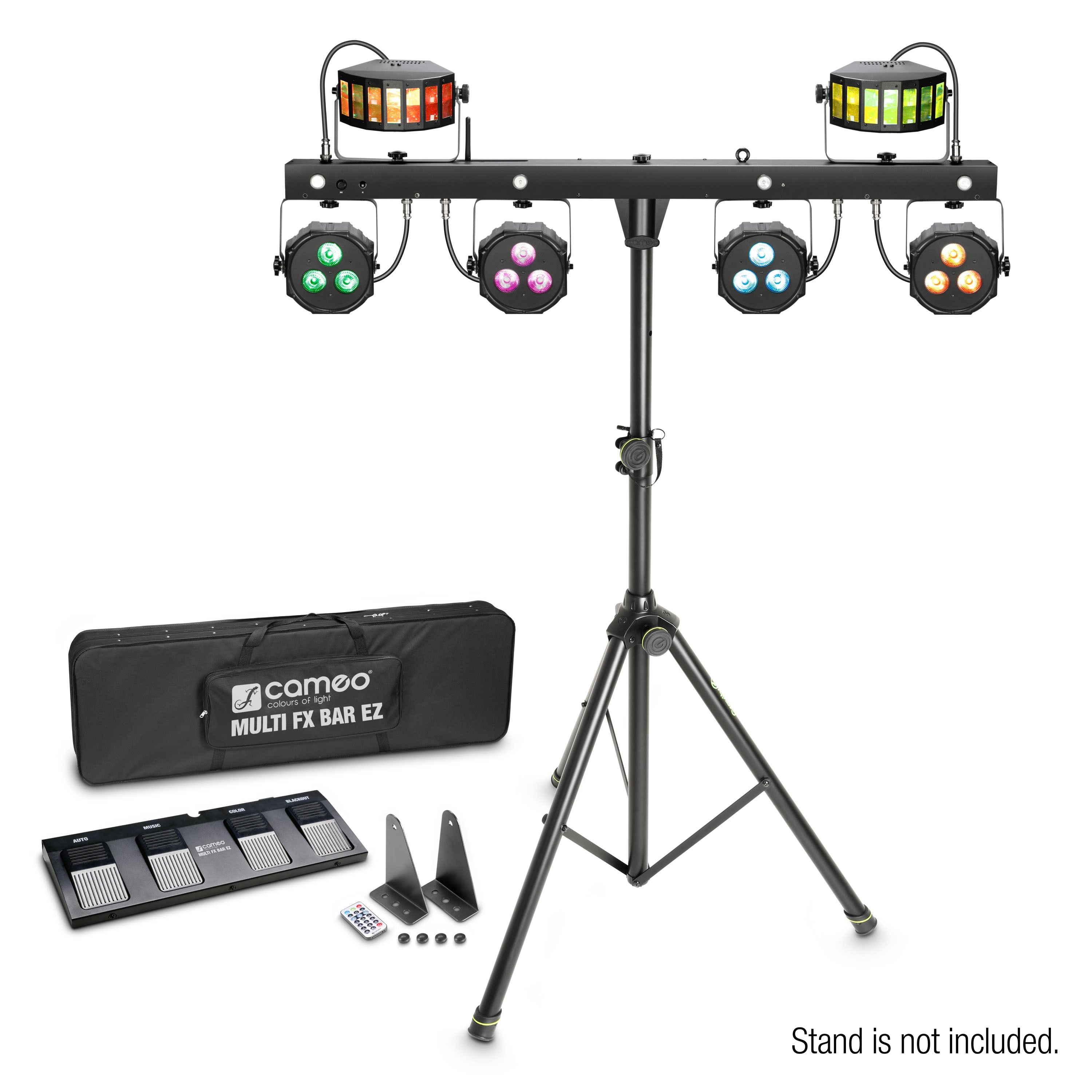

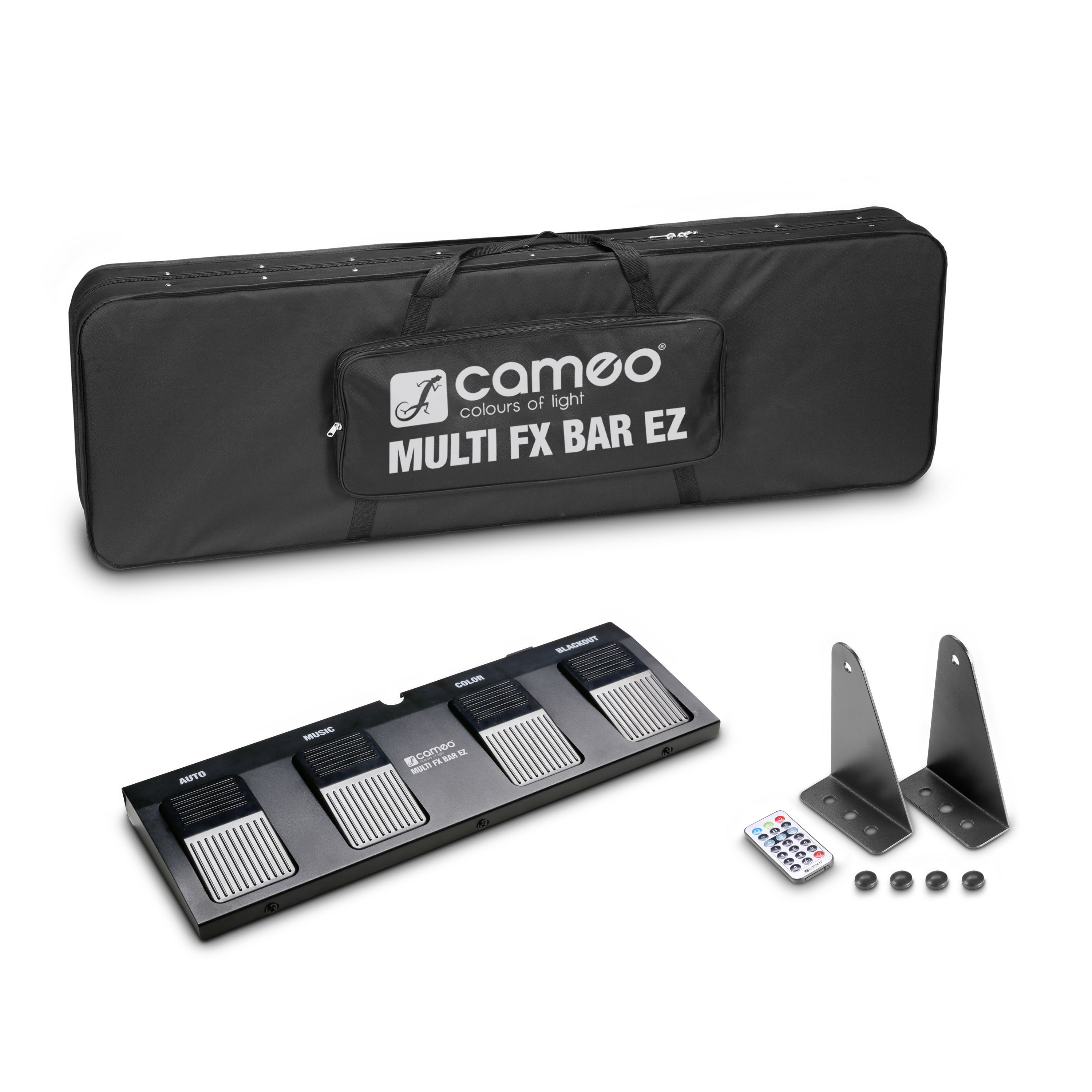

• Includes a convenient transport bag, wireless footswitch, infrared remote control and truss mounting brackets
• Built-in programs for mesmerizing light shows
• Multiple control options including DMX, infrared remote or wireless footswitch plus automatic operation and sound activation
• Innovative auto program control with foreground and background colours and pattern selection
• 7-ch DMX mode for quick chase creation
• All effects usable individually, e.g. spot lights only, and in combinations
• 4 PAR spot lights with 12 high-performance 12W RGBWA+UV LEDs
• 2 derby effects with 6 powerful 3W RGB LEDs
• Strobe effect with 4 white 1W LEDs
• Mounting provision for 1 additional fixture
SpecsProduct type LED Lighting Systems
Type 3 in 1 multi FX Bar
Spot Colour Spectrum RGBWA + UV
Number Of Spot LEDs 3
LED Typ LED Spot 12 W 6in1
Colour Spectrum Derby Effect RGB
Number of LEDs Derby Effect 3 single colour
LED Type Derby Effect 3 W
Colour Spectrum Strobe white
Number of LEDs Strobe 4
LED Type Strobe 1 W
DMX input XLR 3-pin male
DMX output XLR 3-pin female
DMX mode 10-channel , 25-channel , 28-channel , 36-channel , 5-Kanal 1 , 5-Kanal 2 , 7-channel
DMX Functions Auto programs , Colour macros , Derby Rotation , Dimmer , Dimmer Chase , Foreground / Background Colour , RGB (for PAR) , RGBWA + UV (for PAR) , Speed Control , strobe
Standalone modes Auto programs , sound programs , Static
Control DMX512 , IR Remote Control , Wireless footswitch (433MHz)
Controls Down , Enter , IR Remote Control , Mode , Up , Wireless Pedal Remote Control (433MHz)
Indicators 4-digit LED display

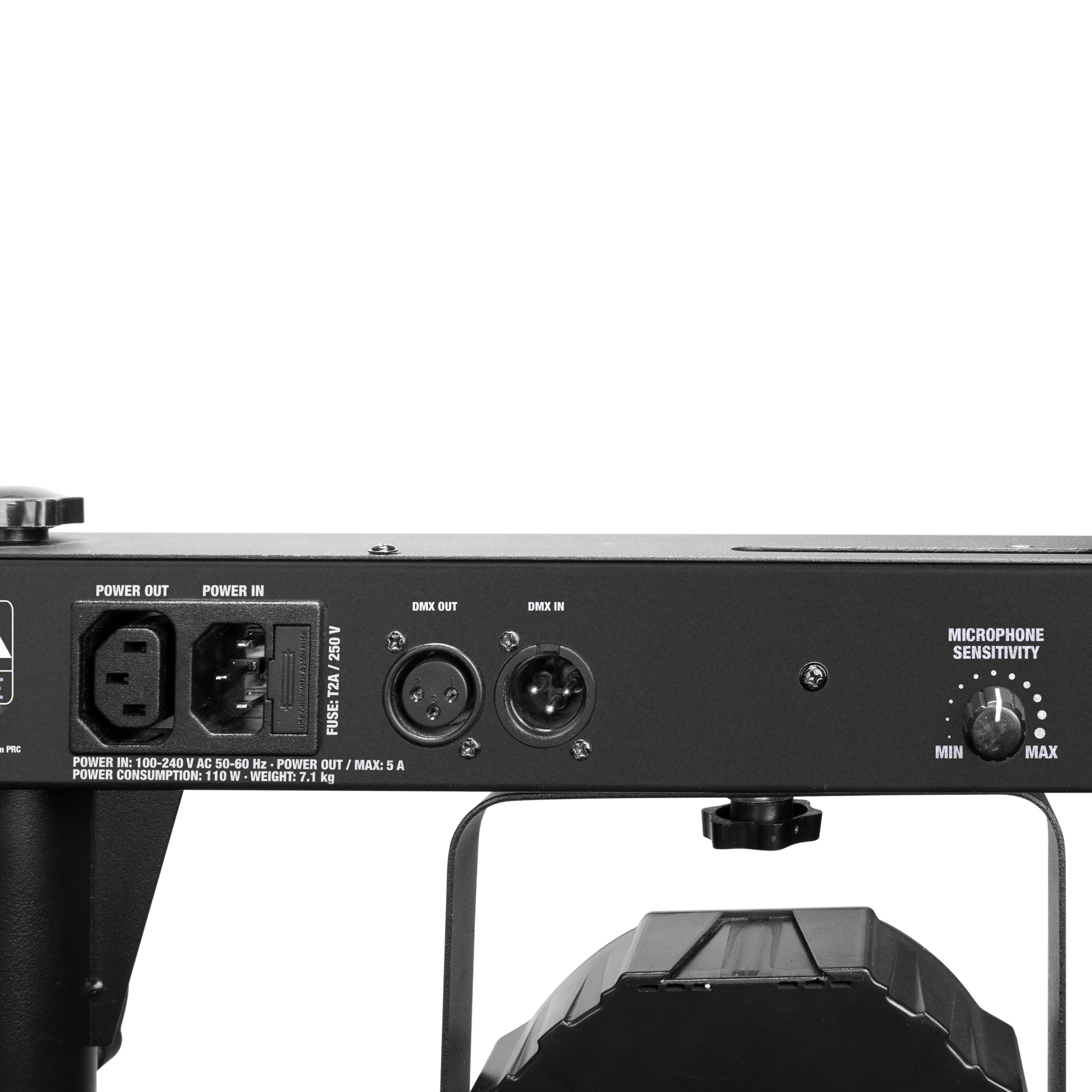

Power connector IEC power input and output
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 110 W
Max. output current 5 A
Fuse T2A / 250 V (5 x 20 mm)
Maximum Ambient Temperature 10 C - 40 C C
Relative Humidity < 85 %, not condensing
Housing material Metal / ABS
Cabinet colour Black
Dimensions (W x H x D) 1149 x 414 x 80 mm
Weight 6,6 kg
Features adjustable mounting bracket included , IR Remote Control , safety eyelet , Softcase , Stand mount 35 mm , Wireless footswitch (433MHz)
