Engineered for superior sound reproduction, the CV Series line of professional amplifiers deliver top quality audio at an affordable price. The CV Series offer a standard of reliability and efficiency that makes them the perfect solution for every DJ, musician, and sound engineer. Welcome to a new level
of professional quality sound performance!
FEATURES:• Front panel LED displays indicate power, clip protect and
signal status

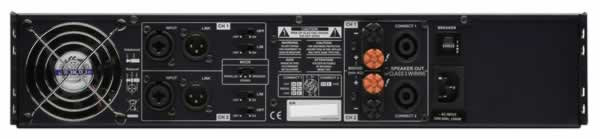

• Balanced XLR and TRS Input connectors
• Speakon NL-4 locking output connectors and binding posts
• Detented 21-position input level control knobs
• Defeatable limiter and high pass filter per channel
• Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection
• 5-way binding post and Speakon output connectors
• Flow-through cooling design prevents overheating with continuously variable speed, front to rear
SPECIFICATIONS:• Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz
• Rated Output Power (Stereo): 210 watts at 8 ohms; 320 watts at 4 ohms; 420 watts at 2 ohms
• Rated Output Power (Mono): 650 watts at 8 ohms; 845 watts at 4 ohms
• At Full Power @4 ohms: 10.5A / 5.5A
• Signal to Noice Ratio: 20 Hz - 20k Hz - 100dB
• Distortion (SMPTE-IM): .05%
• Output Circuitry: AB
• Damping Factor (400 Hz): 200
• Weight 28 lbs / 12.6 kg
• Dimensions (WxHxD) 19" x 3.5" x 16.5"
