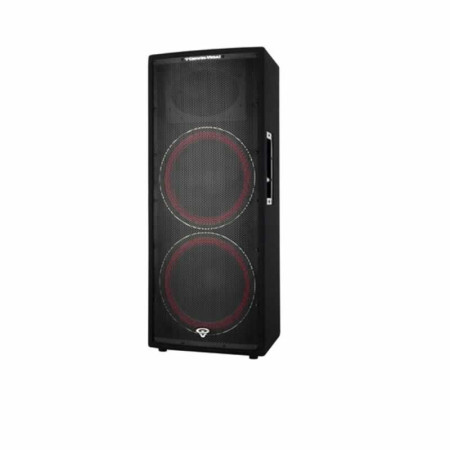

The CVi-252 is a portable, full range, dual fifteen-inch quasi 3-way main loudspeaker system designed for live music and playback applications. The CVi-252 features two high power, cast frame, fifteen inch transducers with a 2.5 inch voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to a 80 H x 50 V hemi conical horn for smooth, accurate on and off axis high frequency performance.
Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.
Applications:•Portable live sound PA
•DJ system PA
•Auditoriums
•Fill monitor
•Clubs
•Outdoor stages
Featured Data:•Model - CVi-252
•System Configuration - Quasi 3-Way main
•Connections - 2 ea." Phone Jack and Neutrik Speakon
•Low Frequency System - Dual Reflex loaded 15" transducer
•High Frequency System - 1 inch exit 80 H x 50 V
•Enclosure Type - Vented, trapezoid
•Enclosure Structure - 18mm OSB, internal bracing
•External Covering - Black polypropylene fiber
•Grille Material - 18 gauge black powder coated steel
Performance Data:•Frequency Response - +/- 3 dB 62 Hz12 kHz
•Operating Range - -10 dB 39 Hz20 kHz
•Nominal Impedance (Ohms) - Full Range 4 Ohms
•Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 99 dB
•Calculated Maximum Output (dB SPL, @ 1M) - Full Range 132 dB
•Power Handling (Watts) - RMS 250 W / Program 1000 W / Peak 2000 W
•Nominal Directivity / -6dB points (Degrees) - Horizontal: 80 / Vertical: 50
