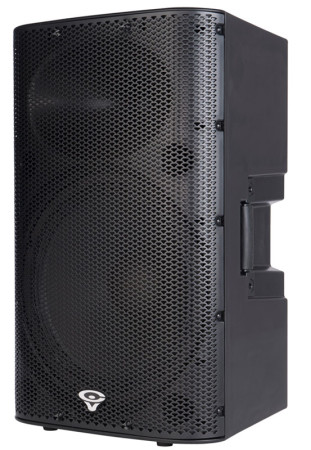

On Closeout! Limited Quantities Available. The P1500X is a two-way, bi-amped, full-range bass-reflex speaker. It employs a 15-inch woofer and a high-frequency compression driver, powered by a custom Class-D amplifier. With a power rating of 1500 watts, the P1500X is one of the most powerful PA product in its class. A proprietary hemi-conical horn provides premium sound clarity over an even and wide coverage area. A built-in mixer with convenient I/O connections allows for simple and fast setup, while Enhanced EQ, VEGA BASS boost and High-Pass Filters enable exact tuning and exceptional performance for any application. The P1500X is a versatile product that can be used as a single speaker for a small venue, set in pairs or installed with threaded hang points for a larger venue needing more coverage and SPL, or as a floor monitor for a band.
Specifications: • Model: P1500X
• System Configuration: Active 2-way full-range, bass reflex
• Frequency Range (-10 dB): 49.8 Hz 23.5 kHz
• Frequency Response (3 dB): 55.0 Hz 20.5 kHz
• Nomiinal Coverage (-6 dB): 90 Horizontal, 65 Vertical
• Maximum SPL(1W @ 1m): 134 dB
• Amplifiier Type: Class D
• Amplifier Rating: 1500 Watts Dynamic, 540 Watts Continuous
• Low Frequency Driver: 15"
• High Frequency Driver: 1" diaphragm, 1" exit

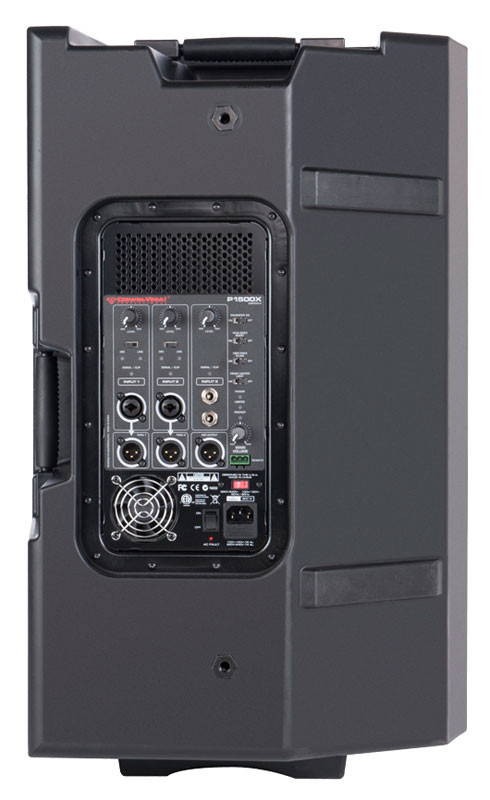

• Connectors: CH 1&2 - Neutrik' XLR/TRS inputs, CH3 Dual " TS THRU 1&2 - XLR, MIX XLR
• Indicators: Signal/Clip, Power, Limiter, Protect
• Enclosure: Polymer cabinet, flush waveguide
• Grille: 18 gauge, perforated steel
• Mounting & Suspension: 7.5 degrees down or flat, 35mm pole socket 4 x M10 suspension, 2 x M10 pull-back
• Operating Temperature: -20 to 55C
Controls:• Gain/Level (Input) - per channel)
• Line/Mic-D.I. (Input per channel)
• Enhanced EQ (On/Off)
• Vega Bass Boost (On/Off)
• High Pass Filter (On/Off)
• Front Light Limiter (On/Off)
• Main Volume (Output)
• Remote (Optional)
• AC Input Voltage (220V-240V / 100V-120V)
• Power (On/Off)
