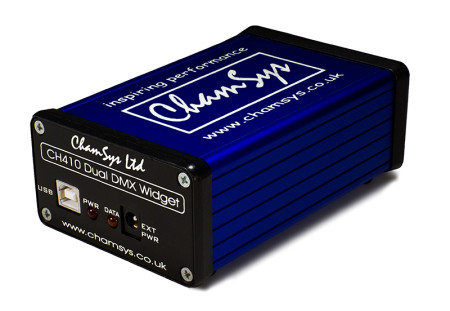

ChamSys MagicQ USB Two Universe DMX512 Interface

The two DMX outputs are optically isolated from the USB to protect against damage to your PC. DMX framing is generated from within the module, unlike many other dongles, thus giving reliable and secure operation. Highly accurate DMX framing is possible with full 512 bytes frames. The default setting of 33 DMX frames per second provides for accurate stepping of moving lights.

In normal operation the interface is powered from the USB port. A separate 12 volt power input socket is provided for connection to low power USB ports. Can also be used with MagicQ consoles to provide additional DMX outputs.

MagicQ Two Universe DMX Interface unlocks the locked features of MagicQ such as full screen Execute Window, iOS/Android remote, remote control, and removes "Demo Mode" from the title bar of MagicQ.

Supplied with USB cable.

Features:
• Two DMX512 Outputs 5 Pin XLR
• Optical Isolation
• Inbuilt DMX Processor
• Full DMX Framing
• Frame Rate 33Hz
• Power and Status LEDs

Specifications:
USB powered (or 12VDC jack input)

Width: 130mm
Depth: 81mm
Height: 48mm
Weight: 0.25kg
