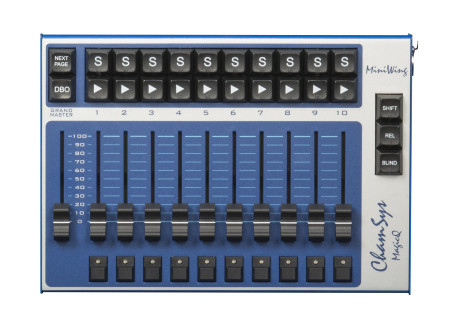

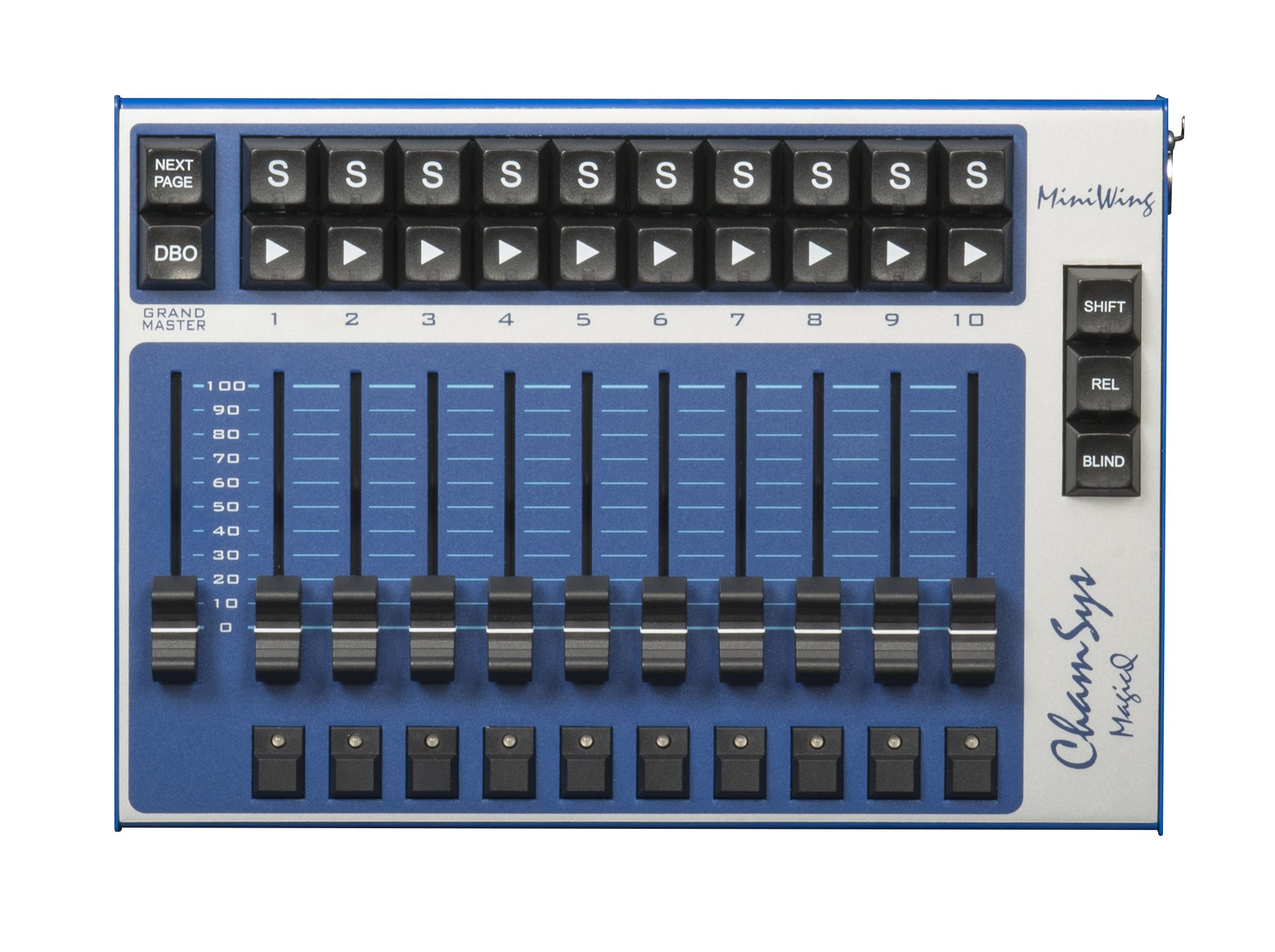

ChamSys MagicQ Mini Wing

Working through USB connection for power and data, the Mini Wing turns your computer that is running the MagicQ software into a powerful engine for controlling lighting, video and LEDs. The software is free and with the Mini Wing's single DMX output port, and 64 universes enabled for output over Ethernet, even large shows can be realised with a small amount of space and a modest investment of computer equipment.

The MagicQ Mini Wing provides a powerful PC based wing solution, ideal for theatres, clubs, and venues installations. It also provides a cost-effective backup solution for customers who have larger MagicQ consoles, controlling lighting, video and LEDs. It combines the power of the MagicQ software with real faders and button.

Features:
• USB Connection to PC or Mac
• Windows, Linux or OSX
• 10 Playback Faders & Buttons
• Direct DMX Output
• Kensington Lock Slot
• Lightweight Durable Case
• 64 Universes
• Designed and manufactured in the UK

MagicQ Software
MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualisation, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curve.

Training Courses & Videos

Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Media Server support: 50 (each different content)
Faders: 11
Buttons: 35
Direct DMX512 ports: 1
Security lock fixing: 1
Lightweight durable case included: Blue
Power Supply: USB powered

Width: 260mm
Depth: 184mm
Height: 50mm
Weight: 2kg

Cased dimensions:
Length: 350mm
Width: 290mm
Height: 210mm
Weight: 2kg
