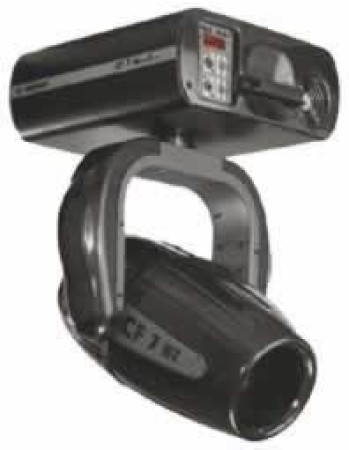

CF 7 WZ X is one of the latest moving yoke fixture from Coemar, ideal for tours applications and large venues.
The colour mixing is exceptionally fast and the fixture performs a wide range of zoom facility. Made in very light carbon fiber manufactured under vacuum and aluminum internal component parts. IP 20 protection rating.
FEATURES:• Lamp- Philips 700W MSR/SA.
• Lamp life- 500 hours.
• Movement pan- 358/624 - tilt 270
• Dimmer mechanical electronically controlled
strobe/chaser/black-out strobe adjustable flashing speed .
• Programmable chaser effect.
• CMY colour mixing system.
• Colour device, 5 solid colours + white.
• CTO filter.
• Beam- shaping device 2 lenses and 1 diffusion filter to obtain following effects:
• Diffusion filter: maximum intensity.
• Diffusion lens: maximum evenness.
• Prismatic lens: maximum diffusion (cyclorama)
• Progressive zoom with diffusion filter.
• 9 - 25 (half peak angle).
• 16 - 51 (1/10 peak angle) with diffusion lens.
• 11 - 27 (half peak angle)
• 22 - 54 (1/10 peak angle).
with prismatic lens.
• 51 - 80 (1/10 peak angle) .
• Electronic ballast.
• Silent connective ventilation.
• Reverse reading display.
• Signal control- DMX 512.
