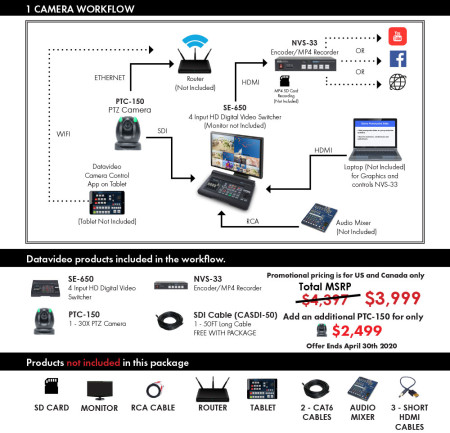

This mid-level live streaming package incorporates an NVS-33 Video Streaming Encoder and MP4 Recorder, a PTC-150 30x PTZ camera, a powerful SE-650 4-Input 1080p HD Digital Video Switcher which allows for multiple cameras, audio inputs, graphics, etc. Also includes (1) 50ft. SDI-cable.
The NVS-33 is a video streaming server designed for various network environments, offering you multiple bitrate settings as well as the flexibility of streaming and recording either individually or simultaneously. It easily allows you to stream to YouTube, Facebook, and many other platforms.

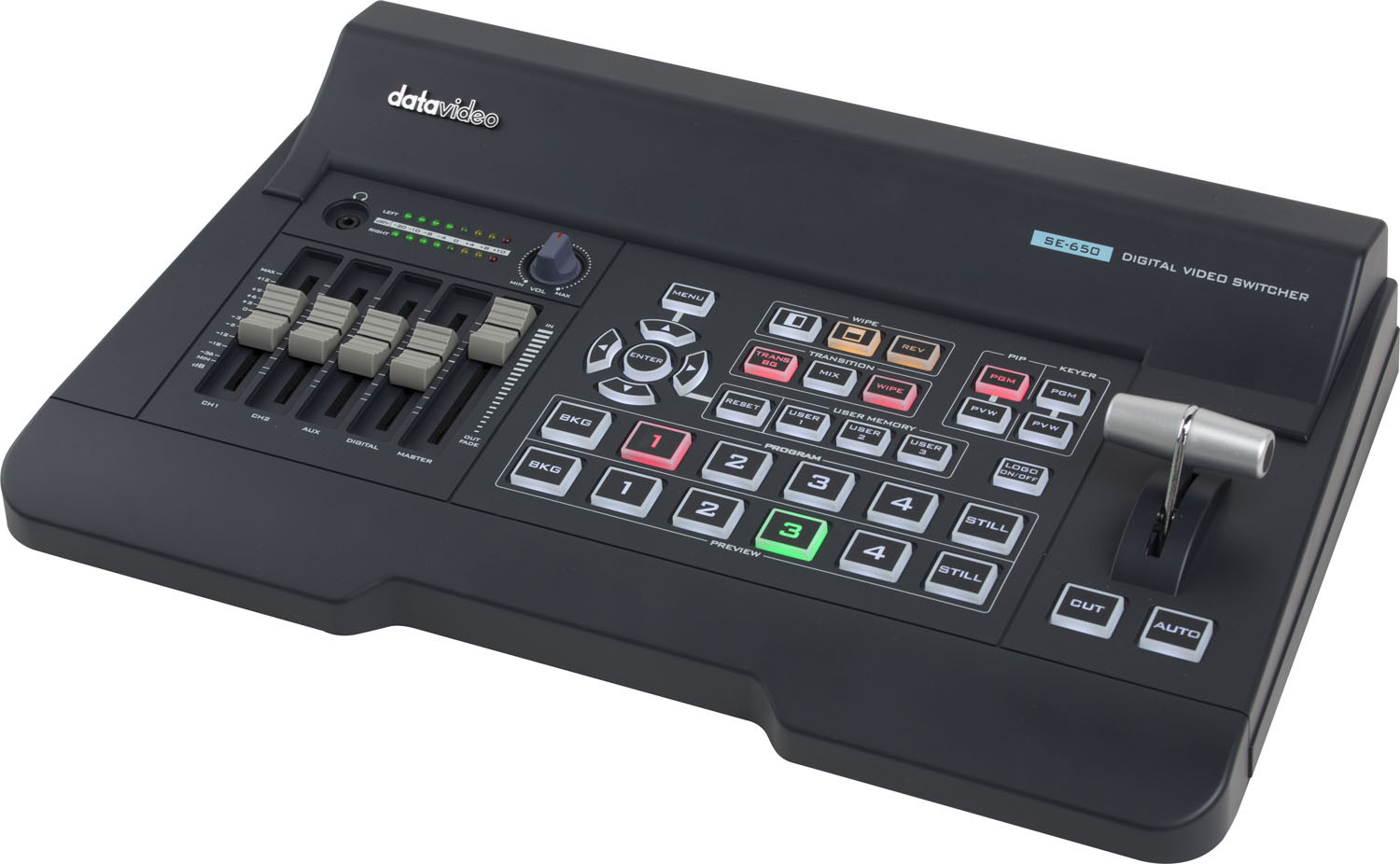

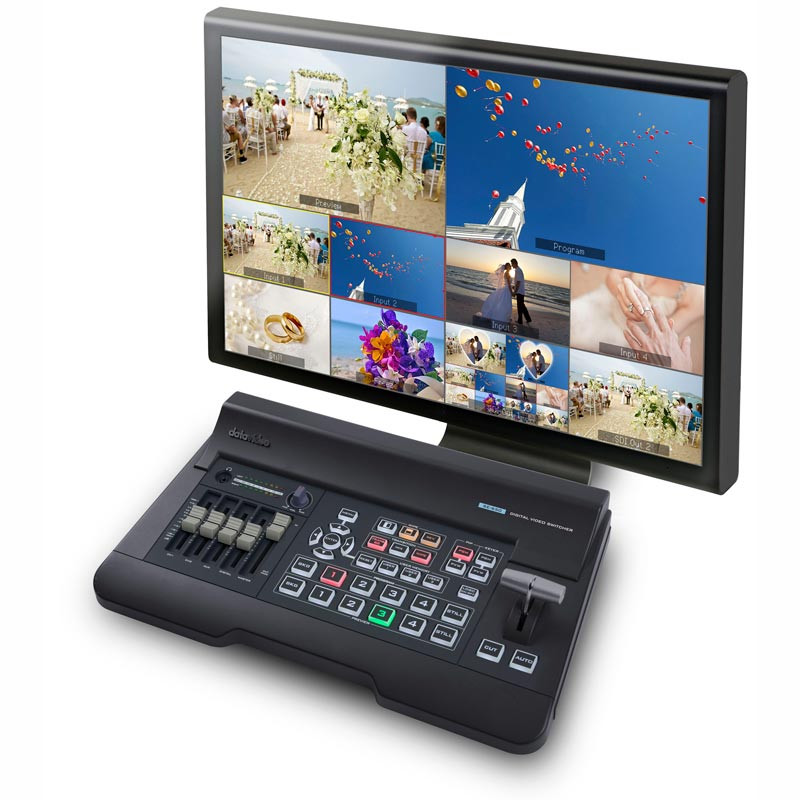

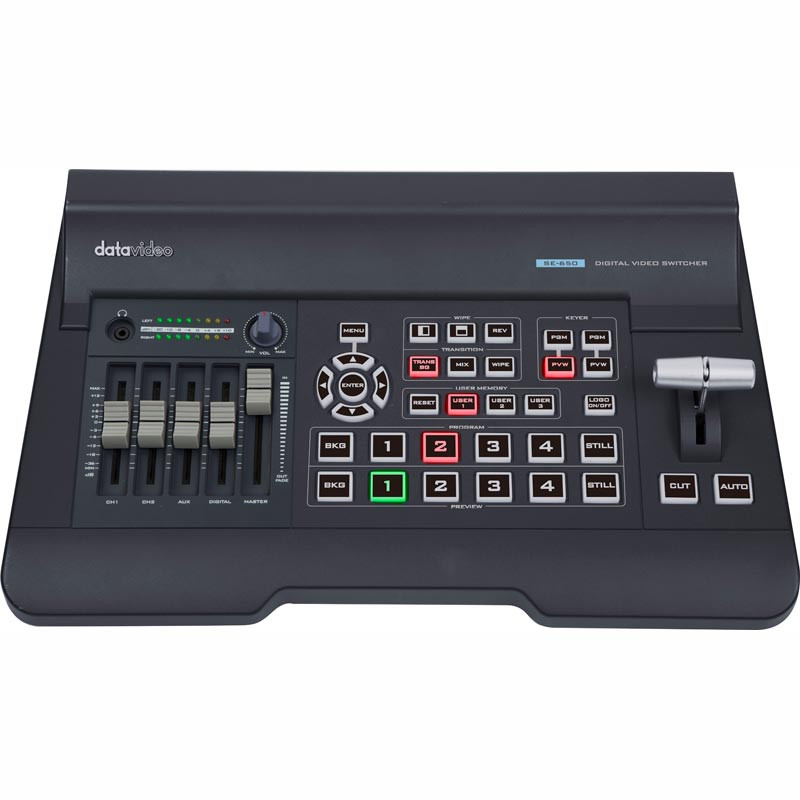

The SE-650 is Datavideo's most affordable SDI+HDMI switcher available. With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

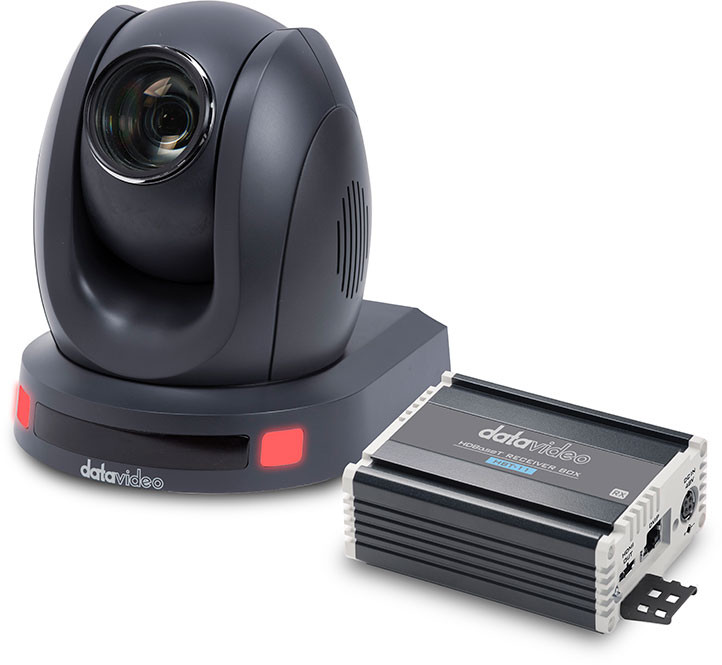

The PTC-150 shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions.
NVS-33 Features:• H.264 stream and record simultaneously
• Embed external Audio mix in Video out
• Continuous recording without file size limits
• Control via mobile web app
• Big, bright buttons

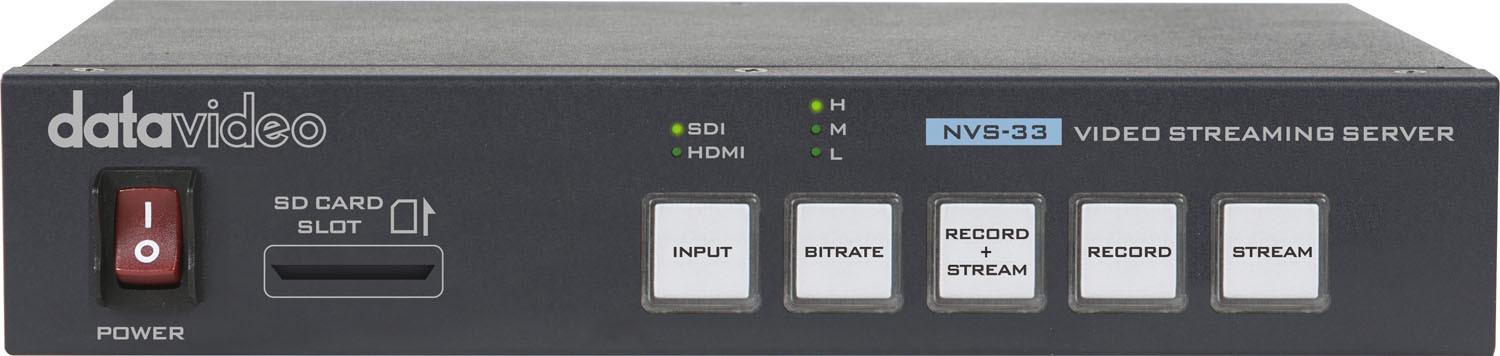

Easy to use regardless of experienceDatavideo's NVS-33 H.264 Video Streaming Encoder and MP4 Recorder is perfectly suited for streaming up to YouTube and Facebook. It is very user-friendly, allowing for ease of use by novices or volunteers. It has large function buttons and an intuitive web interface to access menus, input stream keys, and other functions.
H.264 streaming and recording simultaneouslySupports different bitrates for recording and streaming.

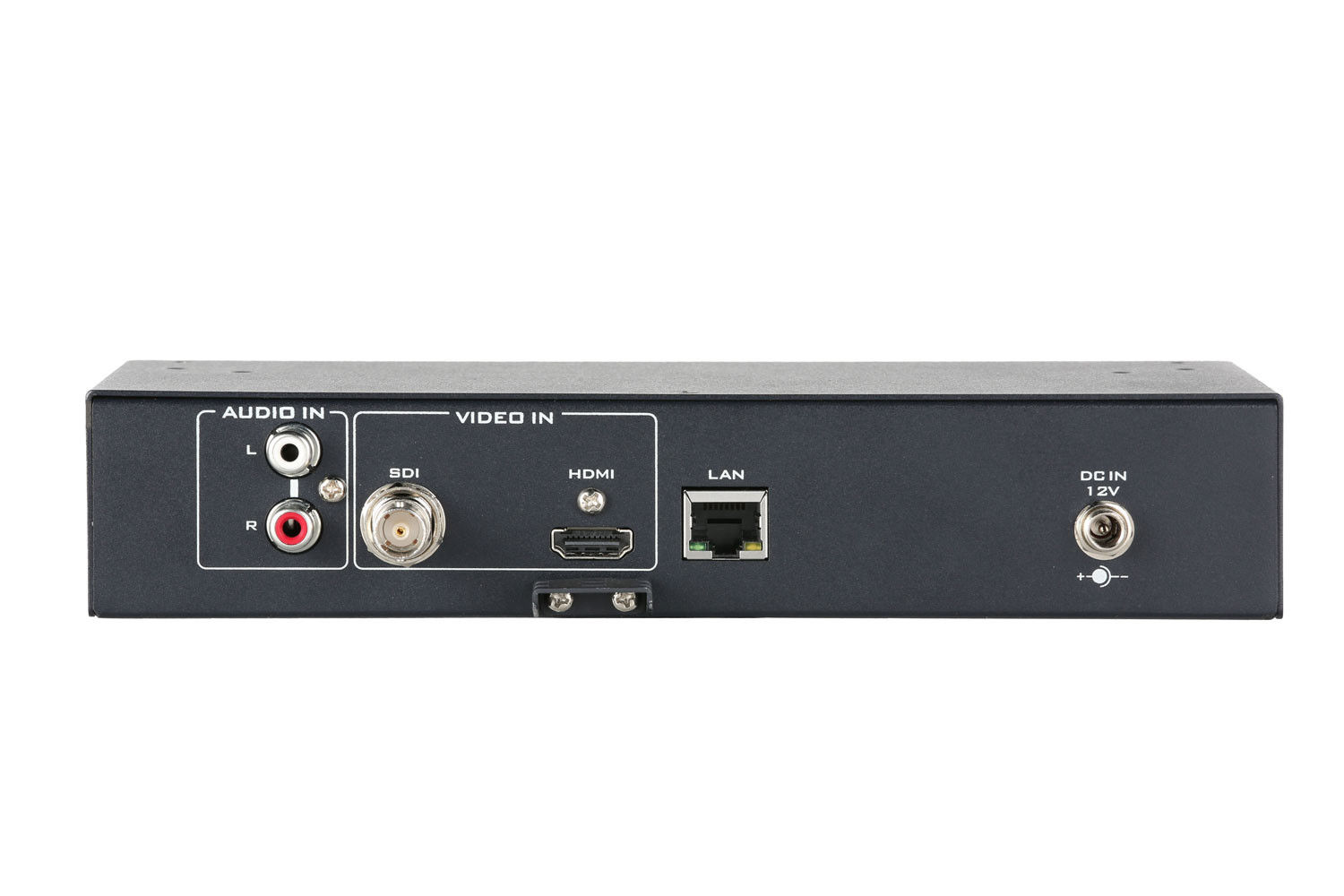

1x SDI / HDMI inputNVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
Support RCA unbalanced audio inputAlso support SDI / HDMI embedded audio.
Streaming videos in RTMPS, RTMP, RTSP, and TS formatsEasy stream to YouTube, Facebook, and many other platforms.
Record on SD cardEasy to store. The NVS-33 can record MP4 or TS file to an SD card.
Supports FAT /NTFS file systemRecording to SD Card with either NTFS and FAT file system to keep the continuous recording without file size limitation.
Remotely controlled by Windows or MacRemotely controlled using a Windows / Apple PC or mobile device with a web browser.
Specifications:Video Input
• HDMI x1
• SDI x1
Supported Video Input Resolution
• 1080p 60/59.94/50
• 1080p 30/29.97/25/24/23.98
• 1080i 60/59.94/50
• 720p 60/59.94/50
• 480i 59.94, 576i 50
Audio Input
• SDI & HDMI embedded audio
• RCA L/R x1
Encode
• H.264/AVC, Main/High Profile
Video Bitrate
• Record Only: Up to 16Mbps (1080p50/60)
• Stream Only: Up to 10Mbps (1080p50/60)
• Rec+Stream: 10Mbps (1080p25/30)
Video Rate Mode
• CBR/VBR
Audio Mode
• Stereo/Mono
Audio Bitrate
• Stereo: 64384Kbps
• Mono: 32192Kbps
Streaming Protocols
• TS over TCP/UDP (unicast & multicast)
• RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
• RTMP/RTMPS (Publish)
• HLS
Recording File Format
• MP4, TS
Storage
• SD Card x1
• (File System: NTFS, FAT)
Power Supply
• DC 12V
Dimension (LxWxH) : 220 x 95 x 47 mm
Weight : 0.7 kg
Operating Temp. Range : 040 C
Verified Compatible SD Cards : Kingston SDHC C10 (16GB)
Sandisk Extreme SDXC C10 U3 V30 (64GB); Extreme PRO SDXC C10 U3 (128GB); Extreme SDHC C10 (16GB); Ultra SDHC/SDXC UHS-1 (128GB)
Sony SDXC C10 U1 (64GB); SDXC C10 U3 (64GB)
Toshiba SDHC C10 (16GB)
ADATA Premiere Pro microSDXC UHS-1 U3 Class 10 with SD adapter (64GB)
Unirex SDHC UHC 1, U1 Class 10
Samsung EVO microSD Card (SD Adapter) UHS-1 Speed Class 1 (U1), Class 10
