Echo INDIGO Pro Audio Playback Card

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

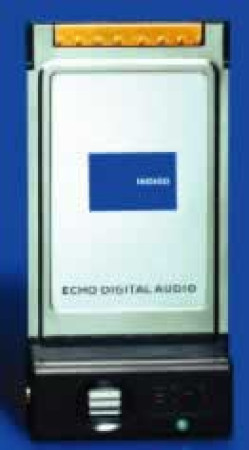

echo indigo
It's the original award-winning Echo Indigo pro audio playback card! People all over the world have discovered the joy of listening to high fidelity audio on their notebook computers with the Indigo. No more noise!! The Indigo replaces your notebook computer's onboard sound chip to give you pristine, crystal-clear audio playback.




This high quality stereo output device is ideal for listening to CDs and DVDs on the road, mixing professional audio, and you can even use it for live performance applications. The Indigo offers one stereo 1/8 inch analog output on a Type II Cardbus card powered by your notebook computer. It combines this with 24-bit/96kHz converters for the quality you deserve. It also includes a headphone amplifier for powering studio headphones, and the stereo output is duplicated on a second jack so you can share your music with a friend.

A unique feature of the Indigo is the use of "virtual" outputs. Indigo appears to software as if it has eight separate outputs, which are digitally mixed down to the physical outputs using Indigo's "console" software and its on-board DSP. This makes Indigo compatible with all popular multi-track software. And, with Echo's "multi-client" drivers, more than one application (such as an editor and a software synth) can be playing back through Indigo at the same time.

HARDWARE FEATURES:
• 1 stereo 1/8" analog output (duplicated on two separate jacks)
• High quality headphone amp
• Analog volume control knob
• Supports true 24 bit, 96 kHz audio
• 100 MHz 24 bit Motorola DSP
• Powered by your notebook computer
• Type II Cardbus slot required

SOFTWARE FEATURES:
• Software console for metering, and setting levels
• Supports Windows Me/2000/XP and Macintosh OS X (Jaguar & Panther)
• Supports pro audio software (WDM Kernel Streaming, ASIO, GSIF, and CoreAudio)
• 8 "Virtual Outputs" - run multiple applications at the same time
• Low-latency drivers

SPECIFICATIONS:
Analog Output:
• 2 stereo 1/8" connectors (duplicating one stereo output signal)
• Frequency Response: 10Hz-22kHz, 0.25dB
• Dynamic Range: 111dB A-weighted
THD+n: <0.003% A-weighted
• Nominal Output Level: -10dBV
General Converter Specs:
• 128x Oversampling converters
• 24 bit data resolution maintained throughout signal path
• Multiple sampling rates supported: 32k, 44.1k, 48k, 88.2k, 96k
General:
• On-board 24-bit Motorola DSP for mixing and monitoring
• Headphone amp with volume control
Host Interface:
• Bus mastering CardBus host interface

Additional Information

UPCN/A
SKUINDIGO
ManufacturerEcho Audio
Product ConditionNew - On Clearance
ReturnableNo
