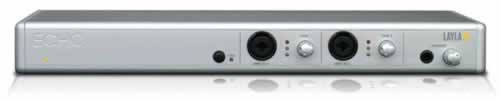

Echo LAYLA3G PCI Multitrack Digital Recorder

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

echo layla3g
Layla3G is the perfect center for any professional studio. It has 2 universal inputs with mic preamps, 6 balanced analog inputs, 8 balanced analog outputs, and a stereo headphone output.

ADAT lightpipe, optical and coaxial S/PDIF, and MIDI are included as well. Layla3G comes with a 15' cable and PCI card that connects to the audio interface. Layla3G is compatible with PCI-X (3.3 or 5 volt) motherboards and Power Mac G5 computers, as well as older systems.

Hardware Features:
* 2 auto-sensing universal inputs (mic/guitar/line): Meters, trim knobs, phantom
power, & channel inserts
* 6 balanced " analog inputs:
113dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels
* 8 balanced " analog outputs:
114dB (A-weighted) dynamic range
+4dBu / -10dBV nominal levels
* S/PDIF I/O (coax & optical) at 24-bit/96kHz
* ADAT optical digital I/O
* MIDI I/O
* Stereo headphone output with volume knob
* Sync via word, S/PDIF, ADAT, or MTC
* Supports full duplex 16 channel in, 16 channel out operation
* Rack mountable single space breakout box
* Heavy-duty aluminum case
* 15' cable to connect to PC
* PCI bus mastering interface:
Bus powered
Works with PCI-X (3.3/5 volt) & Power Mac G5
* A/D & D/A converters in external breakout box
* 56-bit / 100mHz DSP for digital mixing
Near zero latency hardware monitoring

SOFTWARE FEATURES:
* Software console for monitoring, metering, and setting levels
* Low-latency drivers support all major pro audio software:
* Low Latency ASIO 2.0
* GSIF 2.0 (Gigastudio 3 w/ low latency MIDI)
* WDM kernel streaming mode
* CoreAudio & CoreMIDI
* Surround sound support:
5.1 & 7.1 output w/ delay management
AC3, DTS, & WMA9 output over S/PDIF
* SuperChannel' resource sharing:
Split I/O between multiple applications
* PureWave' mode for bit accurate digital I/O

SYSTEM REQUIREMENTS:
PC System requirements:
* Windows ME/2000/XP
* Genuine Intel Pentium or AMD Athlon CPU
* Motherboard with Intel, AMD, Via, or NVIDIA chipset
* 256 MB RAM (512 MB recommended)

Mac System Requirements:
* Mac OS X (10.2 or later)
* G4 or better processor (Power Mac G5 compatible)
* 256 MB RAM (512 MB recommended)

Free Audio Software Included!:
Tracktion, hailed as the easiest to use professional recording and MIDI production software in the world, is a radical new type of music production software - giving you a clean, intuitive, and clutter-free interface without losing professional features like drag-and-drop editing, a built-in sampler, VST plug-in support, track freezing and more... all right at your fingertips.


Additional Information

UPCN/A
SKULAYLA3G
ManufacturerEcho Audio
Product ConditionNew - On Clearance
ReturnableNo
