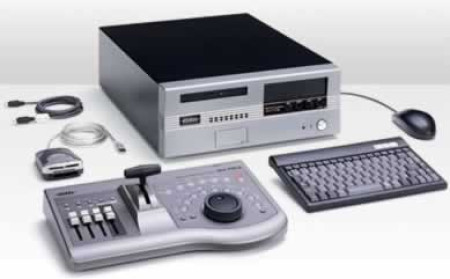

edirol dv-7dlpro
With a focus on creativity and productivity, Direct Linear editors from Edirol bring outstanding stability, ease-of-use and expressiveness. They offer a world without loss or interruption that combines the feel of linear editing with the flexibility of non linear editing. A world where the edit comes first, where the feel is real.

The DV-7DL PRO supports the pursuit of excellence in editing as a stand-alone machine.
As a stand-alone machine, the DV-7DL PRO offers no compromise in operation, high quality video, maximum expression and reliability. Benefits include professional, stress free, operation and timely results. Avoiding downtime and supporting creativity is the way to go.

Non-stop editing provides continuous creativity
Most operations can be done from a single menu! The world leading first Non-stop editing system makes it easy to edit your ideas while playing back the video. In addition, most of the operations can be made from a single user-friendly edit menu screen.

The Titler enhances the creativity and quality of your video.
DV-7DL offers two title tracks, each supporting separate titles. You can also create a variety of titles by using the "Text" function that offers multiple fonts and styles: the "Graphic" function that offers a straight line, curved line, ellipse, and square formats; the "Background" function that offers your choice of background images; and the " Title in/out " function that sets the points of title in and out. Additionally, picture images and text can be imported using a memory card, CD-ROM, or PC. The Titler supports 16:9 wide screen mode.

A/B Roll Editing and the T-Bar controller offers the intuitive feeling of linear editing.
Intuitive A/B Roll Editing is a key feature of Direct Linear where you can clearly feel the evolution of the Direct Linear concept. Two different video sources can be edited directly and simultaneously in 100% real time offering the live feel of linear editing.

Create vivid movement and depth from still images.
Versatile expression from still pictures. Photos from a digital camera or still images imported directly from CD-ROM or card reader can brought to life. Transition between specified points in a photo, or zooming or panning to a point can be achieved. By making these movements sequentially, you can create a very natural and vivid movie or scene.

Recording time
Internal hard drive: Approximately 5 hours
Optional external hard drive (DV-HD120): Approximately 9 hours

Capture
DV (audio: 48kHz/32kHz) - Auto Split supported.
S-Video/Video (composite)
Audio (L,R/Mic/CD)
Still Picture (CD/Memory card with memory card reader)

Edit tracks
Video track x 2 (Main video \\& Insert video)
Title track x 2
Effect track x 1
Audio track x 4 (Stereo)
A/B Roll control track x 1 ( A/B Roll edit mode)

Edit windows
Time Line edit
Story Board edit
A/B Roll edit

Real time effects
Dissolve
Wipe
Master Fade
Color Correction (brightness,contrast, saturation, RGB level)
Monotone
Posterization
Colorization
Negative
Double Exposure
Realtime PinP
Realtime Luminance Key
Realtime Chroma Key
Split Screen
Audio effects(4 band EQ, ALC/Compression, Delay, Limiter, Mixer, Reverb,Pro Reverb, RSS 3D effect, stereo spreader)

Titler
Text Body: Fonts, Size, Color (Mono/Gradation/Texture), Transparency, Edge (Color/Level/Transparency)
Edge: Anti-aliasing Processing
Others: Draw Objects (10 types), Still picture capture, object alignment, 16:9 mode, Roll/Crawl setting with real time preview.

Special effects
Page Turn
Alpha Wipe
Flight
Rotation
Zoom Flip
Slide
Stretch
Cross Stretch
Cross Zoom
Swap
Cross Mosaic
Page Peel
Diffusion
Door
Nostalgia
Sepia
Mosaic
Blur
Fish-eye
Spot
Animation
PinP
Chroma Key
Luminance Key
Crop
Swing
Slow Motion
Fast Motion/Reverse Motion
Strobe Motion
Mirror
After Image
Zoom Pan

Others
Alteration of audio playback mode, Video data error correction, Hard disk error check, MTC/MMC support.

MAIN SPECIFICATIONS:

Video signal
NTSC or PAL

Video format
DV/DVCAM
Video: IUT601(Y, Cr, Cb: 4:2:2:, 8bit)
Audio: sampling rate 48kHz, resolution 16bit

Video input/output
DV(i-Link) IN/OUT (4-pin IEEE1394 jack x 2,)
S-Video input,
mini DIN 4 pin x 1 (Y:1.0Vp-p, C:0.286Vp-p, 75ohm)
Video (composite) input,
RCA pin type x 1 (Y: 1.0Vp-p, 75ohm)
S-Video output mini DIN 4 pin x 1 (Y: 1.0Vp-p, C:0.286Vp-p, 75ohm)
Video (composite) output RCA pin type x 1
(Y: 1.0Vp-p)

Audio input/output
Audio input (L, R) RCA pin type x 1
Audio output (L, R) RCA pin type x 1
Mic input TRS balanced 1/4 phone type
Headphones output (L, R) 1/4 type

Display output
Analog RGB 1,024 x 768 (fixed), mini D-sub 15 pin

Memory device
Internal hard drive 80GB.
Removable hard drive bay
(only for optional DV-HD series).

Interfaces
PS/2 mini DIN 6 pin x 2
(ASCII keyboard and mouse).
Remote connection USB1.1 x 4
(DV-7DLC controller, DL-CR1
card reader or optional Edirol MIDI devices).

Power
AC100V 120V/AC220V-240V (50/60Hz)
switchable.

Power Consumption
90W

Dimensions
360(W) x 420(D) x 130(H)mm

Accessories
Optical mouse (PS/2),
Mouse pad, AC cord,
DV cable (1.5m),
Owner's manual,
DV-7DLC controller,
DL-CR1 USB card reader.

Additional Information

UPCN/A
SKUDV-7DLPRO
ManufacturerEdirol
Product ConditionNew - On Clearance
ReturnableNo
