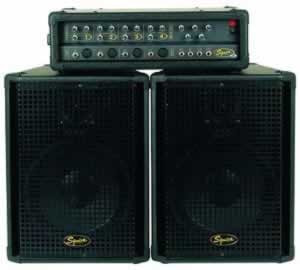

Whether you're putting a band together in your basement or taking your solo act to the local coffeehouse, the Squier 4 includes a 70-Watt, four-channel mixer and two high-performance 10-inch speakers.
SPECIFICATIONS PRE-AMP SECTION:• Mic Input Impedance: 2.7K ohms.
• Line Impedance: 100K ohms.
• Mic Input Sensitivity: 2 mV.
• Line Input Sensitivity: 6 mV.
• Channel Tone Controls:
Low +/- 15 dB @ 30 Hz,
Mid +/- 15 dB @ 1kHz,
High +/- 15 Db @ 15 kHz.
• Overall Amp Frequency Response: -3 dB @ 10 Hz to -3 dB @ 50 kHz (Aux In @ 10 mV).
• Phantom Power: +15 V DC.
POWER-AMP SECTION: • Power Output: 80 Watts @ <0.03% T.H.D. + Noise @ 1 kHz Into 4 ohms.
• Rated Load Impedance: 4 ohms.
• Input Sensitivity: 34 mV.
SPEAKERS:• Frequency Response: 75 Hz - 20kHz.
• Power Handling: 120 Watts.
• Impedence: 4 ohms.
• Low Frequency Driver: 1 Special Design 10" Speaker with 1.5" Voice Coil.
• High Frequency Driver: 1 Piezo-electric Driver with Horn.
• Sensitivity: 94 dB, 1Watt - 1Meter.
• Maximum Output SPL @ 1 M: 111dB Continous, 117 dB Peak.
FEATURES AMPLIFIER / MIXER:• 4 Input Channels (1/4" TS Phone and 3-Pin XLR Input Connectors).
• 3-Band Master Equilize.
• Main Output Level Control.
• Master Reverb Control.
• Phantom Power (+15V DC).
• Individual Channel Effects Level Control.
• Individual Channel EQ Control.
• Individual Channel Level Control.
• Patch Points for Line Level Outboard Gear.
• Full Bodied Spring Reverb.
• Footswitch Jack for Optional Remote Reverb On/Off Footswitch (p/n 0048458000).
SPEAKERS:• Two Full-Range 120 Watt Speaker Enclosures.
• Pole Mount Sockets.
• 1/4" Input Jack.
