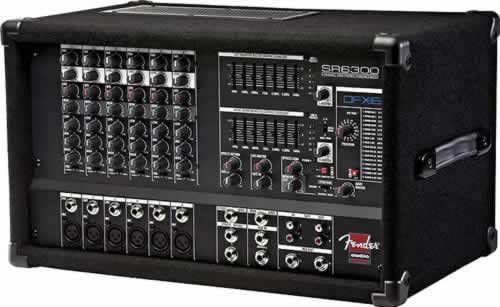

Fender SR6300 6-Channel 300 watt Mixer

fender sr6300
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon
The full featured SR6300 & SR8500 stereo powered mixers are pro-quality mixers that offer solid performance without empting your pocket book.


Designed to meet Fender Audio's strict quality standards, the SR6300 & SR8500 are designed for low noise with electronically balanced inputs. The controls offer flexibility. The dual 7 band graphic EQ allows you to fine tune your sound. The stereo power amps work in left/right, main/monitor and bridged modes. The DSP multi-effects complete the mixers.

Whether you're in a band, house of worship, making a presentation, or using the mixers in a school, the New SR6300 & SR8500 can custom tailor your sound to your application.

FEATURES:
• ON-BOARD DSP MULTI-EFFECTS SIGNAL PROCESSING
• 6 INPUT CHANNELS
• 300 WATTS @ 8 ohms BRIDGED TO MONO
• 3 BAND CHANNEL EQ
• MIC, LINE, TAPE IN, AUX IN AND EFFECTS RETURN JACKS
• EFFECTS SEND, MIX OUT, MONITOR OUT AND RECORD OUT JACKS
• 1/4" AND XLR INPUT CONNECTORS
• +46 VDC PHANTOM POWER
• DUAL 7 BAND GRAPHIC EQ

SPECIFICATIONS:
Mixer Section
• Number of Channels: /Type 6 Mono Input
• Channel Connectors: XLR + Balanced 1/4" TRS
• Channel Controls: Pan, Level, DFX, Monitor
Channel EQ
• High: 12 KHz +/-15dB
• Middle: 2.5 KHz +/-12dB
• Low: 80 Hz +/-15dB
• Frequency Response: -3.0 dB @ 20Hz - 20KHz
Pad -20dB
THD 0.1%
• Master EQ: +/-12 dB at 64, 160, 400, 1k, 2.5k, 6.3K, 16K
• Input: Sensitivity
• Mic: -50dBm
• Line: -20dBm
• Tape In: -10dBm
• Aux In: -10dBm
• Effect Return: -10dBm
• Output Level
• Effect Send: +4dB
• Mix Out: +4dB
• Monitor Out: +4dB
• Rec Out: +4dB
• Residual Noise (nominal settings): -80dB
• Channel Crosstalk: @ 1 KHz -80dB
• Phantom Power (Volts): +46 VDC
• DSP Hall Reverb 1 & 2
• Room Reverb 1 & 2
• Plate Reverb 1 & 2
• Reverb + Delay 1 & 2
• Feedback Delay 1, 2, 3, & 4
• Reverb + Chorus 1 & 2
• Reverb + Flange 1 & 2
• Power Amp
• RMS Power Output
• Stereo 4 Ohms 150 Watt x 2
• Stereo 8 Ohms 100 Watt x 2
• Bridged 8 Ohms 300 Watts
• Frequency Response: 20Hz - 20 KHz +0/-1dB
S/N Ratio 90dB
• Channel Separation: 8W 90dB
• Power Source: AC100V/50Hz, AC120V/60Hz, AC230V/50Hz, AC240V/50Hz
• Power Consumption: Watts 550W

Additional Information

UPCN/A
SKUSR6300
ManufacturerFender Audio
Price$449.99
Product ConditionNew - On Clearance
