Fender SR8500 8-Channel 500 watt Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

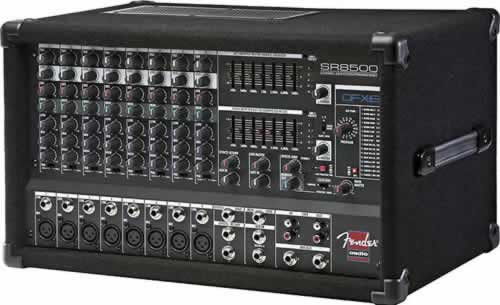

fender sr8500
The full featured SR6300 & SR8500 stereo powered mixers are pro-quality mixers that offer solid performance without empting your pocket book.


Designed to meet Fender Audio's strict quality standards, the SR6300 & SR8500 are designed for low noise with electronically balanced inputs. The controls offer flexibility. The dual 7 band graphic EQ allows you to fine tune your sound. The stereo power amps work in left/right, main/monitor and bridged modes. The DSP multi-effects complete the mixers.

Whether you're in a band, house of worship, making a presentation, or using the mixers in a school, the New SR6300 & SR8500 can custom tailor your sound to your application!

FEATURES:
• ON-BOARD DSP MULTI-EFFECTS SIGNAL PROCESSING
• 8 INPUT CHANNELS
• 300 WATTS @ 8 ohms BRIDGED TO MONO
• 3 BAND CHANNEL EQ
• MIC, LINE, TAPE IN, AUX IN AND EFFECTS RETURN JACKS
• EFFECTS SEND, MIX OUT, MONITOR OUT AND RECORD OUT JACKS
• 1/4" AND XLR INPUT CONNECTORS
• +46 VDC PHANTOM POWER
• DUAL 7 BAND GRAPHIC EQ

TECHNICAL SPECIFICATIONS:
Mixer Section
• Number of Channels:/Type 6 Mono Input
• Channel Connectors: XLR + Balanced 1/4" TRS
• Channel Controls: Pan, Level, DFX, Monitor
Channel EQ
• High: 12 KHz +/-15dB
• Middle: 2.5 KHz +/-12dB
• Low: 80 Hz +/-15dB
• Frequency Response: -3.0 dB @ 20Hz - 20KHz
• Pad: -20dB
• THD: 0.1%
• Master EQ +/-12 dB at 64, 160, 400, 1k, 2.5k, 6.3K, 16K
Input Sensitivity
• Mic: -50dBm
• Line: -20dBm
• Tape In: -10dBm
• Aux In: -10dBm
• Effect Return -10dBm
Output Level
• Effect Send: +4dB
• Mix Out: +4dB
• Monitor Out: +4dB
• Rec Out: +4dB
• Residual Noise: (nominal settings) -80dB
• Channel Crosstalk: @ 1 KHz -80dB
• Phantom Power (Volts): +46 VDC
• DSP Hall Reverb 1 & 2
• Room Reverb 1 & 2
• Plate Reverb 1 & 2
• Reverb + Delay 1 & 2
• Feedback Delay 1, 2, 3, & 4
• Reverb + Chorus 1 & 2
• Reverb + Flange 1 & 2
• Power Amp
RMS Power Output
• Stereo 4 Ohms 250 Watt x 2
• Stereo 8 Ohms 175 Watt x 2
• Bridged 8 Ohms 500 Watts
• Frequency Response: 20Hz - 20 KHz +0/-1dB
S/N Ratio 90dB
• Channel Separation: 8W 90dB
• Power Source AC100V/50Hz, AC120V/60Hz, AC230V/50Hz, AC240V/50Hz
• Power Consumption Watts: 900W

Additional Information

UPCN/A
SKUSR8500
ManufacturerFender Audio
Product ConditionNew - On Clearance
ReturnableNo
