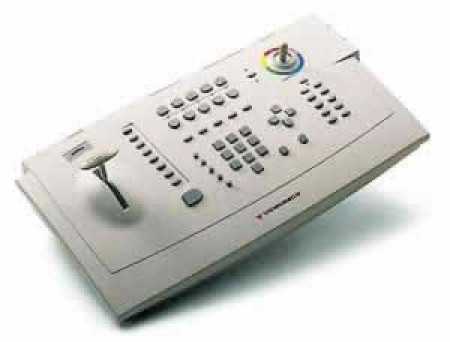

Focus MXPRO-3000 4 CH Pro Digital Video Mixer

Your reputation depends on the quality of your videos. Videonics' 10-bit (4:2:2) video technology takes video quality to a new level.

The MXPro boasts a signal-to-noise ratio of better than 60 db and bandwidth of 5.5 MHz. These enhancements, together with Videonics' full frame time base correction, deliver the kind of video quality you demand.

FEATURES:
• Four-input video production switcher, mixer, frame synchronizer, time base corrector, manual color corrector and special effects generator
Automatically corrects time base to RS-170A standard
• Over 500 video effects and shapes
• Background color generator
• Built-in audio mixer with background music feature
• S-Video and composite video inputs on all four channels
• Color bar and black burst generators

SPECIFICATIONS:
• Power Supply: External inline; 110VAC@60Hz/220VAC@50 Hz universal
FCC/UL/CSA approved (non-US/Canada versions meet local regulatory standards)
• Dimensions: 16.6" x 9.5" x 3" (422mm x 241mm x 76mm)
• Ambient temperature: 32-104F (0-40C)
• Ambient humidity: Less than 90%
Inputs:
• Video: 4 x S-video (Y/C): Y=1 Vp-p, C=0.30 Vp-p, 75-ohm, 4-pin mini-DIN connectors 4 x composite: 1.0 Vp-p 75-ohm, RCA connectors
• Audio: 8 x RCA connectors, 15 k ohms
• GPI: Mini-Jack
Outputs:
• Video (PREVIEW and MAIN): 2 x 1.0 Vp-p, 75 ohm, PREVIEW=1x RCA; MAIN=2x RCA Connectors 2x S-Video (MAIN): Y=1.0 Vp-p, C=0.3 Vp-p; 75 ohm, 4-pin mini-DIN connector
• Audio (L and R): 1 k ohms, RCA connectors
• Headphone: Stereo jack, 8-100 ohms, mono signal
Effects:
• Video: 501 (see partial list under FEATURES)
• Color Generators:
2 (background and border), unlimited colors
• Video Performance:
Meets long-haul video broadcast specs including CCIR-601 sampling and RS-170A
• Digital conversion: 13.5 MHz, 4:2:2, 10-bit quantization
• Time base meets RS-170A standard
• Compatible with all NTSC videos sources and tape formats (PAL version available)
• Gain: Unity
• S/N Ratio: Greater than 60 dB
• Horizontal Resolution: 480 TV lines
Audio Performance:
• Frequency response: 20 Hz-20 kHz, 3 dB
• S/N ratio: 80 dB
