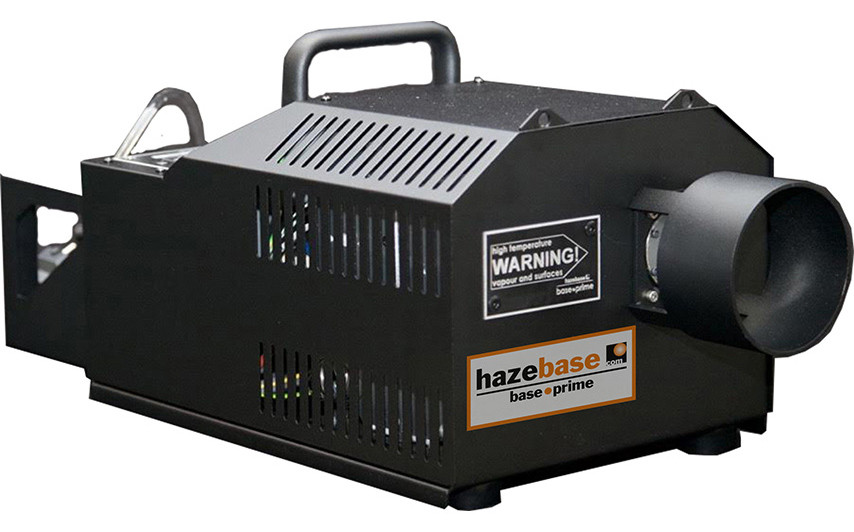

HazeBase BASE PRIME Fog Machine

• Control via DMX, Art-Net, sCAN, analog (0-10V), manually or a variable stand-alone built in timer.
• The Base Prime is a 3000-Watt 230V/50Hz. Full operation is achievable in less than 15 minuets.
• Four choices of pharmaceutical grade, water-based fluid designed specifically for Hazebase.
• Mounting and control accessories are available for complete versatility for multiple applications.

Power supply: 230 V AC, 50 Hz
Procedure: Vaporizing fog generator
Power requirement: 3100 Watt
Warm up time: Approx. 15 min.
Fluid consumption: At max. output 260 ml/min; at cont. output 150 ml/min
Fluid tank capacity: 5 Liter
Fog output: Adjustable in steps 1% ( 0-99)
Fogging time: At 100% output approx. 60 sec; at < 50% output continuous output
Control: DMX 512, Art-Net, sCAN; 0-10 V analog internal timer
Temperature control: Microprocessor controlled
Overheating protection: Heater block/thermostat Pump/thermal switch
Dimensions (L x B x H ): 58 x 23 x 25 cm
Weight without fluid: 16 kg
