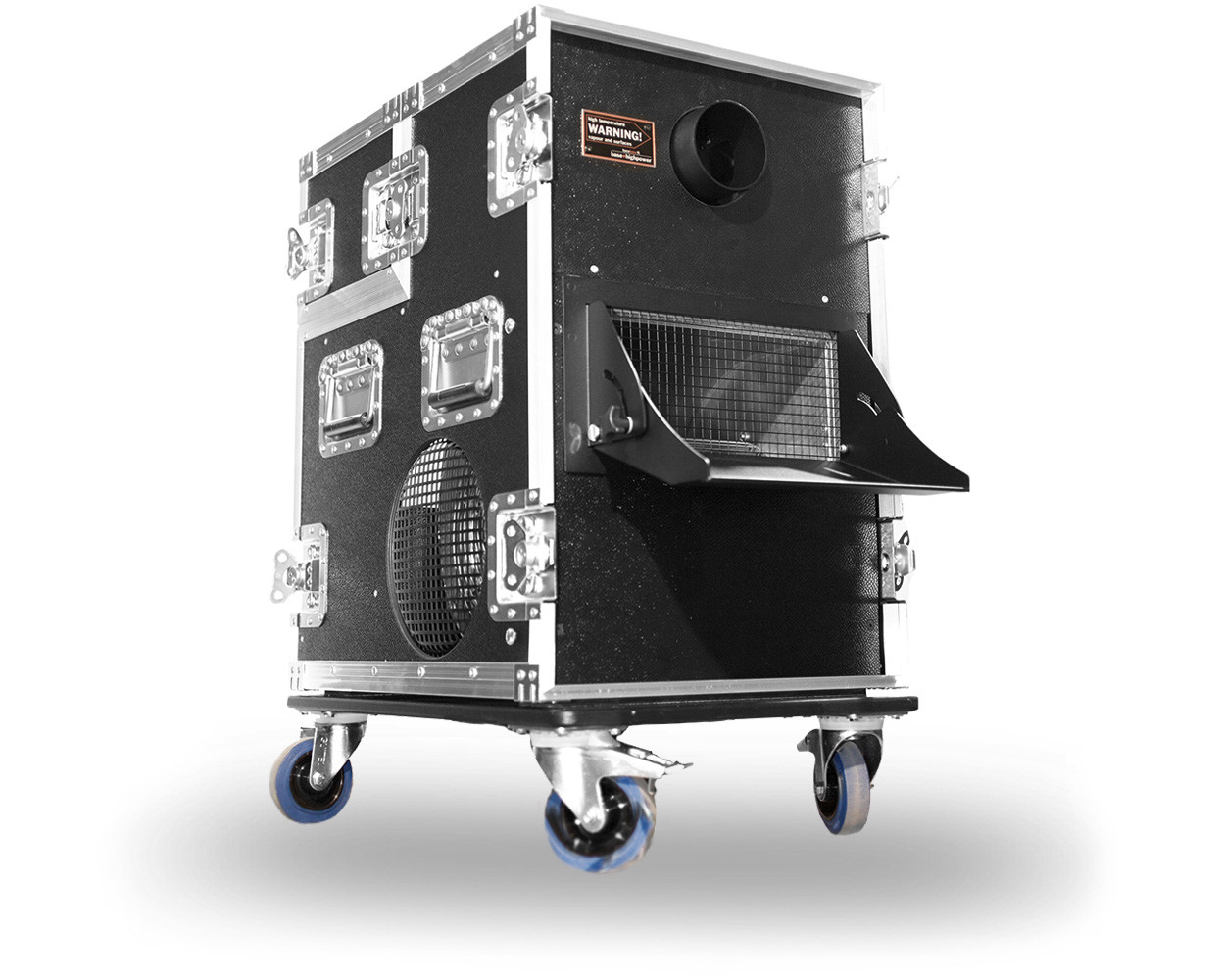

HazeBase BASE TOURING Fog Machine

• Control via DMX or a variable stand-alone built in timer or DMX operation.
• The Base Touring is a 2600-Watt 230V/50Hz. With a 700W controllable Fan. Full operation is achievable in less than 14 minuets.
• Efficient fluid consumption ranges from 120ml/min at minimum output to 240 ml/min maximum output.
• Four choices of pharmaceutical grade, water-based fluid designed specifically for Hazebase.

Power supply: 230 V AC, 50 Hz
Procedure: Vaporizing fog generator
Power requirement: 2600 W / 50 Hz, plus 700 W fan
Warm up time: Approx. 7 min.
Fluid consumption: At max. output 240 ml/min; at cont. output 120 ml/min
Fluid tank capacity: 5 Liter
Fog output: Adjustable in steps 1% ( 0-99)
Fogging time: At 100% output approx. 60 sec; at < 50% output continuous output
Control: DMX 512; 0-10 V analog internal timer
Temperature control: Microprocessor controlled
Overheating protection: Heater block/thermostat pump/thermal switch
Dimensions (L x B x H ): 96 x 38,1 x 69 cm
Weight without fluid: 70 kg
