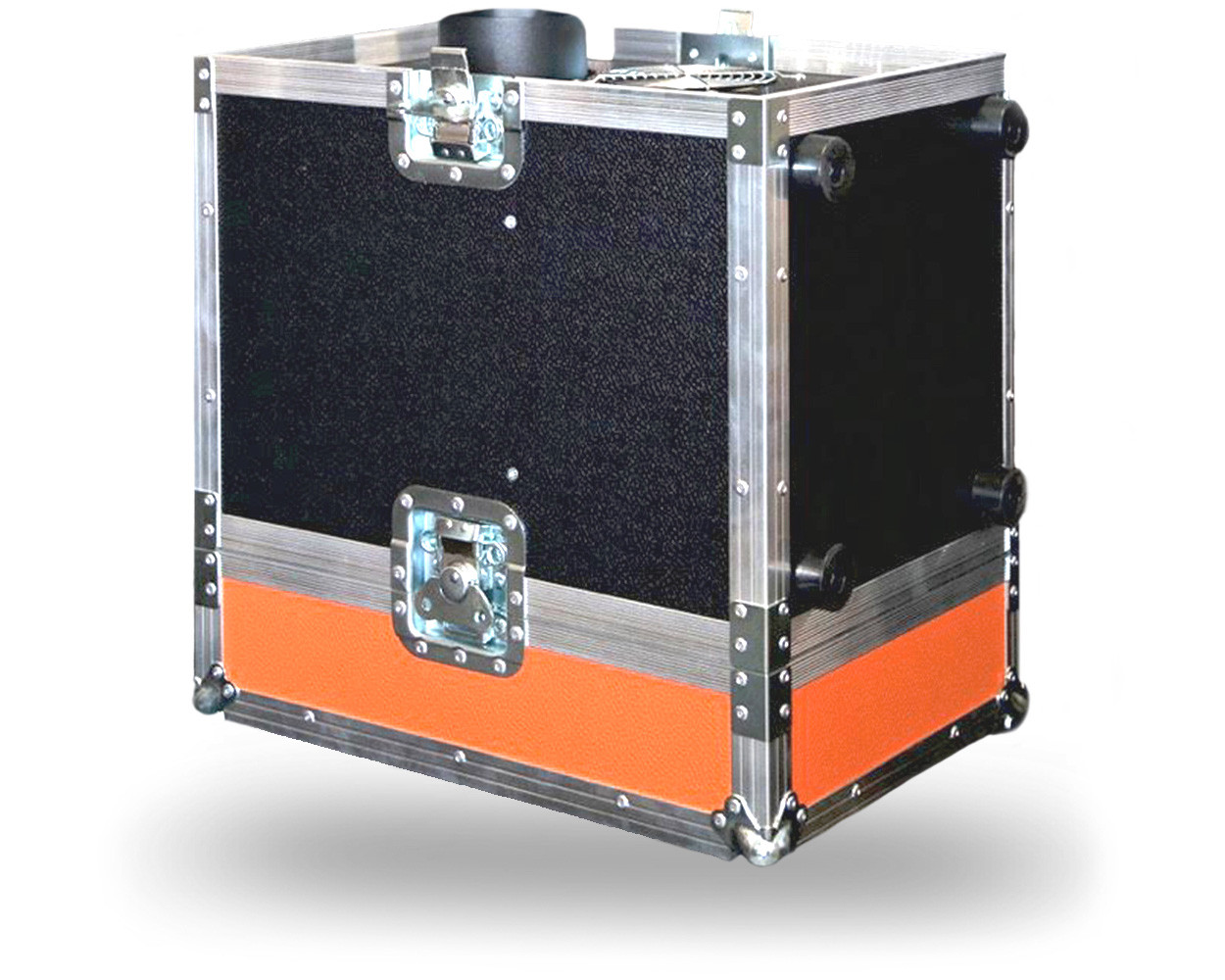

HazeBase BASE VERTICAL Fog Machine

• Control via DMX or a variable stand-alone built in timer or DMX operation.
• German made, Amptown Road Case Company designed a rugged housing for the unit and internal pumps are fitted with shock absorption.
• The Base Vertical is either an Efficient 1300-Watt 230V/50Hz or 110v/60Hz. Full operation is achievable in less than 7 minutes.
• Efficient fluid consumption ranges from 120ml/min at maximum output to 35 ml/min at 1%.
• Efficient fluid consumption ranges from 120ml/min at maximum output to 35 ml/min at 1%.
• Mounting and control accessories are available for complete versatility for multiple applications.

Power supply: 230 V AC, 50 Hz; 110 V AC, 60 Hz optional
Procedure: Vaporizing fog generator
Power requirement: 1300 Watt
Warm up time: Approx. 7 min.
Fluid consumption: At max. output 120 ml/min; at cont. output 35 ml/min
Fluid tank capacity: 5 Liter
Fog output: Adjustable in steps 1% ( 0-99)
Fogging time: At 100% output approx. 40 sec; at < 50% output continuous output
Control: DMX 512; 0-10 V analog internal Timer
Temperature control: Microprocessor controlled
Overheating protection: Heater block/Thermostat; pump/thermal switch
Dimensions (L x B x H ): 53 x 23 x 24 cm
