- Cue Color Match: Tailored for the control of cue points and sampler, the drum pads backlights match the default colour of each cue point in Serato DJ and DJ Intro, so that cue points control is natural and intuitive
- Air Roll, a hand gesture with the air control, gives access to a new sound, Filter Roll: rolling the hand over the air sensor produces a spectacular roller-coaster effect with a low-pass filter increasing, then decreasing, afterwards re-increasing in a rapid cycle

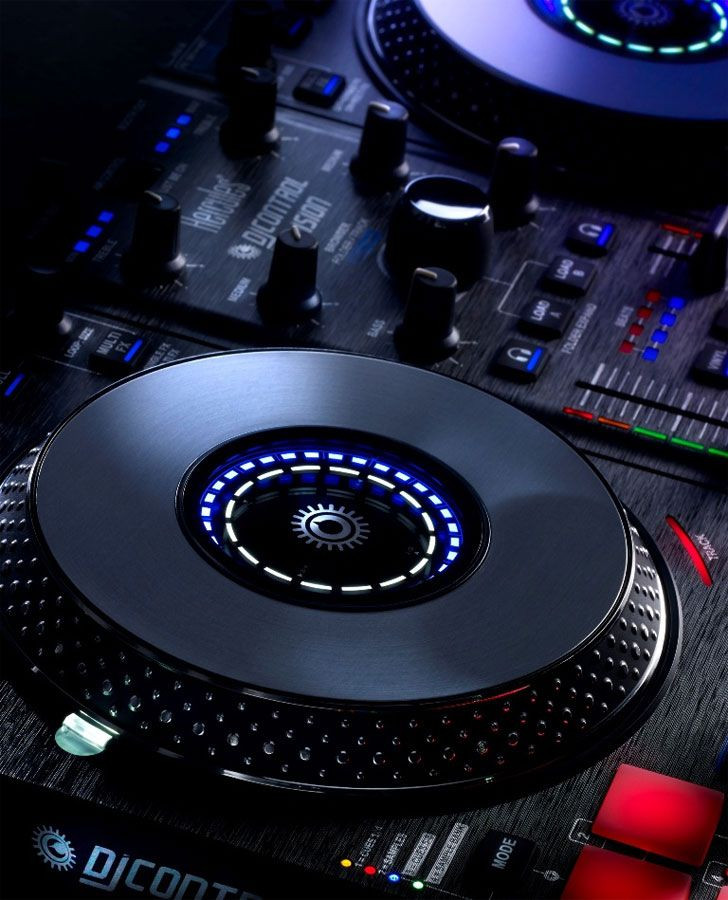

The in-jog displays are unique in this mobile DJ controller categoryThe jog wheels show 3 key pieces of information which visually guide your gesture for scratching and mixing!
• During playback : 2 rings = 2 pieces of information
• The blue ring's rotation speed shows the playback speed of the track
• The white ring's display shows the position within the track currently playing
• When scratching: the display shows the angular position.
Boost your performance• Thanks to the displays, focus on your performance instead of focusing on your computer screen
• Locate the target position at your fingertips, much faster than having to look up at the computer screen. Scratch with more precision and more easily!
You're a scratcher? Get the feel of CD deck platters• Both blue displays rotate at 33 RPM
• If you can scratch with two DJ CD players, you can scratch with DJControl Jogvision
• Whatever your scratching skills, the displays guides your hand's move
The powerful jog wheels emulate the feel of CD deck platters• 15 cm/5''90 : similar diameter to the platters on DJ CD players, the largest platters in its category
• Instant touch detection to scratch with high precision and with no latency
• Distinctive style : combination of the platters' aluminum and the display
2 sets of 4 drum pads - with RGB backlighting and Cue Color Match• When pressed, the drum pads do not depress, so trigger commands (samples or cue points) faster than other kind of pads
• Different colored backlighting depending on Sample mode or Cue point mode
Air Control: Unleash your creativity and improve your stage appearance thanks to the contactless sensor!The Air Control converts the distance between your hand and the sensor in modulation of the low-pass filter
• Control the low-pass filter without any contact, your hand moves create new sounds: Filter Push', Filter Cut', Filter Roll' (spectacular roller-coaster effect!)
• The Air control range of 12''/30 cm lets the bit magical DJ's hand movements be seen by the audience!
TECHNICAL SPECIFICATIONSMechanical specifications• Enclosure: 17.9 x 10"/45.5 x 25.4 cm
• Jog wheels: 5.9"/15 cm diameter
• Weight: 5.5 lbs/2.5 kg
StandardsAudio
• ASIO + WDM in Windows
• Core Audio in Mac OS
Controls
• MIDI (extended MIDI on faders + potentiometers)
• HID

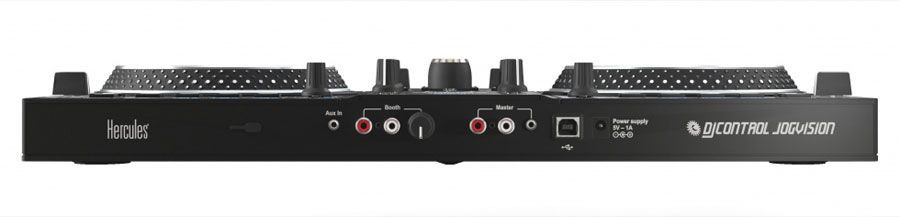

Outputs
• Master 1-2: 2 RCA + 1/8" stereo
• Booth 1-2: 2 RCA
• Headphones: 1/4" + 1/8" (stereo)
Inputs
• Mic: 1/4" microphone in
• Aux: 1/8" stereo line in
• Resolution: 16/24-bit audio at 44.1/48/96 kHz
MINIMUM CONFIGURATION• 2 GHz Core 2 Duo/Athlon 64 X2 or faster CPU
• 2 GB RAM or more, USB high speed port
• Internet access
• Operating system (32-bit/64-bit)
• Mac OS 10.7/10.8/10.9/10.10/10.11
• Microsoft Windows 7/8/10
