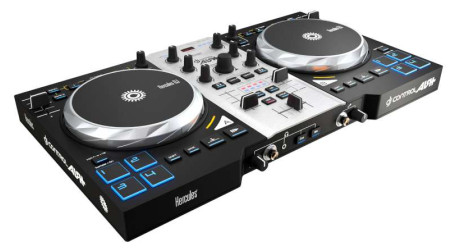

Hercules DJ Control Air + S Series DJ Controller

Add fun to your mix with the AIR control
• The contactless sensor lets you control the mix from above, without even touching the device, with 1 ft/30 cm of range
• DJ CONTROL AIR+ converts the vertical distance to your hand into a MIDI command

Velocity pads to express your creativity
• 4 velocity pads on each deck let you liven up your mixes
• Instantly trigger sample playback or hot cues with one touch
• The harder the pads are tapped, the louder the volume of the samples played

Ergonomic design
• Comfortable size: 17.7"/45 cm wide for plenty of space between controls while performing
• Soft rubber cladding on rotary caps and transport buttons for easier handling: fingers won't slip

Versatile microphone input
• High audio quality for balanced and unbalanced dynamic microphones
• 2 operating modes to integrate vocals into your mix:
• Direct pass-through: speak over the music
• Software processing: record your voice or add real-time effects to your voice

Technical specifications
2-deck DJ controller with audio
Great jog wheels for scratching
•Pressure detection: as intuitive for scratching as turntables
•Large diameter: 5.9"/15 cm
•> 750 steps per rotation
Built-in audio
Outputs
Master: 2 x RCA (line)
(ch. 1-2) 1 stereo ?" jack
Monitor: 1 stereo " jack
(ch. 3-4) (headphones)
1 stereo ?" jack
Microphone: input 1 x " (balanced)
AIR sensor
•Long range sensor > 11.8"/30 cm
•Vu-meter for AIR sensor

Box contents
•Hercules DJ CONTROL AIR+ S Series
•USB cable
•CD with DJUCED 40(PC/Mac)
•Printed + PDF installation guide

Minimum configuration
•Computer CPU: 1.6 GHz or faster Intel CoreTM 2 Duo or AMD 64-bit
•2 GB of RAM or more
•High-speed USB port (USB 2 or 3)
•100 MB available disk space
•CD/DVD-ROM drive
•Internet access
•Headphones + active speakers
Operating system (32/64-bit)
MS Windows Vista/7/8 or
Mac OS 10.7/10.8/10.9
