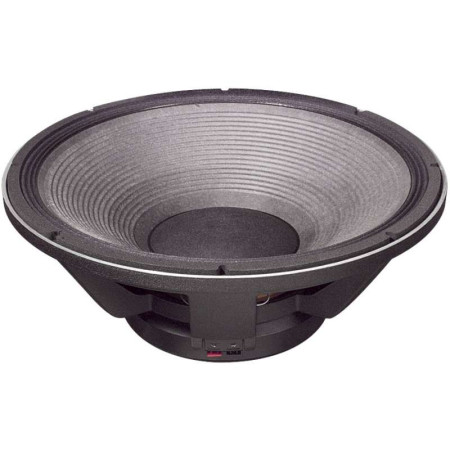

The 2241H 18" low frequency transducer represents the results of JBL's latest engineering research in high power transducer design. For increased power handling while reducing power compression, a unique direct voice coil-to-air heat dissipation method called Vented Gap Cooling has been used. This process pumps air through the magnetic gap and directly over and around the voice coil to provide immediate heat transfer and reduction in operating temperature.
Through the use of new computer-aided magnet optimization and analysis techniques comes a new weight-optimized Symmetrical Field Geometry (SFG) magnet structure, resulting in a reduction of overall driver weight and a significant reduction in harmonic distortion. This new magnet structure offers much of the weight advantage of rare earth magnet structures without their prohibitive cost.
• Nominal Diameter: 18"
• Power Handling (RMS): 600 Watts
• Power Handling (max): 1200 Watts
• Impedance: 8 ohms
• Frequency Response: 30 to 3,000 Hz
• Sensitivity: 98 dB 1W/1m
• Voice Coil Diameter: 4"
