JBL EON305 15" 2-Way Passive Speaker

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

jbl eon305
Images may show accessories or configurations not packaged with this item.

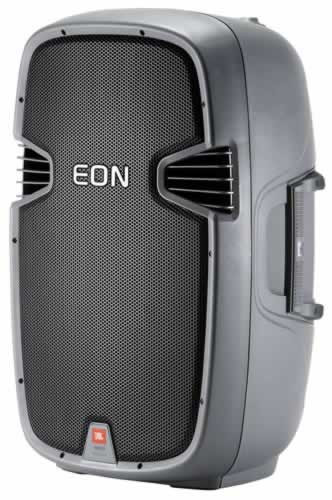

The EON305 is a 15-inch, two-way, passive, portable speaker system. It is a light weight loudspeaker system capable of fullbandwidth reproduction at high levels. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V waveguide. The system will handle 250 watts continuously and 1000 watts peak.

FEATURES:• 250 watt Passive Speaker System, with a 500 watt program power and 1000 watt peak power rating • Light Weight, at only 15 kg (33 lbs) it is truly portable • Multiple handles for easy transport • JBL 15" low-frequency driver with a 64mm (2 in) diameter edge wound ribbon voice coil • 1" throat diameter next generation JBL neodymium compression driver. • 100 H x 60 V asymmetrical waveguide for uniform audience coverage • SonicGuard' HF protection • NL4 and " input connectors • Loop thru signal flow for extended system application and easy "daisy-chain" connections • Integrated M10 suspension points for easy rigging • Multi angle enclosure for main or monitor applications • Integrated 36 mm pole mount socket with stabilizing securing screw • Highly designed composite enclosure for durability, lightweight, and acoustic performanceSPECIFICATIONS:• System Power Rating : 250 W continuous, 500 W program, 1000 W peak • Frequency Range (-10 dB) : 38 Hz - 20 kHz • Dimensions (H x W x D) : 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in) • Coverage Pattern : 100 H x 60 V nominal • Maximum SPL : 128 dB • Net Weight : 15 kg (33 lb)

Additional Information

Product ConditionNew - On Clearance
