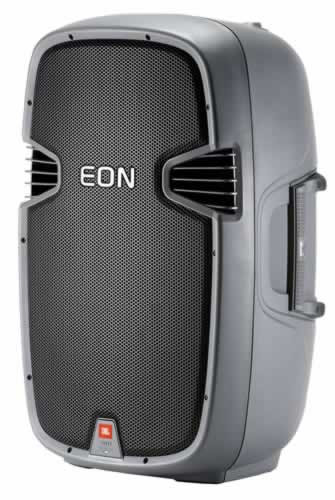

The EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and system EQ functionality.
FEATURES:• 280 watt Powered Speaker System • Light Weight. True portability weighing only 15.9 kg (35 lb) • Multiple handles for easy transport • 15" JBL low-frequency driver • 1" throat diameter next generation JBL neodymium compression driver • Efficient Class-D digital amplifier technology • 100 H x 60 V asymmetrical wave guide for uniform audience coverage • Line level and direct microphone input capability • Selectable Pre-engineered EQ settings • Loop thru signal flow for extended system application and easy "daisy-chain" connections • Integrated M10 suspension points for easy rigging • Multi angle enclosure for main or monitor applications • Integrated 36 mm pole mount socket with stabilizing securing screw • Highly designed composite enclosures for durability, lightweight, and acoustic performance
SPECIFICATIONS:• System Power Rating : 280 W continuous, 560 W peak • Frequency Range (-10 dB) : 38 Hz - 20 kHz (EQ in Flat' position) • Dimensions (H x W x D) : 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in) • Frequency Response (3 dB) : 50 Hz - 18 kHz (EQ in Flat' position) • Coverage Pattern : 100 H x 60 V nominal • Maximum SPL : 127 dB • Net Weight : 15.9 kg (35 lb)
