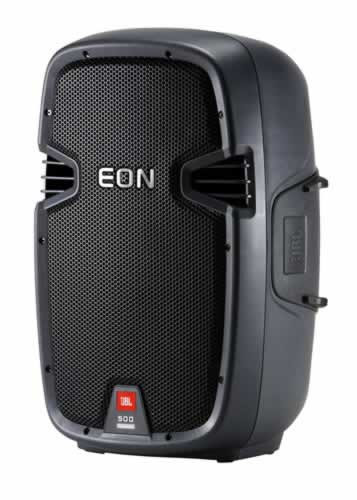

The EON510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON510 is comprised of a 254 mm (10 in) Differential Drive woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and mixer functionality.
FEATURES:• 280 watt High-Performance Powered Speaker System • Ultra Light Weight and Extremely Compact • Soft touch top grip for easy handling. • 10" Differential Drive low-frequency driver with neodymium magnet for low-distortion and light weight • 1" throat diameter next generation JBL neodymium compression driver • Efficient Class-D digital amplifier technology • Built-in 3 Channel Mixer • 100 H x 60 V asymmetrical waveguide for uniform audience coverage • Line level and direct microphone input capability • Selectable Pre-engineered EQ settings • Unique Mix/Loop signal flow function for extended system application • Easy "daisy-chain" connections for extending the system • Integrated M10 suspension points for easy rigging • Multi angle enclosure for main or monitor applications • Integrated 36 mm pole mount socket with stabilizing securing screw • Highly designed composite enclosures for durability, lightweight, and acoustic performance
SPECIFICATIONS:• System Power Rating : 280 W continuous, 560 W peak • Frequency Range (-10 dB) : 58 Hz - 18.5 kHz (EQ in Flat' position) • Dimensions (H x W x D) : 490 mm x 313 mm x 262 mm (19.3 in x 12.3 in x 10.3 in) • Frequency Response (3 dB) : 70 Hz - 17 kHz (EQ in Flat' position) • Coverage Pattern : 100 H x 60 V nominal • Maximum SPL : 121 dB • Net Weight : 7.7 kg (17 lb)
