JBL LSR2328P 8" Active Powered Studio Monitor (EACH)

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

jbl lsr2328p

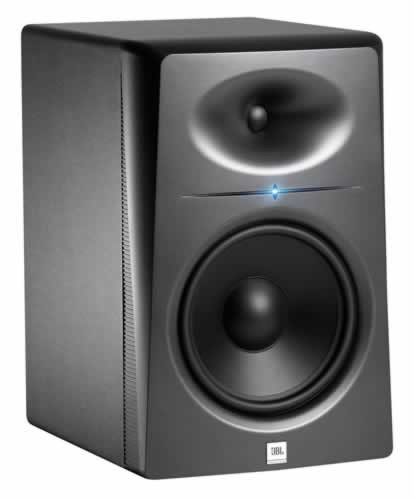

Images may show accessories or configurations not packaged with this item.
8" Two-Way Bi-Amplified Powered Studio Monitor. The LSR2328P Bi-Amplified Two-Way Model includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced input connectors to allow connection of professional mixing consoles, computer audio interfaces, audio visual equipment, and consumer audio systems.

A detented level control allows fine adjustment of individual speaker levels to balance each speaker in the system. Low Frequency and High Frequency Trim controls let you tailor the speaker's response to preference or room acoustics. A neoprene rubber pad on the bottom of the speaker provides acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware Features• XLR, balanced 1/4" TRS, and RCA unbalanced input connectors • Magnetic Shielding • Level Control • 4 threaded mounting points conforming to Industry-standard pattern, 107.9 x 50.8 mm (4.25 x 2.00 in) center to center. M6 metric threads. Specifications• Frequency Range (+/- 3 dB): 44 Hz - 18 kHz • Max SPL Continous: Each / Pair: > 103 dB / > 109 dB • Drivers (LF / HF): 8" 238G / 1" 231H • LF Trim: + 2 dB / -3 dB • HF trim: + 2.5 dB / - 2.5 dB • Input Connectors: Balanced XLR, 1/4" TRS, RCA • Low Frequiency extension (-10 dB): 37 Hz • Amplifier Power: LF/HF: 95 W / 70 W • Max SPKL Peak: Each / Pair: > 117 dB / > 123 dB • Input Sensitivity: 96 dB SPL / 1m • Crossover Frequency: 2.0 kHz 4th-order Acoustic Linkwitz-Riley • Enclosure: 18 mm (3/4 in) MDF • Finish: Metallic Anthracite Pain / Dark Matte Black PVC • Dimensions (H x W x D): 395 mm x 254 mm x 310 mm(15.5 in x 10 in x 12.5 in) • Net Weight: 12.3 kg (27 lb)

Additional Information

Product ConditionNew - On Clearance
