Great mixes start with an accurate monitor. The 4300 Series incorporates JBL's Linear Spatial Reference Technology that matches the exact geometry of the 4300's waveguide design with
its transducers and crossover network to optimizethe frequency response at the mix position. To ensure that this incredibly accurate monitor delivers superb mixes in the room you're working in, JBL's next generation RMC Room Mode Correction system incorporates a powerful analyzer into each speaker that automatically analyzes and compensates for problems caused by low frequency standing waves and proximity to boundaries.Truly putting technology to work, all of this is accomplished by simply plugging the LSR4300 calibration microphone into the speaker and pushing a button. A JBL first, the LSR4300 meter provides a reference of the output from each speaker in the system. The results are a revolution in professional mixing: a calibrated listening environment where the monitors truly work in harmony with the room. This creates a stunningly clear and articulate sound stage enabling reliable mixes that translate faithfully to the outside world.
Engineered for Digital Production
Today's digital production environments are all about precision and control. The LSR4300's powerful DSP platform provides full system networking and communication. Comprehensive LSR4300 Control Center Software provides total control of all system parameters directly from the workstation desktop. High resolution digital and analog inputs, plus a virtual monitor section' with input switching, master volume, mute and solo controls, enhance functionality of the entire system and provide comprehensive control at the mix position. The first professional studio monitor with automatic room compensation, centralized system control, and user-friendly simplicity, the LSR4300 Series is the most elegant and intelligent advancement of technology on behalf of better mixes ever offered in a studio monitor.
The LSR4300 Series includes three models: The LSR4326P bi-amplified system with 6" woofer and 1" dome tweeter; the LSR4328P bi-amplified system with 8" woofer and 1" domed tweeter, and the LSR4312SP, 300 watt, powered 12" subwoofer. Designed for any application from simple stereo mixing to complex surround production, LSR4300 Series systems can be configured with up to eight main speakers in any desired mix of 6" and 8" models and two subwoofers. Since the small studio may lack the space to position surround channels at the optimal physical distance from the mix position, the system is automatically aligned so the sound arriving at the mix position from all speakers is synchronized producing a precise image regardless of each speaker's actual physical placement. A system configured with the LSR4312SP subwoofer provides
professional bass management of the main channels, plus LFE (low frequency effects) input, adjustable crossover points, and powerful features for surround sound production.
Control of System Level, Individual Speaker SOLO, Input Source Selection, high and low frequency EQ settings, and adjustment of all parameters can be made from each speaker's front panel, with the system's infrared remote control, or with LSR4300 Control Center Software. For unprecedented performance and convenience the LSR4300 Series incorporates the new Harman HiQnet protocol that enables a coordinated calibration of all speakers, intelligent configuration of surround sound systems, and synchronized control of all speakers in the system.
Reinforced for Mounting
Reinforced mounting points on each speaker allow convenient positioning and installation of multi-channel surround systems for any mixing application, in any environment.
* Frequency Response
+/-1.5 dB: 50 Hz - 20 kHz
-3 dB: 43 Hz - 22 kHz
-10 dB: 35 Hz - 32 kHz
* SPL / 1m (Continuous/Peak) 106 dB / 112 dB Transducers (LF, HF) 8" 438H / 1" 431G; Self-Shielded Neodymium Motor Structures
* Sensitivity +4 dBU, -10 dBV 96 dB / 1m
* Amplification (LF, HF) 150w/ 70w
* Digital Processing 24 Bit, 96 kHz
* Analog Inputs XLR, 1/4" Balanced, +4 dBU, -10 dBV
* Digital Inputs AES/EBU XLR, S/PDIF RCA
* Data Connections Harman HiQnettm Network, USB, RMC Mic
* Weight 13.1 kg (29 lb)
* Dimensions (H x W x D)
438 mm x 267 mm x 269 mm
17.25 in x 10.5 in x 10.6 in

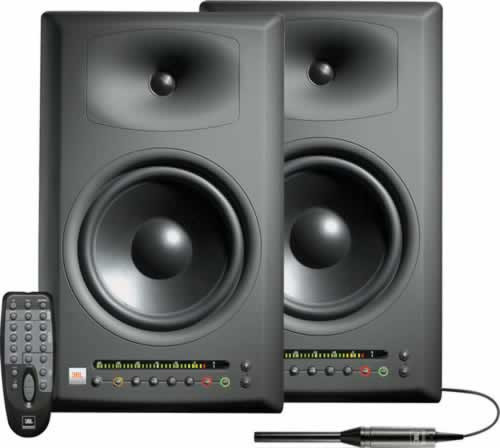

The LSR4328 Pak includes the JBL LSR4300 Accessory Kit, which provides a measurement microphone, a remote control, LSR4300 Control Center software, a USB cable, and batteries.
