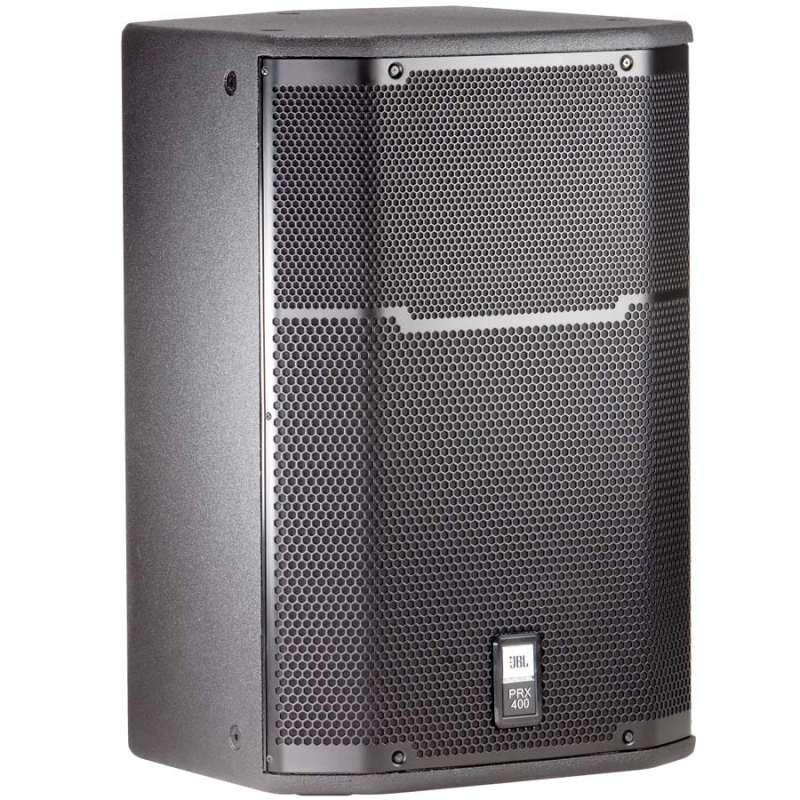

PRX415M is a portable, 15" two-way speaker system designed for either main sound reinforcement or monitoring applications.

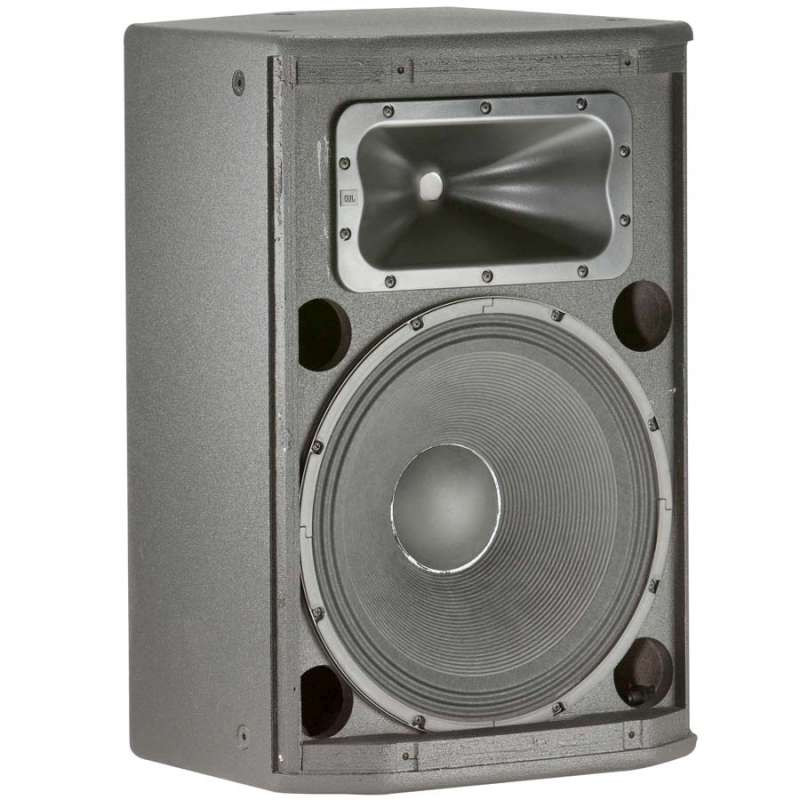

The PRX415M is high-power, light-weight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The PRX415M is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90 x 50 horn.
For use on a tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10 down tilt for optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex' finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
• 15" high-power woofer
• 1" polymer diaphragm compression driver
• 90 x 50 coverage
• Dual-angle pole socket for applications requiring tripod mounting.
• Heavy Duty 16-gauge protective screen-backed steel grille
• Tough DuraFlex' enclosure finish
• Reinforcement of music and speech in entertainment, live or pre-recorded applications
• Live performance stage monitoring
• High-performance satellite speaker for use with subwoofers
• Frequency Range (-10 dB): 55 Hz - 19 kHz
• Frequency Response (3 dB): 66 Hz - 16 kHz
• Coverage Pattern: 90 x 50 nominal
• Crossover Mode: Passive
• Crossover Frequency: 2.2 kHz
• Power Rating: 300 W/ 600 W/ 1200 W, 2 hrs (Continuous/Program/Peak)
• Maximum SPL: 122 dB SPL continuous (128 dB SPL peak)
• System Sensitivity (1w @ 1m): 98 dB SPL
• LF Driver: 1 x JBL M115-8A 380 mm (15 in) Differential Drive woofer
• HF Driver: 1 x JBL 2414H-C 25 mm (1 in) polymer diaphragm, compression driver
• Nominal Impedance: 8 ohms
• Enclosure: Trapezoidal, 18 mm, birch/poplar plywood
• Suspension / Mounting: Dual angle (0 or -10) 35 mm pole socket
• Transport: 2 x die-cast handles with backing cup
• Finish: Black DuraFlex' finish
• Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing.
• Input Connectors: Neutrik Speakon NL-2 / " combination (x2)
• Dimensions (H x W x D): 650 mm x 429 mm x 457 mm (25.6 in x 16.9 in x 18 in)
• Net Weight: 21.0 kg (46 lb)
• Optional Accessories: SS2-BK: Tripod speaker stand ; SS4-BK: Satellite speaker stand
