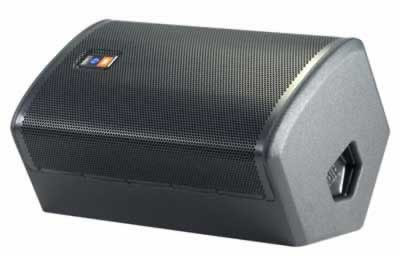

JBL PRX512M Powered 12" 2-way Stage Monitor (Open Box)

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

jbl prx512m   *openbox
For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

PRX512M is the most compact and
versatile speaker in the PRX500 Series. It
has been designed to deliver the most
performance for its weight and size as both
a stage monitor and a front of house main
PA. Two user selectable EQ settings are
provided to optimize the system for either
application. With a dual socket pole mount
the PRX512M is a perfect match with a
PRX518S subwoofer, offering a high
performance self-powered sub/sat system.

The PRX512M is a self-powered,
lightweight two-way multipurpose
loudspeaker system. The PRX512M is
comprised of a 262F 305 mm (12")
Differential Drive woofer, a 2408H 37.5 mm
(1.5 in) annular polymer diaphragm,
neodymium compression driver mounted to
a 70 by 70 horn, all driven by a multichannel
Crown International Class-D digital
power amplifier. A propriety DSP chip is at
the core of a fully featured input section,
providing user selectable system EQ,
protection, input sensitivity selection, crossover
functionality, dynamic limiting and
discrete component optimization.

The enclosure is constructed of quality
plywood and coated in JBL's rugged
DuraFlex' finish. An integrated dual angle
pole mount on the bottom enables easy
deployment and aiming. The CNC-machined
steel grille wraps around the sides of the
enclosure so there are no protruding lips on
the front of the box to create acoustical
interference. The grille is also lined with an
acoustically transparent foam to provide
additional driver protection.

The amplifier input panel offers XLR or
inch jack compatibility and a sensitivity
switch provides extra flexibility, making it
possible to connect literally any sound
source without using a mixer. Signal present
and overload lights indicate the system
status and assist in setting the optimum
level, via the level control knob.

Dual angle enclosure for both front-ofhouse
and floor monitor applications
Optimized EQ for monitor or front-ofhouse
JBL Differential Drive woofer
1.5" annual polymer diaphragm
compression driver
Class-D, Crown digital amplifier:
lightweight, compact, multi channel,
DSP input section, crossover, dynamic
limiting, component optimization,
selectable system EQ
Professional XLR line and "
Mic/Instrument inputs, with loop through.
Illuminated logo for clear Power-On
Dual angle pole mount socket
DuraFlex' coated plywood construction

Additional Information

Product ConditionOpen Box
